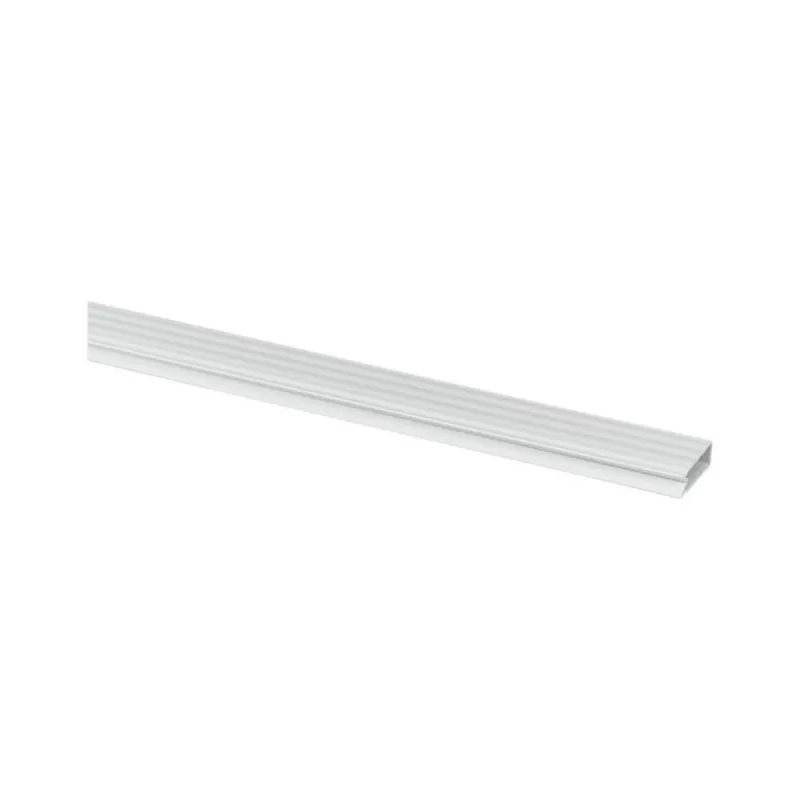

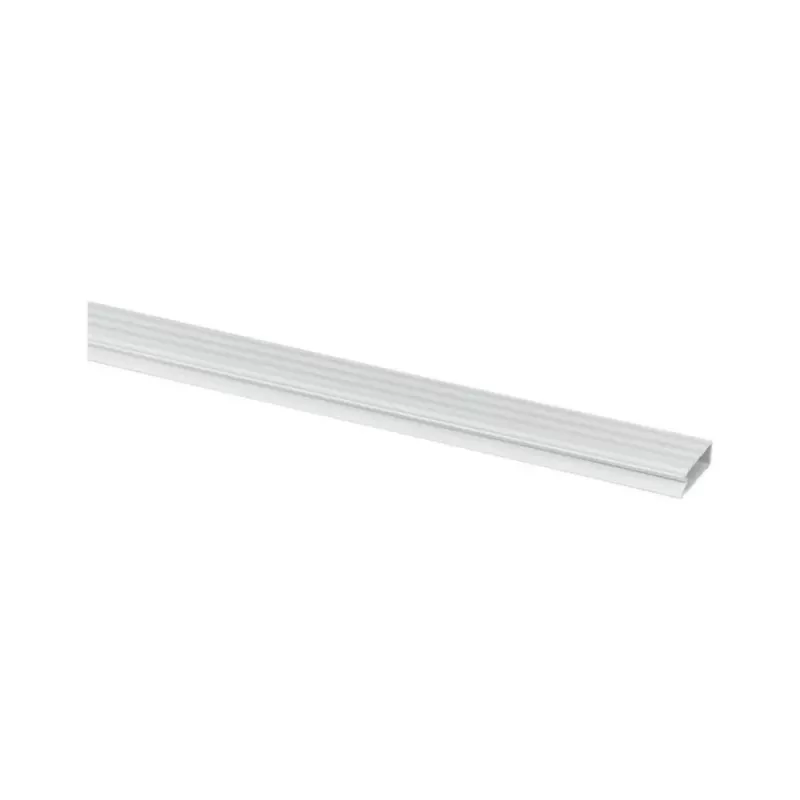

Eaton BBC-FL10 kiskon päätytulppa, valkoinen, 1 kpl 107174

Protect and insulate the ends of busbars in low-voltage switchgear with the Eaton BBC-FL10 busbar end cap. This white thermoplastic cap is halogen-free and UV-resistant, designed for snap-on installation in xEnergy Light systems.

Overview

The Eaton BBC-FL10 is a busbar end cap from the BBC-FL series, part of the xEnergy Light range. It provides insulation and protection at the end of busbars, ensuring safety in distribution boards and control panels. The cap is made of halogen-free thermoplastic, is white in colour, and is supplied as a single piece.

What stands out

• Halogen-free thermoplastic material for enhanced safety
• Snap-on mounting for quick and secure installation
• UV and chemical resistant for durability
• Self-extinguishing flammability rating (UL 94 V-0 equivalent)
• Suitable for systems up to 1000 V AC / 1500 V DC

Technical details

• Product type: Busbar end cap
• Series: BBC-FL (xEnergy Light)
• Colour: White
• Material: Thermoplastic (halogen-free)
• Mounting type: Snap-on / clip-on
• Application: Low-voltage switchgear, distribution boards, control panels
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +80°C
• Quantity per pack: 1 piece
• Installation position: End of busbar
• Resistance: UV-resistant, chemical-resistant
• Voltage rating: Suitable for systems up to 1000 V AC / 1500 V DC

Our verdict

A reliable and safe solution for terminating busbars in Eaton xEnergy Light assemblies, offering halogen-free insulation and easy installation.
