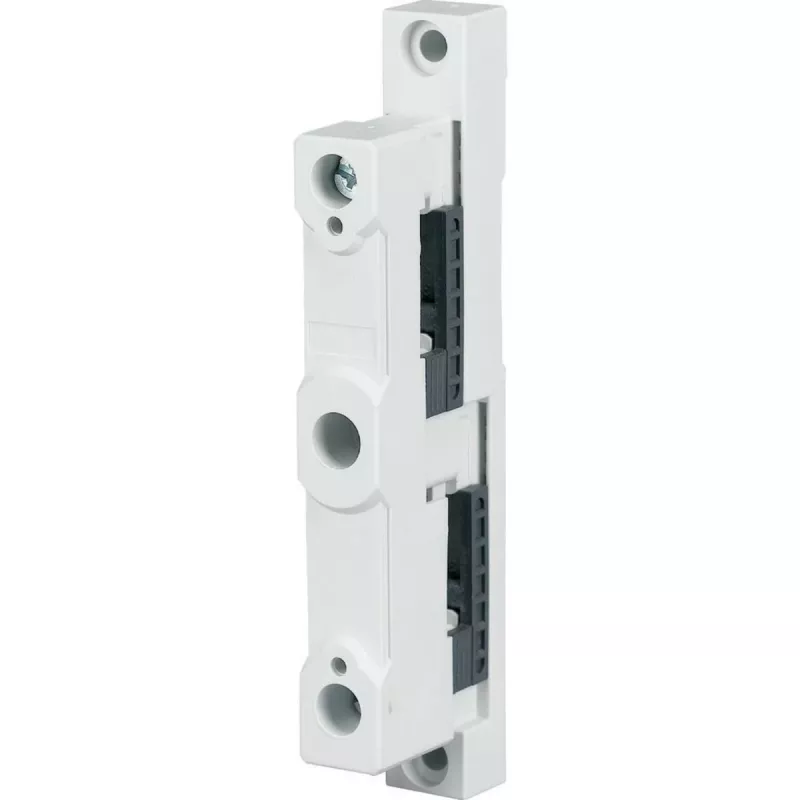

Eaton BBS-2/FL kiskopidike litteille kiskoille, 2-napainen, harmaa 107069

Busbar support for flat busbars, 2-pole, from Eaton's xEnergy system. Provides secure mounting of flat busbars with widths from 12 to 30 mm and thicknesses from 5 to 10 mm on mounting plates or support rails.

Advantages

Made of halogen-free polyamide (PA) in grey (RAL 7035) with flammability rating UL 94 V-0. Supports rated insulation voltage up to 1000 V AC / 1500 V DC and rated impulse withstand voltage of 8 kV.

Suitable for

• Flat busbars 12–30 mm wide, 5–10 mm thick
• Mounting on mounting plate or support rail
• Use in Eaton xEnergy distribution systems

Key specifications

• Product type: Busbar support
• Number of poles: 2
• Material: Polyamide (PA), halogen-free
• Colour: Grey (RAL 7035)
• Flammability rating: UL 94 V-0
• Rated insulation voltage: 1000 V AC / 1500 V DC
• Rated impulse withstand voltage: 8 kV
• Operating temperature range: -25°C to +70°C
• Degree of protection: IP20 (when installed in enclosure)
• Standards: IEC/EN 61439-1

Recommendations

For use in Eaton xEnergy low-voltage switchgear and controlgear assemblies. Verify busbar dimensions before ordering.
