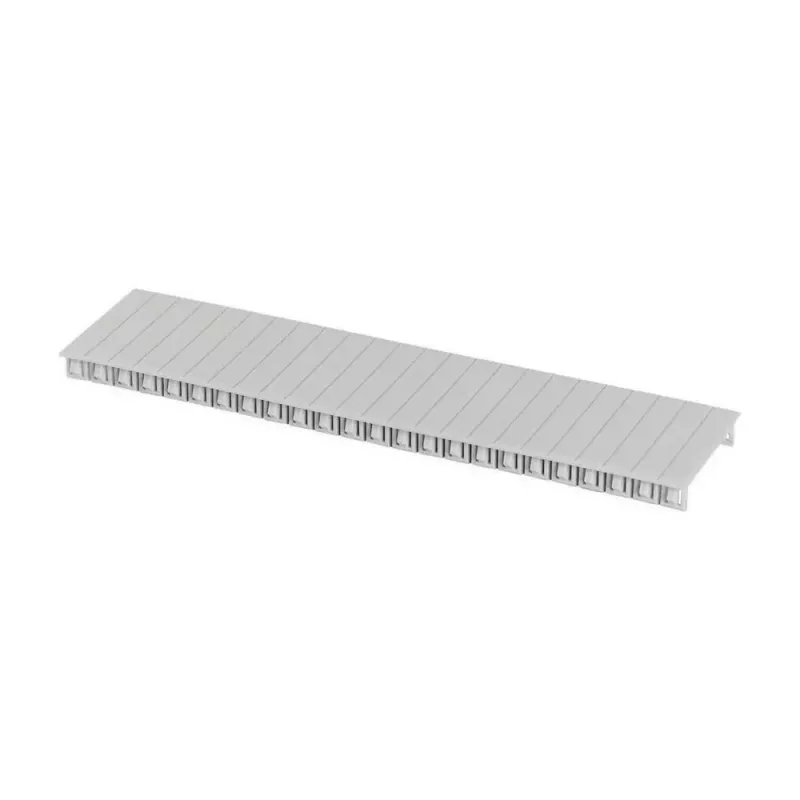

Eaton BS-12MB-GY sokealevy, 12 moduulia, harmaa, karkeauritettu 178979

Unused DIN rail slots in distribution boards and consumer units can expose live parts, collect dust, and compromise the clean look of an installation. The Eaton BS-12MB-GY blanking plate closes a 12-module opening with a snap-on grey cover, keeping the enclosure tidy and reducing the risk of accidental contact.

Who is it for

Electricians and panel builders who need a quick, reliable way to cover empty spaces in standard DIN rail consumer units or distribution boards. It suits both new installations and retrofits where a circuit has been removed or reserved for future use.

Main features

• Covers 12 TE (module units) in one piece, matching standard DIN 43880 cutouts.
• Snap-on mounting without tools for fast installation.
• Coarse-ribbed grey surface blends with typical enclosure fronts.
• Made from halogen-free thermoplastic.

Specifications

• Product type: Blanking plate
• Number of modules: 12 TE
• Colour: Grey
• Surface finish: Coarse-ribbed
• Material: Thermoplastic
• Mounting type: Snap-on
• Nominal width: 216 mm
• Nominal height: 90 mm
• Nominal depth: 6 mm
• Halogen-free: Yes
• Operating temperature range: -25°C to +70°C
• Fire resistance: Self-extinguishing

Tips

Check the total empty module width before ordering: one BS-12MB-GY covers exactly 12 TE. For smaller gaps, Eaton offers blanking plates in other module counts.
