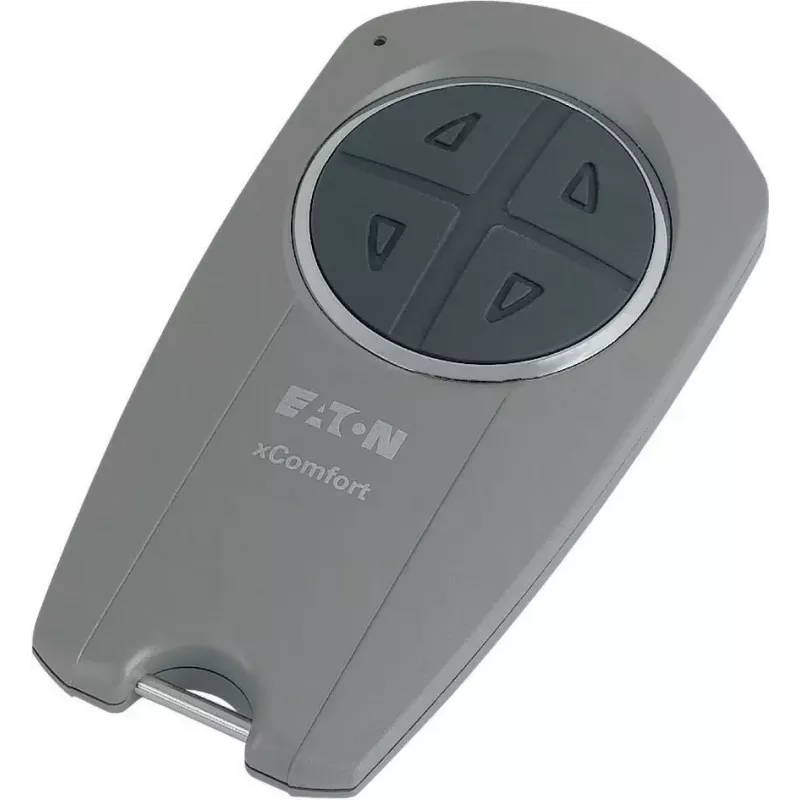

Eaton CHSZ-02/02 xComfort RF radioseinäpainike, 2-kanava, harmaa 109383

Traditional wired switches limit where you can control lights and blinds. The Eaton CHSZ-02/02 removes that constraint by providing a battery-powered, wireless push button that can be placed anywhere within range of the xComfort system, without chasing walls or pulling cables.

Who is it for

Homeowners and building managers using the Eaton xComfort smart home system who need an additional control point for lighting, dimming, or blind control. It suits retrofits where wiring is impractical, and renters who cannot modify existing electrical installations.

Main features

• Two independent channels, each with a dedicated button for direct control of two loads or scenes.
• RF wireless communication at 868.3 MHz, compatible with Eaton xComfort receivers and actuators.
• Powered by a CR2032 coin cell battery with up to five years of typical life.
• Surface-mounted design with a slim 15 mm profile; no flush-mount box required.
• Grey plastic housing blends with modern interiors.

Specifications

• Number of channels: 2
• Number of buttons: 2
• Wireless technology: RF
• Frequency: 868.3 MHz
• Power source: Battery (CR2032)
• Typical battery life: Up to 5 years
• Mounting type: Surface-mounted
• Housing material: Plastic
• Dimensions (W x H x D): 80 x 80 x 15 mm
• Operating temperature: -5°C to +45°C
• Protection class: IP20
• Indoor range: Up to 30 m
• Outdoor range: Up to 100 m (line of sight)
• Functions: Switching, dimming, blind control, scene recall
• System compatibility: Eaton xComfort

Tips

Pair the push button with an xComfort receiver or actuator using the system's configuration tool. For best range, avoid mounting on metal surfaces or inside metal enclosures. Replace the CR2032 battery when the LED indicator fails to illuminate on button press.
