Eaton CS-43/150 seinäkotelo, harmaa (RAL 7035), 400x300x150 mm, IP55, teräs 111681

The Eaton CS-43/150 stands out as a compact wall-mounted enclosure that pairs a space-saving 150 mm depth with a robust IP55-rated steel body. It is built for industrial and automation environments where protection from dust and water jets is essential, yet a full-size cabinet would be impractical.

Highlights

• Wall-mounted design with single hinged door and 120° opening angle
• Powder-coated steel sheet, 1.25 mm thick, in light grey RAL 7035
• IP55 protection against dust and low-pressure water jets
• Quarter-turn lock with double-bit key for secure access

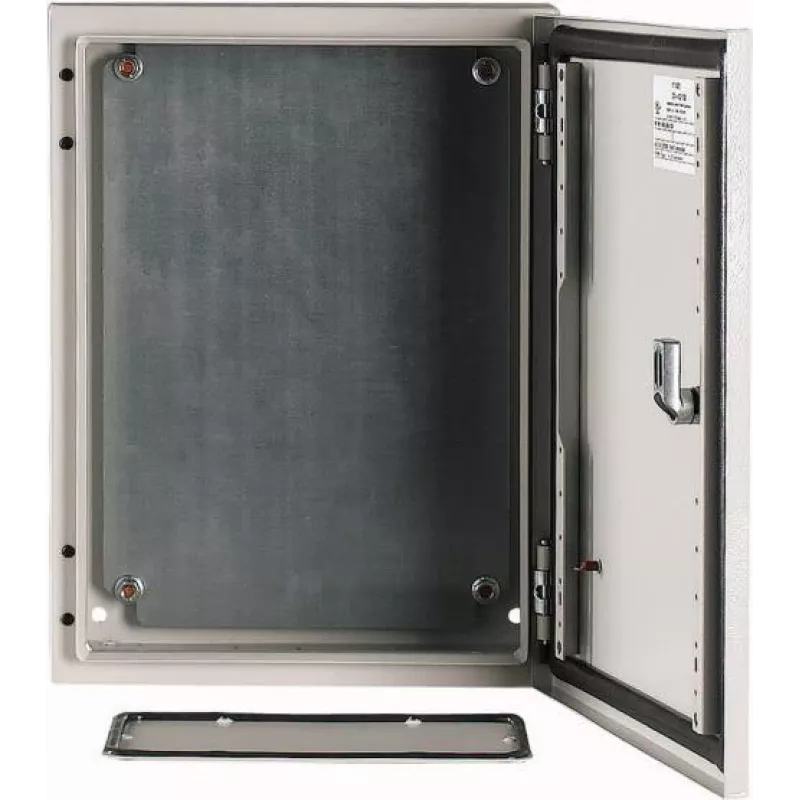

• Includes mounting plate for internal component installation
• Cable entry via gland plate on top and bottom

In daily use

With external dimensions of 400 x 300 x 150 mm, the CS-43/150 offers enough room for DIN rail components, terminals, and small controllers. The included mounting plate simplifies installation, while the top and bottom gland plates allow clean cable routing. The light grey finish blends into control rooms and machinery, and the quarter-turn lock keeps unauthorized access out.

Full specifications

• Material: Steel sheet, powder-coated
• Colour: Grey (RAL 7035)
• Protection rating: IP55
• External height: 400 mm
• External width: 300 mm
• External depth: 150 mm
• Door type: Single hinged door, opening angle 120°
• Lock type: Quarter-turn lock with double-bit key
• Mounting type: Wall-mounted
• Internal mounting: Mounting plate included
• Cable entry: Gland plate (top/bottom)
• Material thickness: 1.25 mm
• Application: Industrial, electrical, automation

Final note

A practical enclosure for protecting electrical controls in demanding environments, without taking up valuable floor space.
