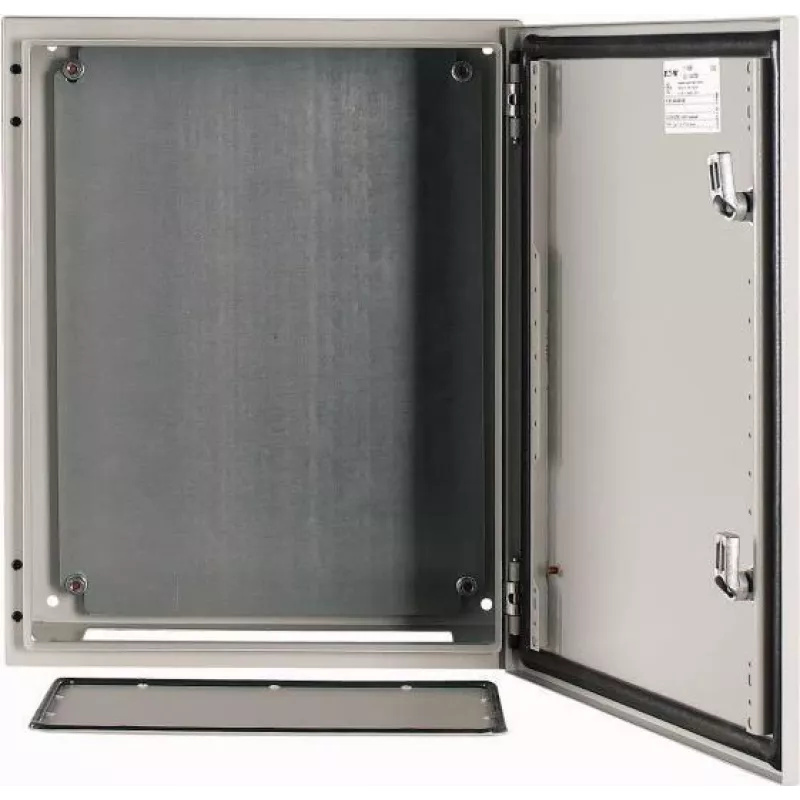

Eaton CS-54/200 seinäkiinnitteinen räkki hopea 12U 540x540x200 mm 111689

Network technicians and IT installers use the Eaton CS-54/200 to mount patch panels, switches, and small network equipment directly on the wall in offices, retail spaces, and telecom rooms. Its compact 12U design fits where floor space is limited.

Key specifications

• 12U wall-mount enclosure for 19-inch equipment
• External dimensions: 540 mm height, 540 mm width, 200 mm depth
• Steel sheet construction with light grey powder coating (RAL 7035)
• Lockable steel door with reversible hinge
• Pre-punched cable entry openings on top and bottom
• Two depth-adjustable 19-inch profile rails
• Static load capacity: 20 kg
• Passive ventilation slots for airflow

Why choose it

The welded steel frame provides a stable, secure housing for active and passive components. A cylinder lock with key prevents unauthorized access, while the reversible door adapts to different room layouts.

Ideal use cases

• Wall-mounted network distribution in small offices
• Telecommunications termination points
• Security and access control system enclosures

Good to know

Mounting hardware is not included; use appropriate wall anchors for the installation surface. The enclosure is rated IP20 for indoor use only.
