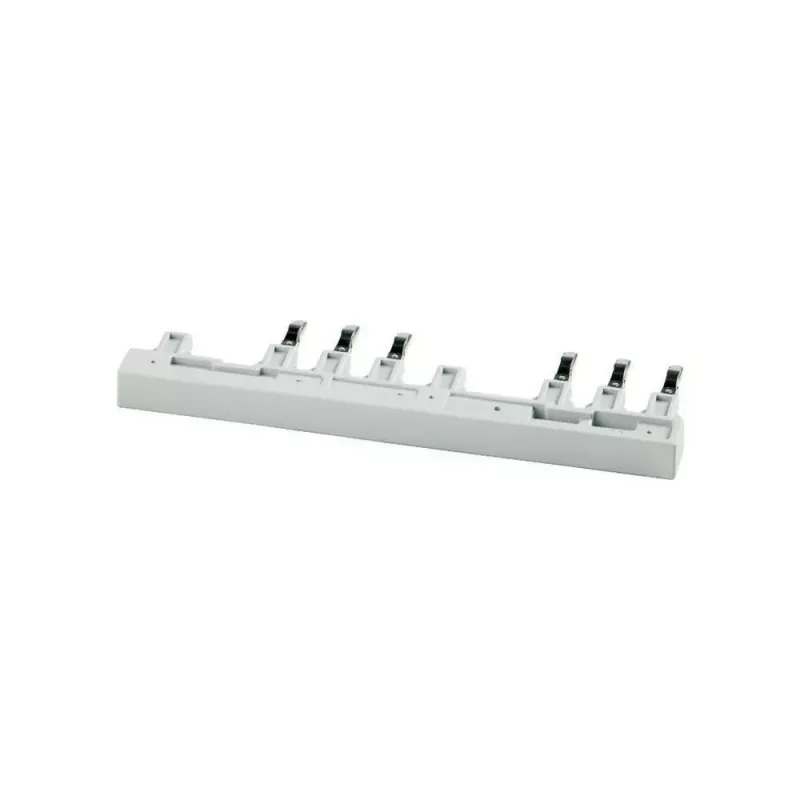

Eaton DILM12-XR käänninjohtosarja 110099

The Eaton DILM12-XR is a reversing wiring kit engineered for direct inter-contactor connection, enabling compact and reliable reversing motor starters without additional wiring. It is compatible with Eaton DILM7, DILM9, DILM12, and DILM15 contactors, making it a versatile choice for industrial motor control applications.

Highlights

• Direct inter-contactor connection for reversing starters
• Compatible with DILM7, DILM9, DILM12, DILM15 contactors
• Rated operational current up to 15 A
• Rated operational voltage up to 690 V AC
• Insulation voltage 690 V
• Impulse withstand voltage 6 kV

In daily use

This kit simplifies the assembly of reversing contactor combinations, reducing wiring effort and panel space. Its high-grade insulating plastic and conductive metal construction ensure durability in demanding industrial environments.

Full specifications

• Accessory Type: Reversing Wiring Kit
• Product Series: Eaton DILM
• Compatible Contactor Sizes: DILM7, DILM9, DILM12, DILM15
• Function: For creating reversing motor starters
• Application: Industrial motor control, automation
• Mounting Type: Direct inter-contactor connection
• Rated Operational Current (Ie): Up to 15 A (depending on contactor)
• Rated Operational Voltage (Ue): Up to 690 V AC
• Insulation Voltage (Ui): 690 V
• Impulse Withstand Voltage (Uimp): 6 kV
• Standards: IEC/EN 60947
• Material: High-grade insulating plastic, conductive metal
• Color: Grey
• Units per Pack: 1

Final note

A practical solution for reversing motor control, combining compatibility and robust construction.
