Eaton F3A-2K-M50/16-2 EP-501503 laippalevy IP55 eristysaine EP

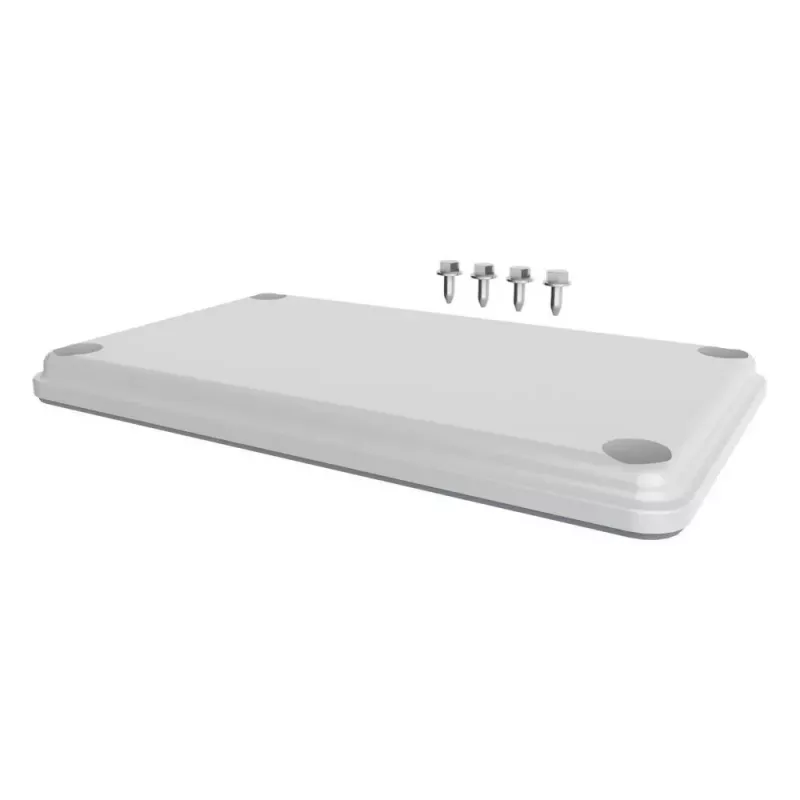

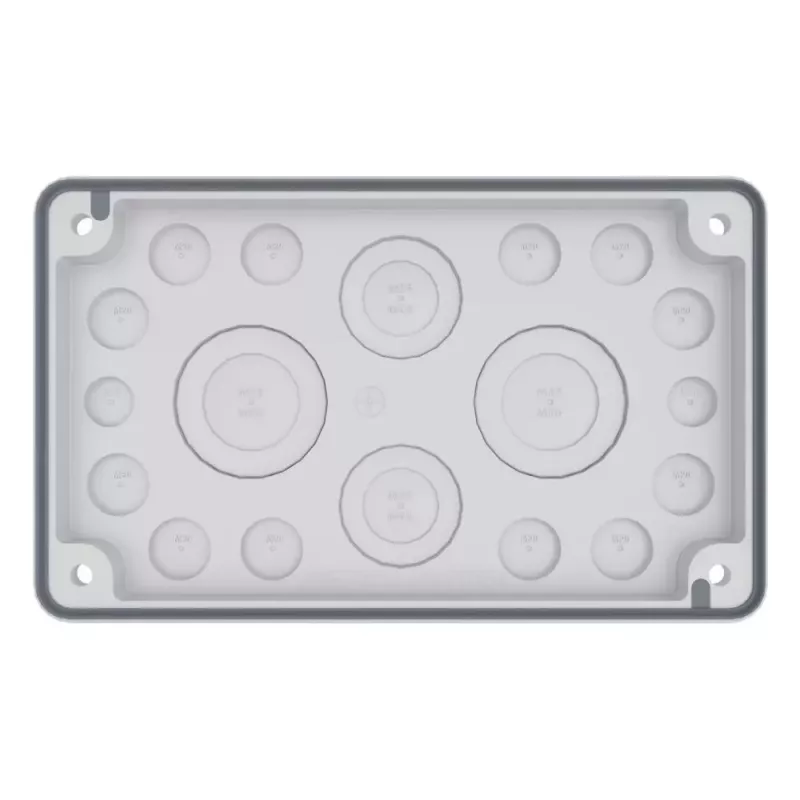

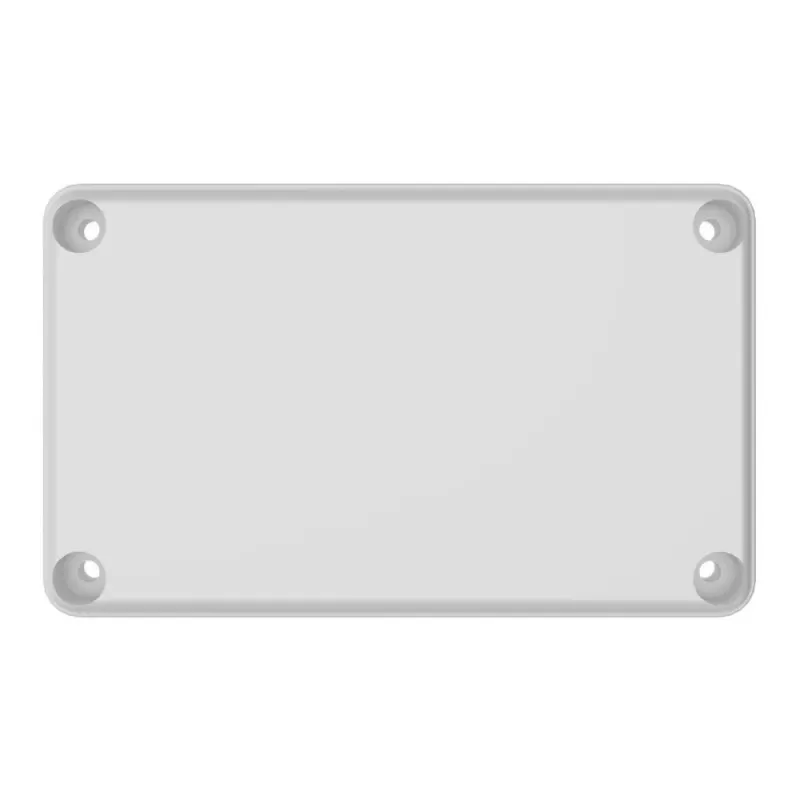

The Eaton F3A-2K-M50/16-2 flange plate offers a dual cable entry solution for electrical enclosures, combining an M50 and an M16 opening in a single insulating component. Unlike basic blanking plates, this plate provides pre-formed entries for cable glands, simplifying installation while maintaining the enclosure's IP55 protection against dust and water jets.

Highlights

• Two cable entries: M50 and M16
• Made from insulating material (EP) for electrical isolation
• IP55 rated for protection against dust and water jets
• Flange mounting for secure attachment to enclosure
• Compatible with Eaton F3A series enclosures

In daily use

This flange plate is mounted onto the enclosure wall, providing a stable platform for cable glands. The insulating material prevents electrical continuity between the cable armor and the enclosure, enhancing safety. Its IP55 rating ensures reliable performance in indoor and outdoor environments where occasional water jets may occur.

Full specifications

• Product Type: Flange Plate
• Material: Insulating Material (EP)
• IP Protection Rating: IP55
• Series: F3A-2K
• Number of Cable Entries: 2
• Cable Entry Size 1: M50
• Cable Entry Size 2: M16
• Mounting Type: Flange mounting
• Colour: Grey
• Manufacturer Internal Code: EP-501503

Final note

A practical accessory for Eaton enclosures, offering dual cable entry and insulation in one component.
