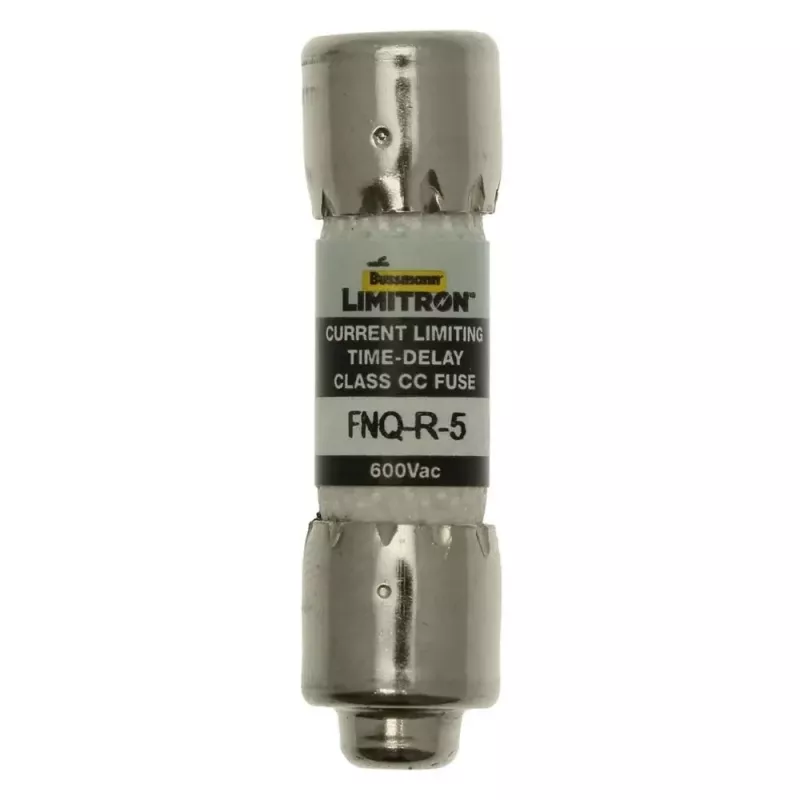

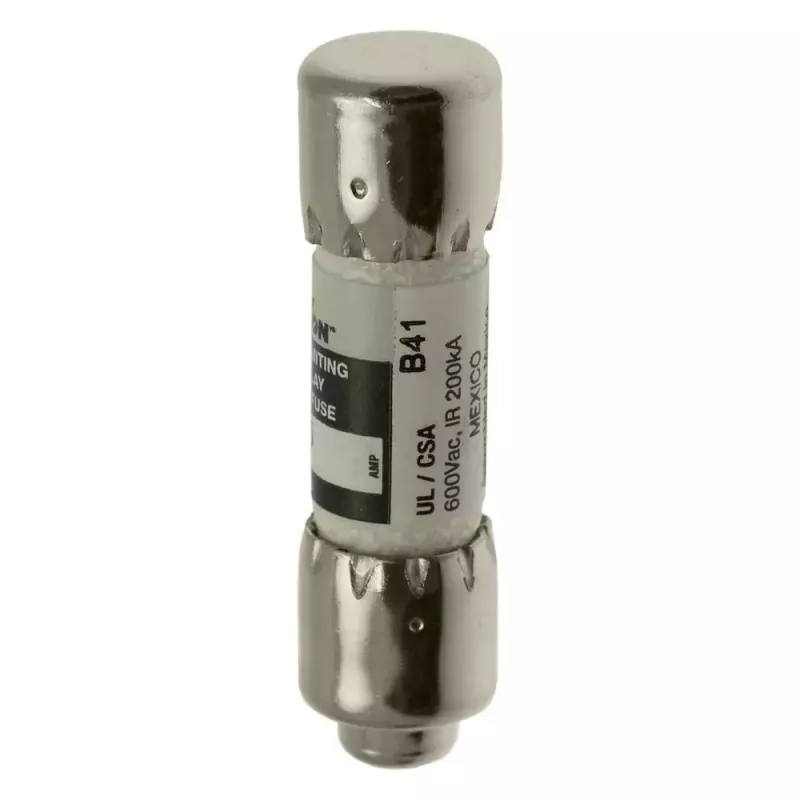

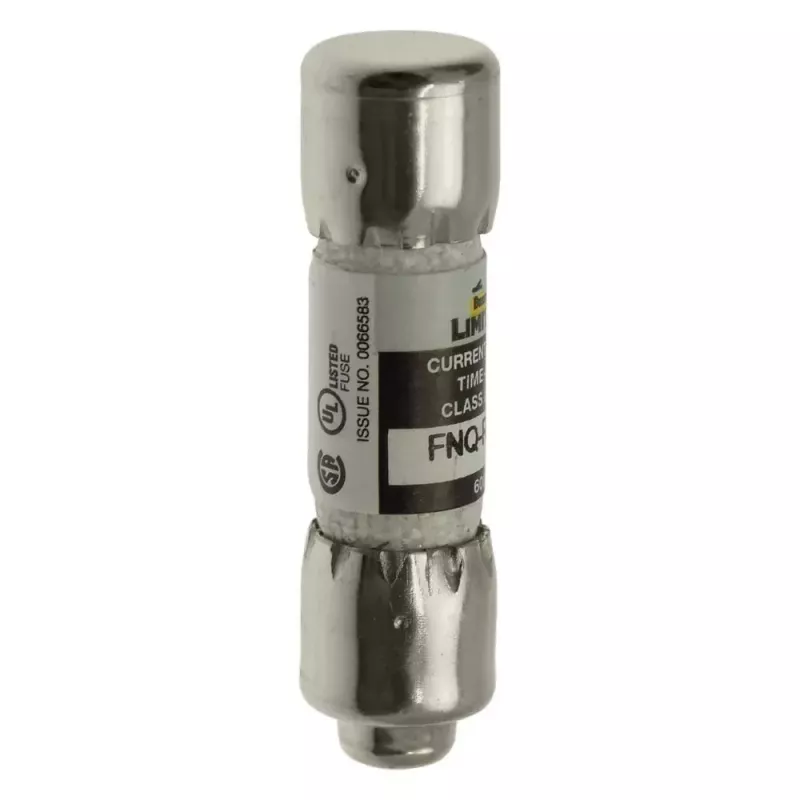

Eaton FNQ-R-5 hidas sulake, 5 A, 600 V AC, Class CC, 10 kpl:n pakkaus

With a 200 kA interrupting rating at 600 V AC, the Eaton FNQ-R-5 time-delay fuse delivers robust protection for branch circuits and control circuits. This Class CC fuse is rated for 5 A and 600 V AC, making it suitable for a wide range of industrial applications.

Overview

The FNQ-R-5 is a cylindrical, non-indicating fuse designed for holder mounting. Its time-delay characteristic allows temporary inrush currents without nuisance opening, while still providing reliable protection against sustained overloads and short circuits. The melamine body and ferrule terminals ensure durability and secure electrical connections.

What stands out

• High interrupting rating: 200 kA AC and 20 kA DC
• Time-delay (slow-blow) characteristic prevents nuisance tripping
• Compact 10.3 mm x 38.1 mm size fits standard Class CC fuse holders
• UL Listed and CSA Certified for safety compliance
• Pack of 10 fuses for convenient replacement

Technical details

• Current rating: 5 A
• Voltage rating: 600 V AC / 300 V DC
• Fuse class: CC
• Interrupting rating: 200 kA AC, 20 kA DC
• Body material: Melamine
• Terminal type: Ferrule
• Dimensions: 10.3 mm diameter x 38.1 mm length
• Operating temperature: -40°C to +85°C
• RoHS compliant

Our verdict

The Eaton FNQ-R-5 is a dependable choice for protecting sensitive equipment in industrial control panels and branch circuits. Its high interrupting capacity and time-delay response make it a versatile and safe fuse for demanding environments.
