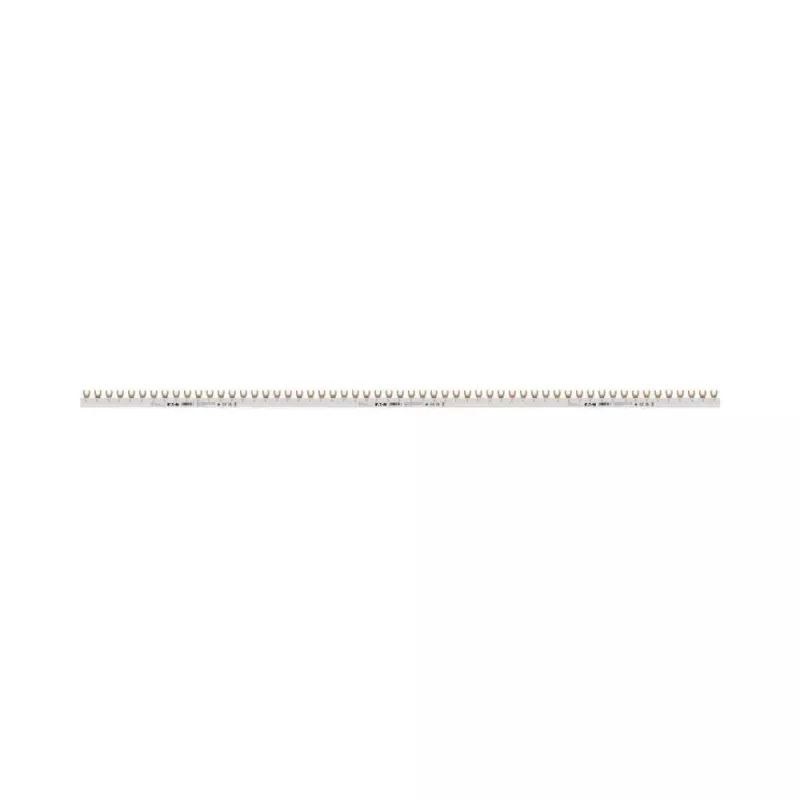

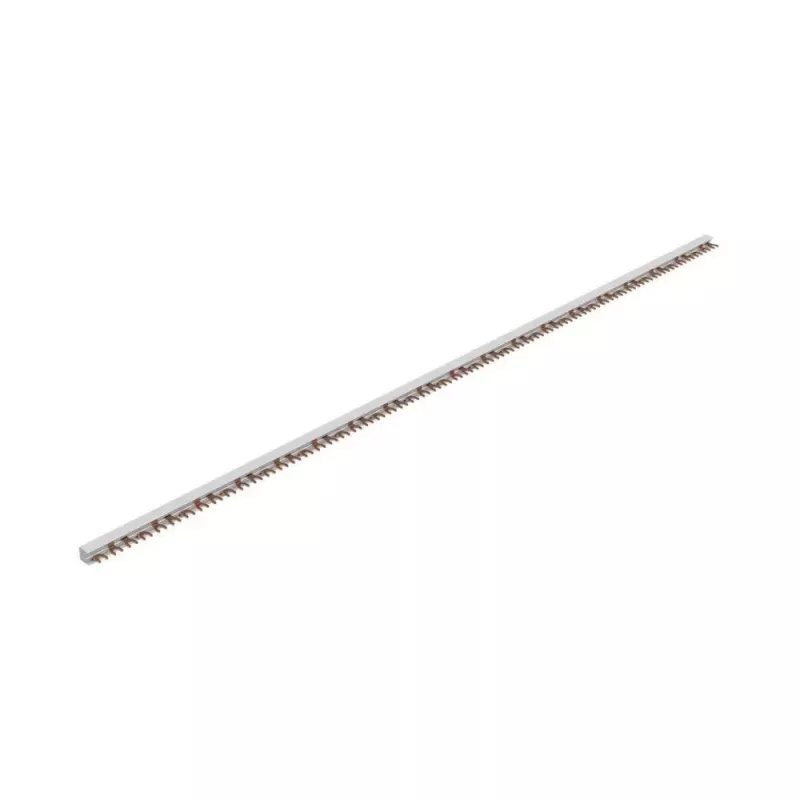

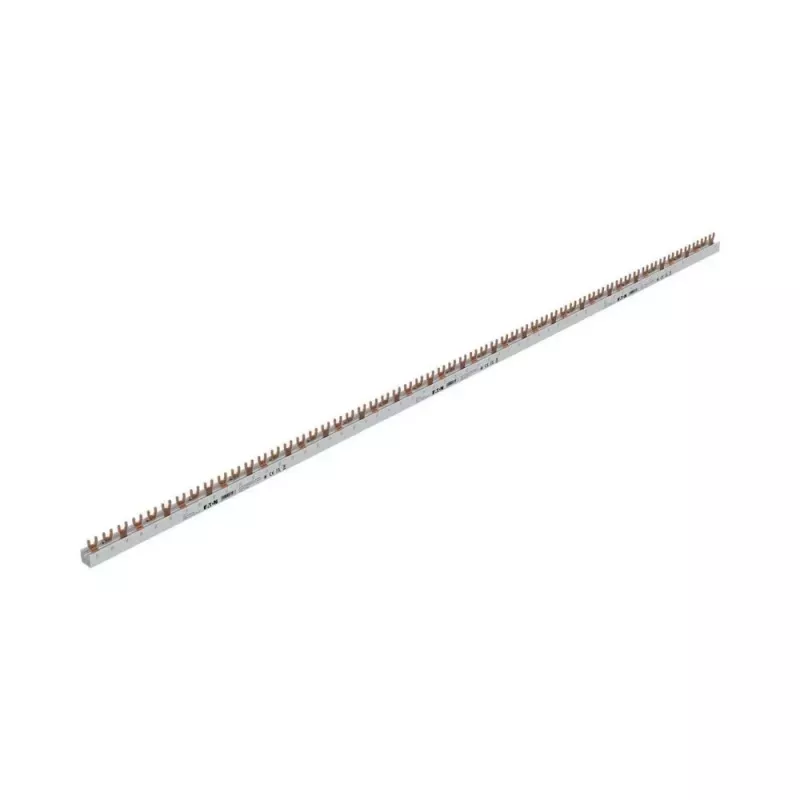

Eaton GVK-10/3P-3TE 3-vaiheinen haarakiskokokoelma 63A 400V 10 moduulia (EP-501073)

In electrical distribution panels, connecting multiple modular devices such as miniature circuit breakers and residual current devices can be time-consuming and error-prone when using individual wiring. The Eaton GVK-10/3P-3TE fork busbar solves this by providing a single, fully insulated 3-phase connection for up to 10 modules, ensuring reliable power distribution with minimal installation effort.

Who is it for

Electricians and panel builders who install Eaton xPole series devices on DIN rails and need a fast, safe, and tidy way to link three-phase circuits.

Main features

• 3-phase fork busbar for DIN rail mountable devices
• Connects up to 10 modules (10 x 1TE pitch)
• Rated current: 63 A, rated voltage: 400 V AC
• Conductor cross-section: 10 mm², copper material
• Fully insulated plastic housing, grey colour
• Compatible with Eaton xPole series circuit breakers and RCDs

Specifications

• Type: Fork busbar
• Number of phases: 3
• Number of poles: 3
• Number of modules connectable: 10
• Rated current (In): 63 A
• Rated voltage (Ue): 400 V AC
• Conductor cross-section: 10 mm²
• Module pitch: 18 mm
• Busbar connection type: Fork (pin)
• Insulation type: Fully insulated
• Conductor material: Copper
• Insulation material: Plastic
• Compatibility: Eaton xPole series devices
• Mounting type: For DIN rail mountable devices
• Application: Power distribution in electrical panels
• Colour: Grey
• Series: GVK series

Tips

Ensure the busbar is compatible with the specific Eaton xPole devices you are using. The fork connection allows for easy installation without removing the devices from the DIN rail.
