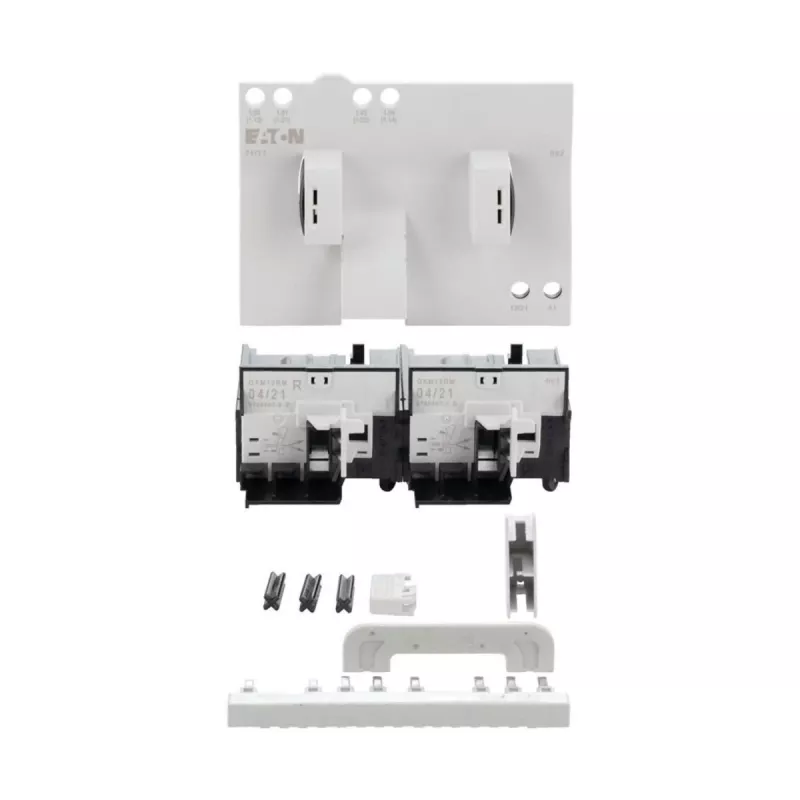

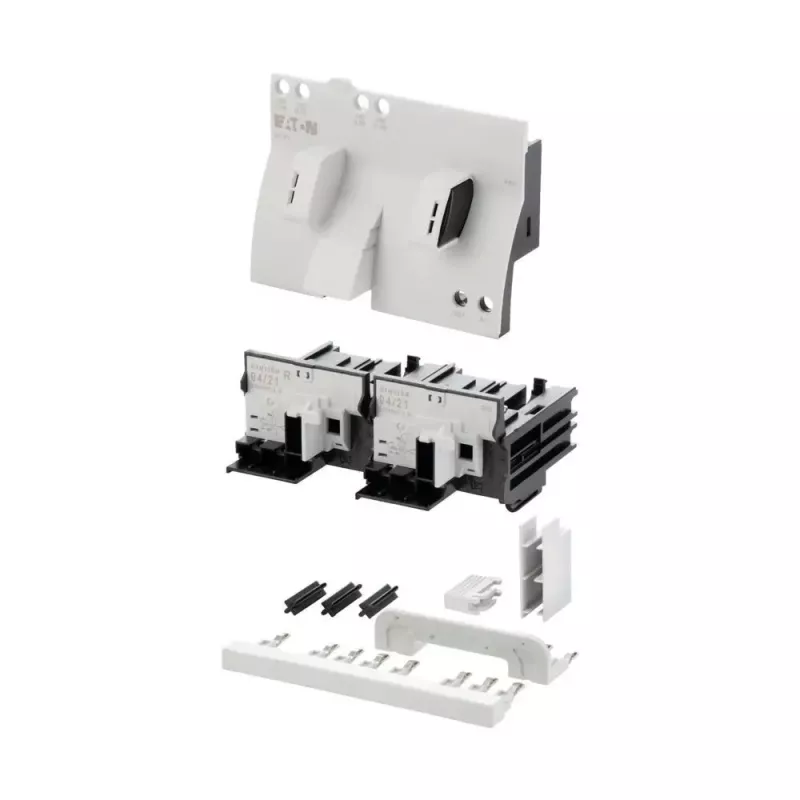

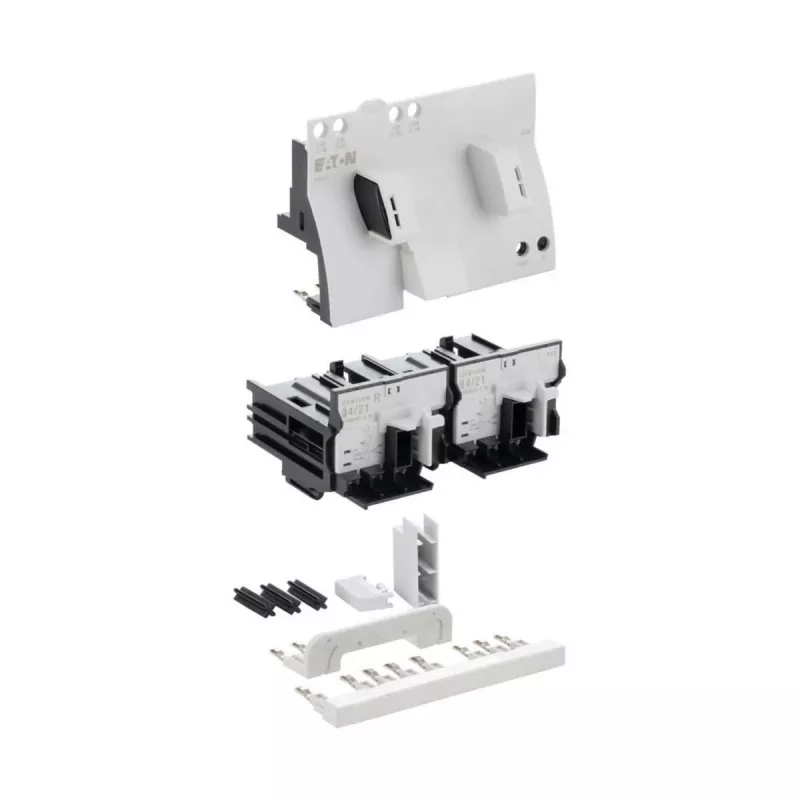

EATON johdotussarja suunnanvaihtokäynnistimelle PKZM0-XRM12 (283185)

Wiring set for reversing starter combinations, enabling direct electrical connection between the Eaton PKZM0 motor protective circuit breaker and XRM12 reversing starter. This pre-wired assembly simplifies installation and ensures reliable power circuit connectivity in industrial control applications.

Advantages

Direct plug-in design reduces wiring time and eliminates connection errors. The set is engineered for three-phase power circuits, supporting operational currents up to 32 A and voltages up to 690 V AC. Copper conductors and high-grade plastic insulation provide durable performance in demanding environments.

Suitable for

• Industrial control panels requiring reversing motor starters
• Combinations of Eaton PKZM0 circuit breakers and XRM12 reversing starters
• Three-phase motor control applications up to 32 A and 690 V AC

Key specifications

• Product type: Wiring set for reversing starter combination
• Compatible components: Eaton PKZM0 series, XRM12 series
• Connection method: Pre-wired / direct plug-in
• Number of phases: 3-phase
• Rated operational current: Up to 32 A
• Rated operational voltage: Up to 690 V AC
• Conductor material: Copper
• Insulation material: High-grade plastic
• Mounting type: Direct mounting between components

Recommendations

For streamlined assembly of reversing starter combinations, this wiring set provides a dependable connection between the PKZM0 protective breaker and XRM12 reversing starter, reducing installation effort and enhancing circuit integrity.
