Eaton LS-11/RL rajakytkin, rullavipu, 1NO+1NC, musta/keltainen 266111

With a mechanical life exceeding 10 million operations, the Eaton LS-11/RL limit switch delivers dependable position sensing in demanding industrial environments. Its snap action switching principle and roller lever actuator provide precise, repeatable control.

Overview

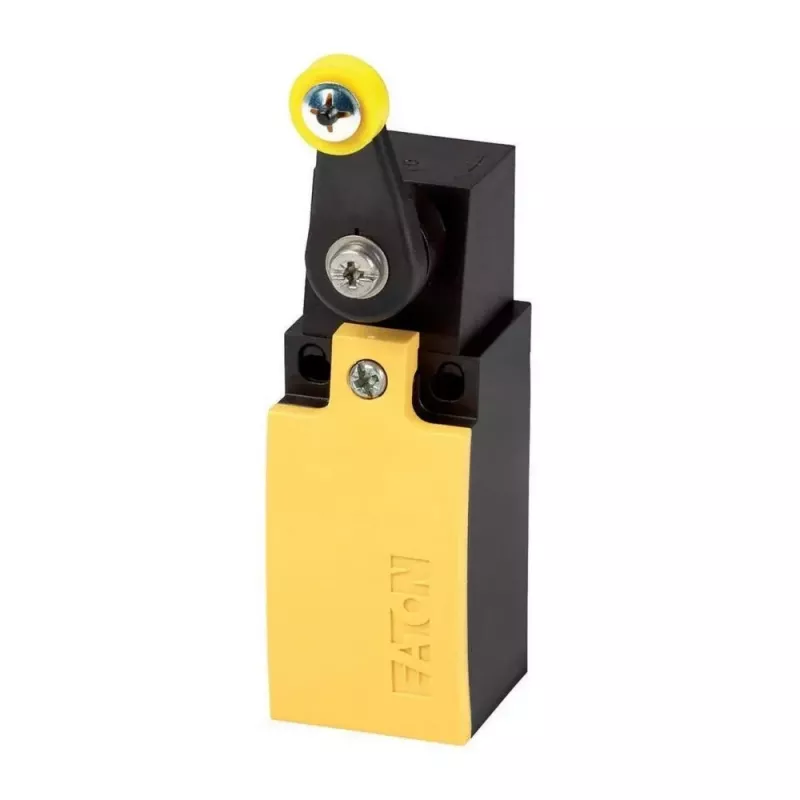

The LS-11/RL from Eaton's LS series is a robust limit switch designed for machine and plant engineering. It features a roller lever actuator, 1 normally open (NO) and 1 normally closed (NC) contact, and screw terminals for secure wiring. The switch is housed in insulated plastic with a black body and yellow actuator for high visibility.

What stands out

• High mechanical endurance: > 10 million operations
• Snap action switching for fast, reliable contact changeover
• Rated operational current up to 6 A (AC-15, 230 V AC)
• Wide operating temperature range: -25°C to +70°C
• IP66, IP67, IP69 protection for harsh environments

Technical details

• Product type: Limit switch
• Actuator type: Roller lever
• Contact configuration: 1 NO + 1 NC
• Switching principle: Snap action
• Housing material: Insulated plastic
• Connection type: Screw terminals
• Cable entry: M20 x 1.5
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15): 6 A at 230 V AC
• Rated operational current (DC-13): 3 A at 24 V DC
• Operating temperature: -25°C to +70°C
• Mechanical life: > 10 million operations
• Electrical life: > 0.1 million operations

Our verdict

The Eaton LS-11/RL is a durable and precise limit switch, ideal for applications requiring high mechanical endurance and reliable switching in challenging conditions.
