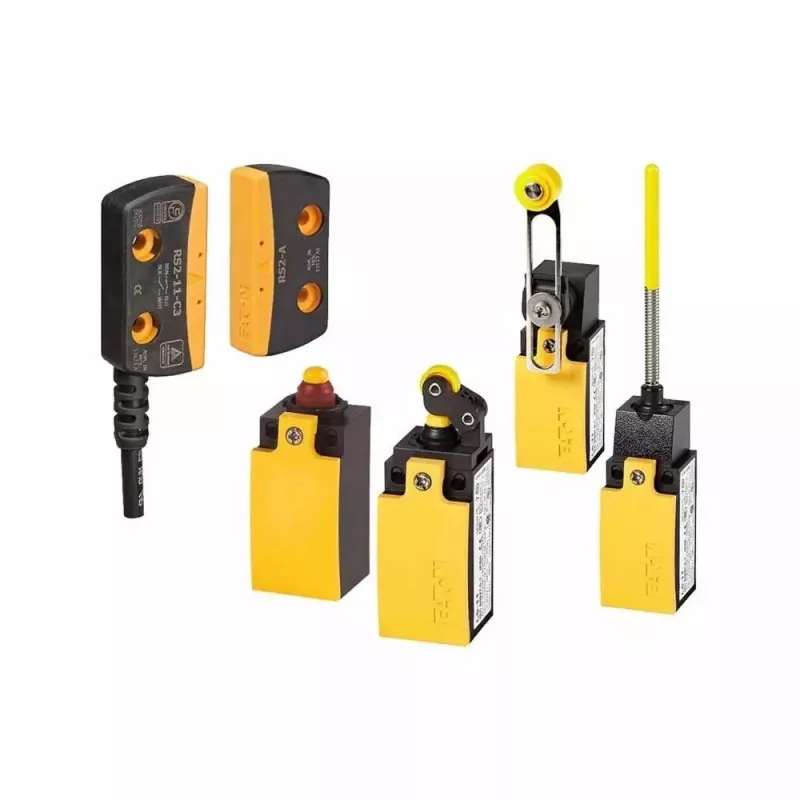

Eaton LSM-11S rajakytkin, rullavipu, 1NO+1NC, 6A, IP66/IP67, keltainen 266140

In automated machinery, a limit switch must signal position reliably through millions of cycles, even when dust, moisture, or washdowns are present. The Eaton LSM-11S provides that signal with a snap-action contact block and a sealed thermoplastic housing rated IP66 and IP67.

Who is it for

Maintenance engineers and machine builders who need a compact, base-mounted position switch for conveyors, guards, or linear actuators. It suits applications where the switch is exposed to splashing water or dusty air, and where the actuating mechanism is a roller lever following a cam or moving part.

Main features

• Roller lever actuator with yellow roller for high visibility
• Snap-action contact block: 1 normally open + 1 normally closed
• Rated operational current 6 A at 230 V AC (AC-15)
• Protection class IP66 and IP67: dust-tight and protected against temporary immersion
• Housing made of thermoplastic, black
• Operating temperature range -25 °C to +70 °C
• Connection via screw terminals
• Cable entry M20 x 1.5
• Mechanical life over 10 million operations
• Electrical life over 0.5 million operations
• Mounting by base with 2 x M4 screws

Specifications

• Product type: Limit switch / position switch
• Actuator type: Roller lever
• Contact configuration: 1 N/O + 1 N/C (snap-action)
• Rated operational voltage: 240 V AC, 250 V DC
• Housing colour: Black
• Roller colour: Yellow
• Compliance: CE, UL, CSA, CCC

Tips

Mount the switch so the roller contacts the actuating surface tangentially, not head-on, to avoid side loading the lever. Use a flexible conduit or cable gland with M20 thread to maintain the IP rating at the entry point.
