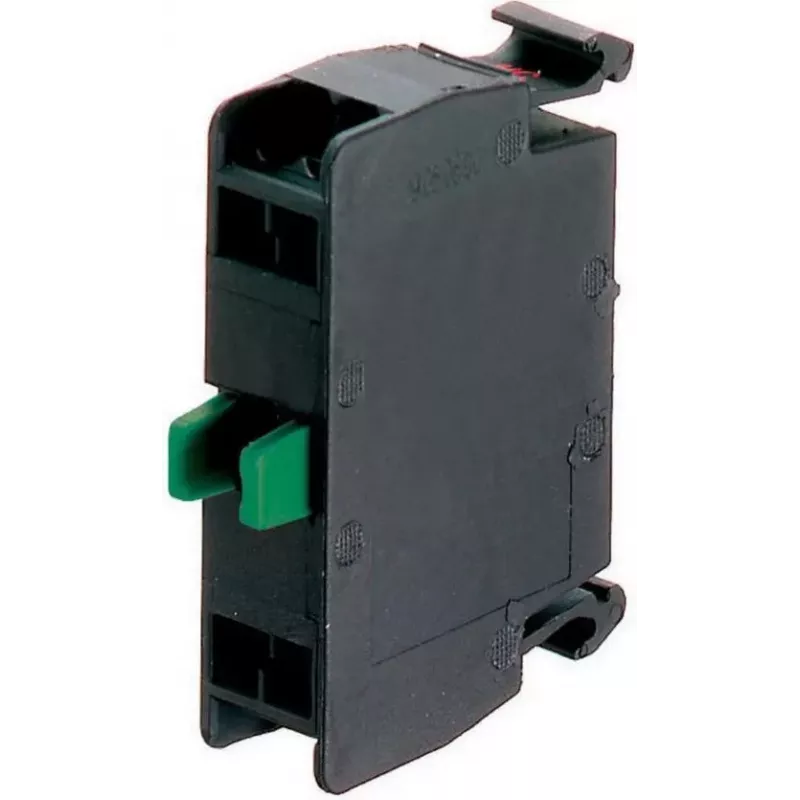

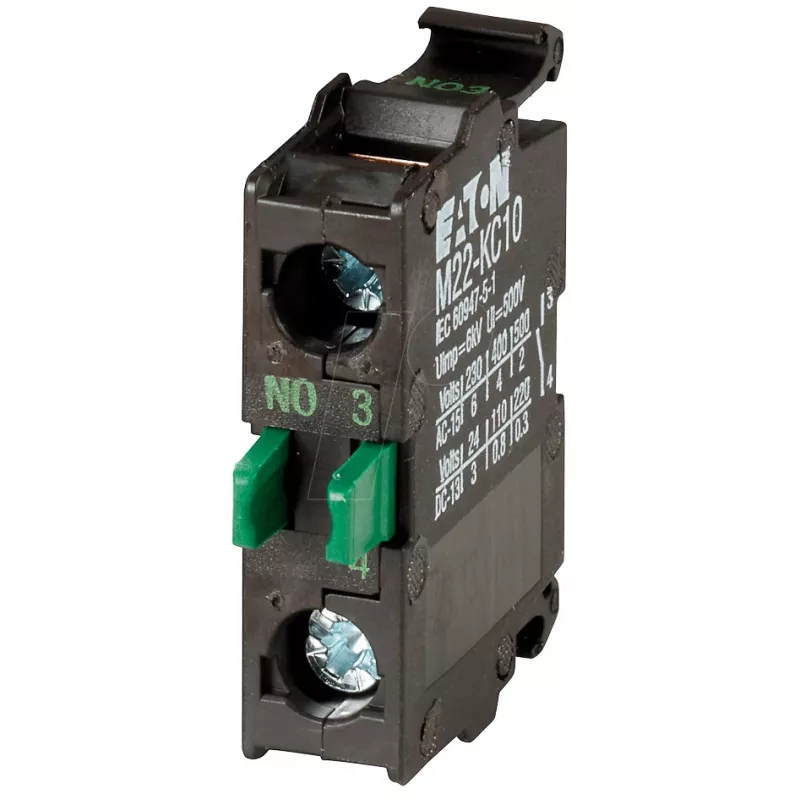

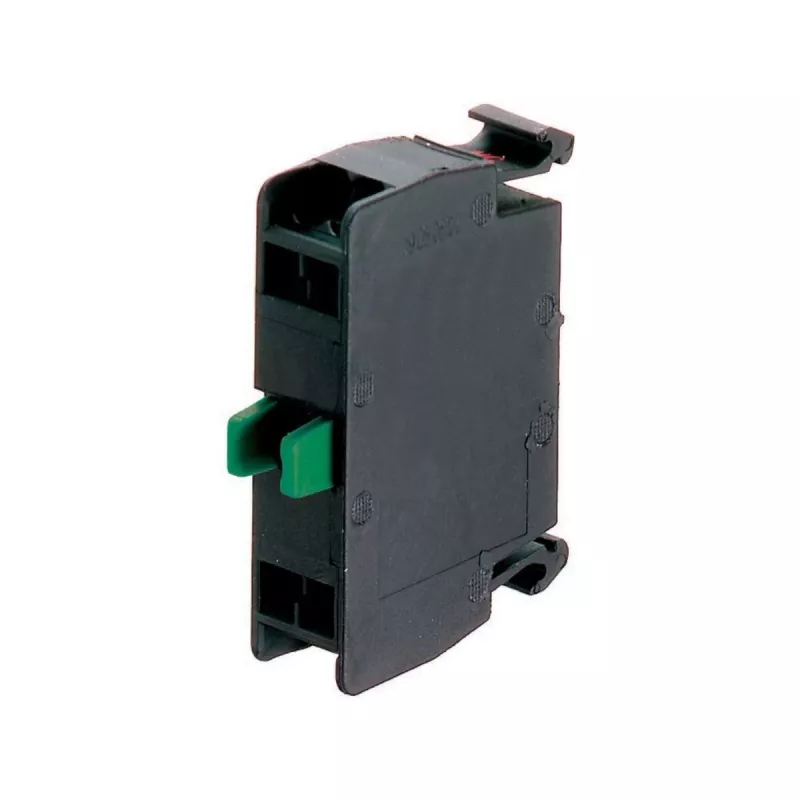

EATON M22-CKC10 kosketinosa 1NO peruskiinnitys jousiliitin

Industrial contact element with one normally open contact and cage clamp terminals for secure, maintenance-free wiring in EATON M22 modular systems. Its base mounting design ensures fast installation and vibration-proof connections without special tools, making it ideal for demanding control circuits.

Advantages

Engineered for high endurance, this contact element withstands over 5 million mechanical operations, reducing downtime and replacement costs. Cage clamp technology provides vibration-proof connections without the need for special tools, while the compact base mounting saves panel space. Rated for 500 V insulation and 6 kV impulse withstand, it meets stringent IEC/EN 60947-5-1 standards for safety and reliability.

Suitable for

• Control panels and machine tools requiring dependable switching
• Automation systems with frequent operation cycles
• Applications needing tool-free, secure wire termination
• Environments with temperature ranges from -25°C to +70°C

Key specifications

• Contact configuration: 1 normally open (NO)
• Terminal type: Cage clamp, accepts 0.5–2.5 mm² solid or stranded wire
• Rated operational current: 6 A at AC-15 230 V, 3 A at DC-13 24 V
• Rated insulation voltage: 500 V; impulse withstand: 6 kV
• Degree of protection: IP20 (terminals)
• Mechanical life: >5 million operations; electrical life: >0.5 million operations
• Pollution degree: 3; short-circuit protection: max 10 A gG/gL fuse
• Mounting: Base mounting, compatible with EATON M22 series

Recommendations

For optimal performance, pair with EATON M22 series pushbuttons and indicator lights. Ensure proper fuse protection (max 10 A gG/gL) and verify wire gauge within 0.5–2.5 mm². Suitable for use in control panels requiring reliable switching under frequent operation.
