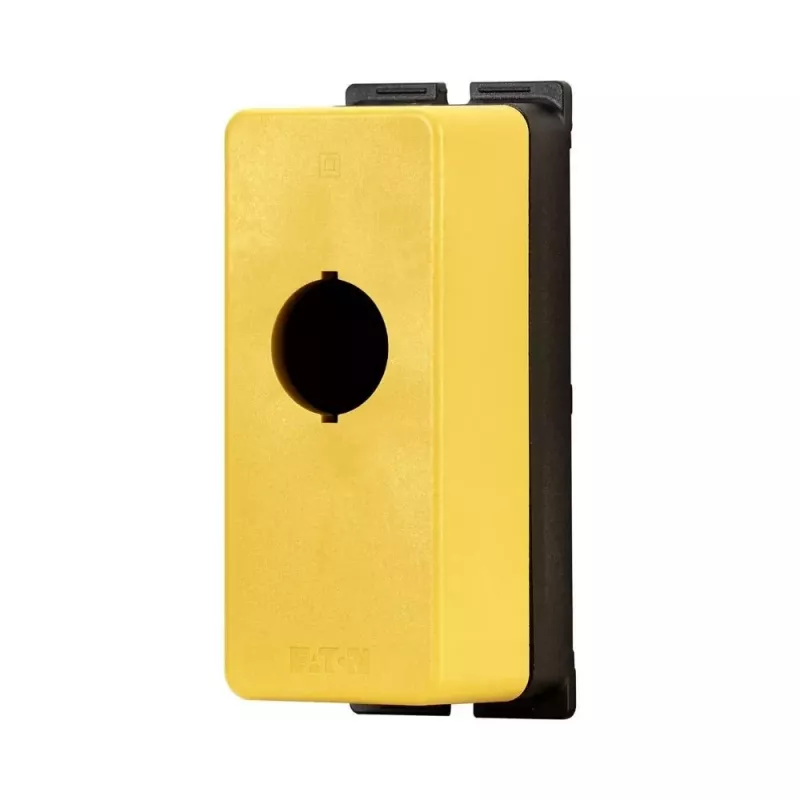

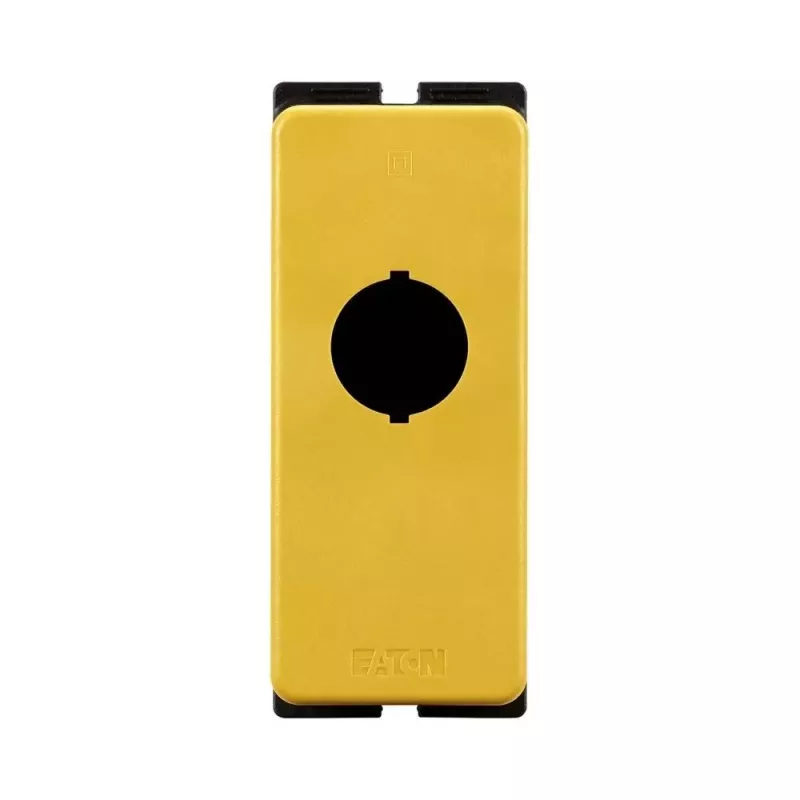

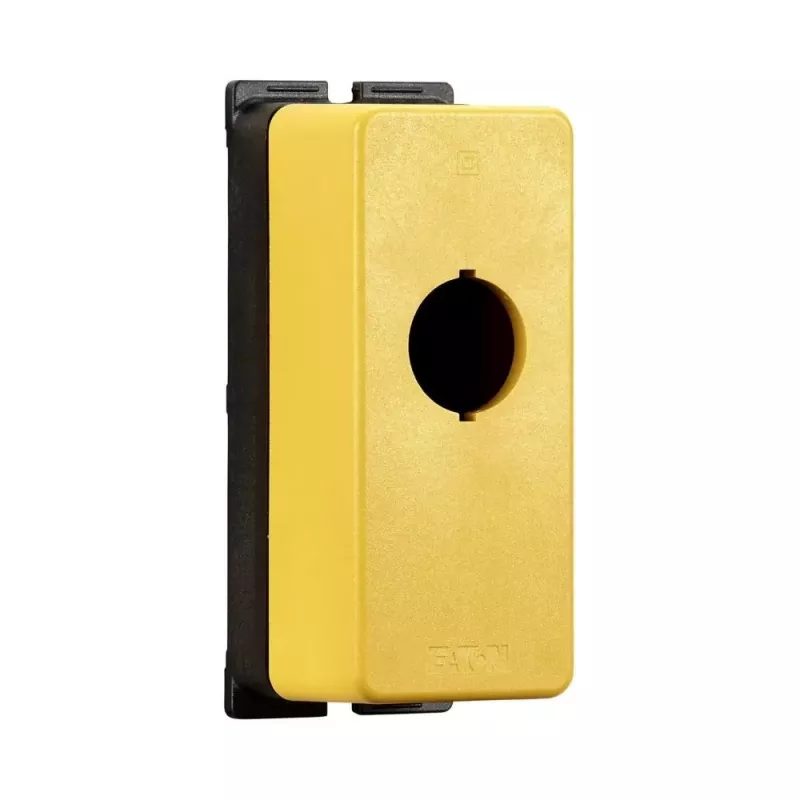

EATON M22-FIY1 pinta-asennettava kotelo, keltainen, 1 toimintopiste

The M22-FIY1 provides a compact, surface-mount enclosure for Eaton's M22 series control devices, with a single command point and a yellow polycarbonate housing. Its double-insulated design and robust construction make it suitable for demanding industrial environments.

Highlights

• Accommodates one 22.5 mm control device
• Surface mounting with two M20 knockouts for cable entry
• Yellow polycarbonate housing with high impact resistance (IK08)
• Operating temperature range from -25 °C to +70 °C

In daily use

This enclosure simplifies the installation of pushbuttons, indicator lights, or selector switches. The knockouts allow flexible cable routing, and the opaque cover protects the device while maintaining a clean appearance. The double insulation and UL 94 V-0 flammability rating ensure safe operation.

Full specifications

• Number of command points: 1
• Mounting type: Surface mount
• Colour: Yellow
• Material: Polycarbonate
• Drill hole diameter: 22.5 mm
• Cable entry: 2 x M20 knockouts
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Housing type: Compact enclosure
• Cover type: Opaque
• Insulation class: Double insulated
• Corrosion resistance: Yes

Final note

Designed for use with Eaton M22 series control devices, this enclosure offers a reliable and durable solution for industrial control applications.
