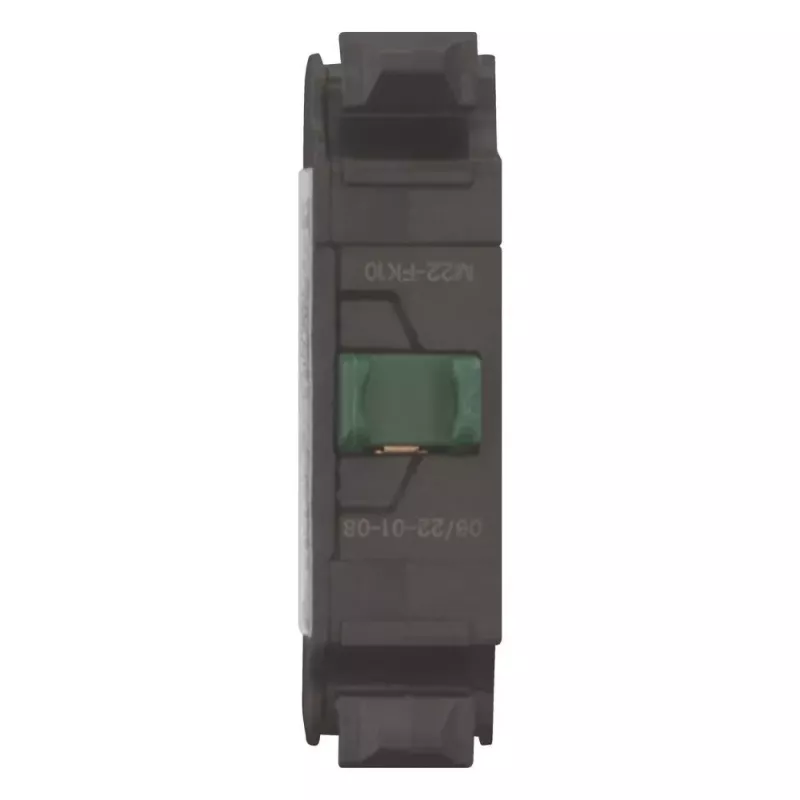

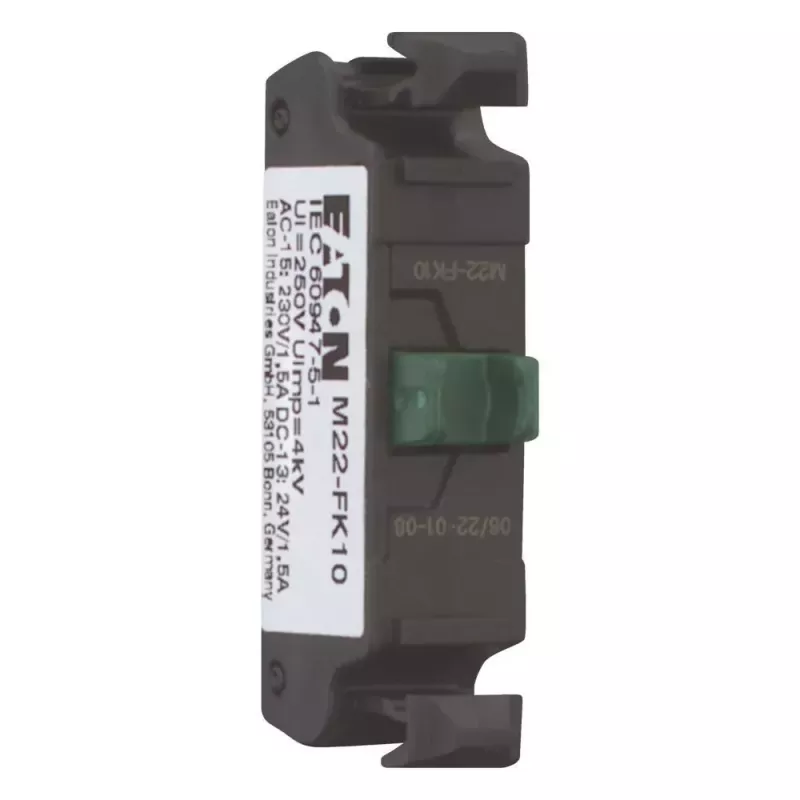

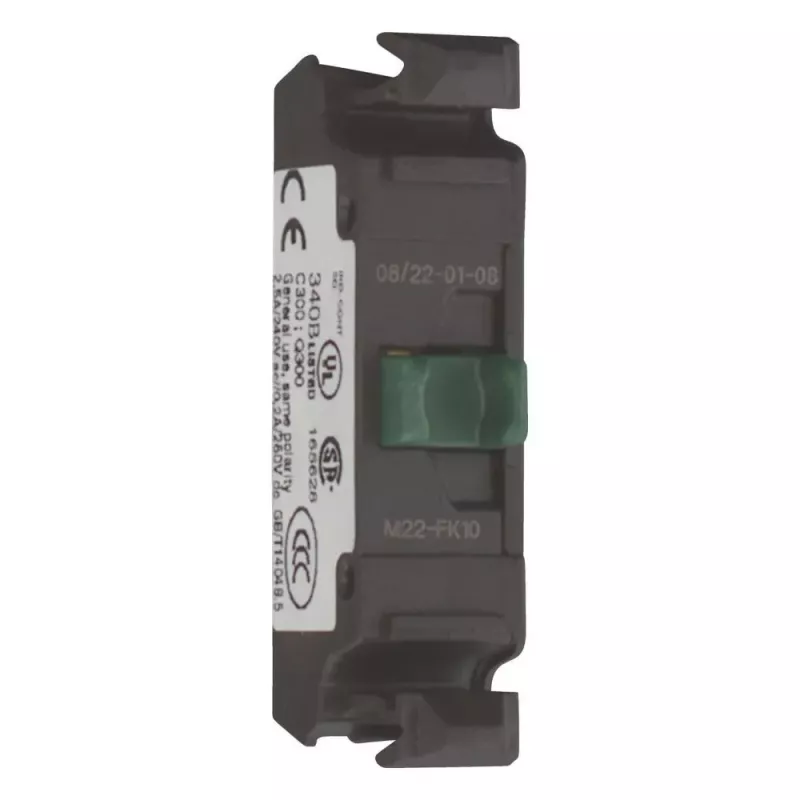

Eaton M22-FK10 tasolukitsija, RMQ-Titan-sarja 180792

Industrial electricians and panel builders use the Eaton M22-FK10 flat contact block to add a normally open (NO) contact to RMQ-Titan M22 pushbuttons and selector switches. The flat design fits front-mounting applications where space behind the panel is limited, and the snap-on mounting allows quick installation without tools.

Key specifications

• Contact type: Normally open (NO)
• Number of contacts: 1
• Design: Flat
• Series: RMQ-Titan (M22)
• Mounting: Front mounting, snap-on
• Connection: Screw terminals
• Rated operational current (AC-15, 230 V): 6 A
• Rated operational current (DC-13, 24 V): 3 A
• Rated insulation voltage: 500 V AC
• Rated impulse withstand voltage: 6 kV
• Contact material: Silver alloy
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +70 °C
• Terminal capacity: 1 x (0.5 - 2.5) mm² or 2 x (0.5 - 1.5) mm²

Why choose it

The M22-FK10 is engineered for reliable switching in industrial control circuits. Its silver alloy contacts ensure low contact resistance and long service life, while the screw terminals provide secure wiring for solid or stranded conductors. The flat form factor saves panel depth, and the snap-on mechanism reduces installation time.

Ideal use cases

• Adding a NO contact to M22 pushbuttons for start/stop control stations
• Expanding contact configurations in machine control panels
• Retrofitting existing RMQ-Titan installations with additional contacts

Good to know

The contact block is compatible with the full range of Eaton M22 series actuators and is designed to meet IEC/EN 60947 standards for low-voltage switchgear. It operates reliably in temperatures from -25 °C to +70 °C, making it suitable for demanding industrial environments.
