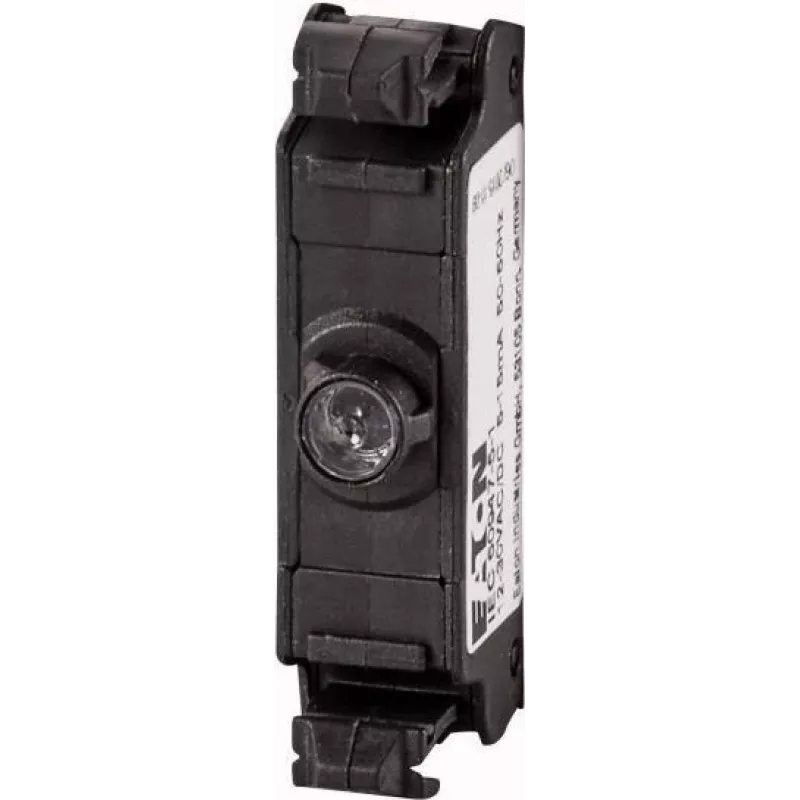

Eaton M22-FLED-RGB LED-merkkivalo, 24 V DC, musta, RGB 180800

Featuring an RGB LED with a lifespan exceeding 100,000 hours, the Eaton M22-FLED-RGB indicator light delivers reliable multi-color signaling in a compact 22.5 mm panel-mount design. Its black housing and screw terminals ensure straightforward installation and long-term durability.

Overview

The Eaton M22-FLED-RGB is a panel-mount LED indicator light designed for industrial control and signaling applications. It operates on 24 V DC and provides RGB color output, allowing flexible status indication. The front of the device is protected to IP66, IP67, and IP69K, making it suitable for harsh environments, while the terminals are rated IP20. The housing is made of high-grade plastic and is black in color.

What stands out

• RGB LED for multi-color indication
• High front protection: IP66, IP67, IP69K
• Long LED lifespan: over 100,000 hours
• Wide operating temperature range: -25 to +70 °C
• Complies with IEC/EN 60947-5-1, UL 508, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91

Technical details

• Supply voltage: 24 V DC
• Current consumption: max. 20 mA
• Mounting diameter: 22.5 mm
• Connection: screw terminals
• Housing material: high-grade plastic
• Housing color: black
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C

Our verdict

A robust and versatile indicator light with excellent environmental protection and long-lasting RGB LED, ideal for demanding industrial signaling tasks.
