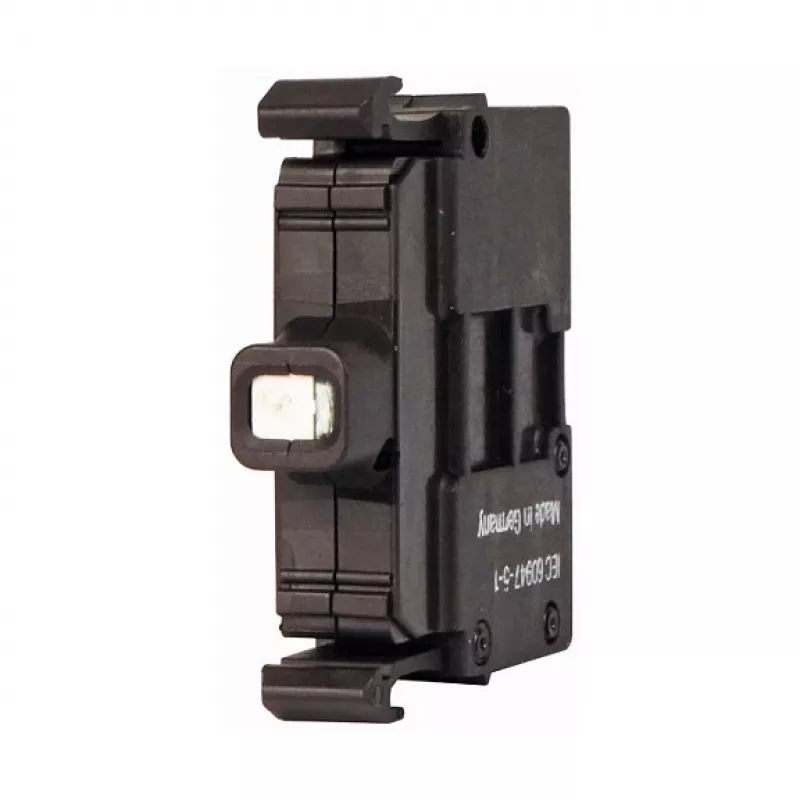

Eaton M22-LED-R punainen LED-elementti, 12-30V AC/DC, ruuviliittimet, musta (216558)

Industrial control panels demand reliable status indication, and this red LED element from Eaton's M22 series delivers just that with a service life exceeding 100,000 hours. Engineered for snap-on mounting into M22 holders, it provides clear visual signalling across a wide 12–30 V AC/DC operating range, ensuring versatility in diverse automation circuits. The screw terminal connection guarantees secure wiring, while the robust thermoplastic housing withstands harsh industrial environments.

Advantages

Maintenance-free operation is assured by the long-lasting LED technology, which eliminates the need for frequent bulb replacements. The screw terminals accept solid or stranded conductors from 0.5 to 1.5 mm², simplifying installation and reducing wiring errors. With a low power consumption of approximately 0.3 W and current draw of 15 mA, it contributes to energy-efficient control panel designs. The element's snap-on mounting mechanism allows for quick tool-free assembly into compatible M22 holders, saving valuable installation time.

Suitable for

• Pushbuttons, indicator lights, and control stations in industrial settings
• Industrial automation and machinery requiring clear status indication
• Switchgear and control cabinets where reliable visual feedback is critical
• Status indication in manufacturing lines, process control, and building automation

Key specifications

• Type: LED element
• Series: Eaton M22
• Light colour: Red
• Operating voltage: 12 - 30 V AC/DC
• Power consumption: approx. 0.3 W
• Current consumption: approx. 15 mA
• Connection: Screw terminals, 0.5 - 1.5 mm²
• Life expectancy: > 100,000 hours
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Certifications: CE, UL, CSA
• Protection rating (terminals): IP20
• Mounting: Snap-on into M22 holder
• Housing material: Thermoplastic

Recommendations

For optimal performance, pair this LED element with an Eaton M22 holder and ensure the supply voltage is within the specified range. Use appropriate wire sizes (0.5–1.5 mm²) and torque screw terminals to manufacturer recommendations to maintain secure connections. The element is suitable for use in control panels, indicator lights, and pushbutton stations where a red status indication is required.
