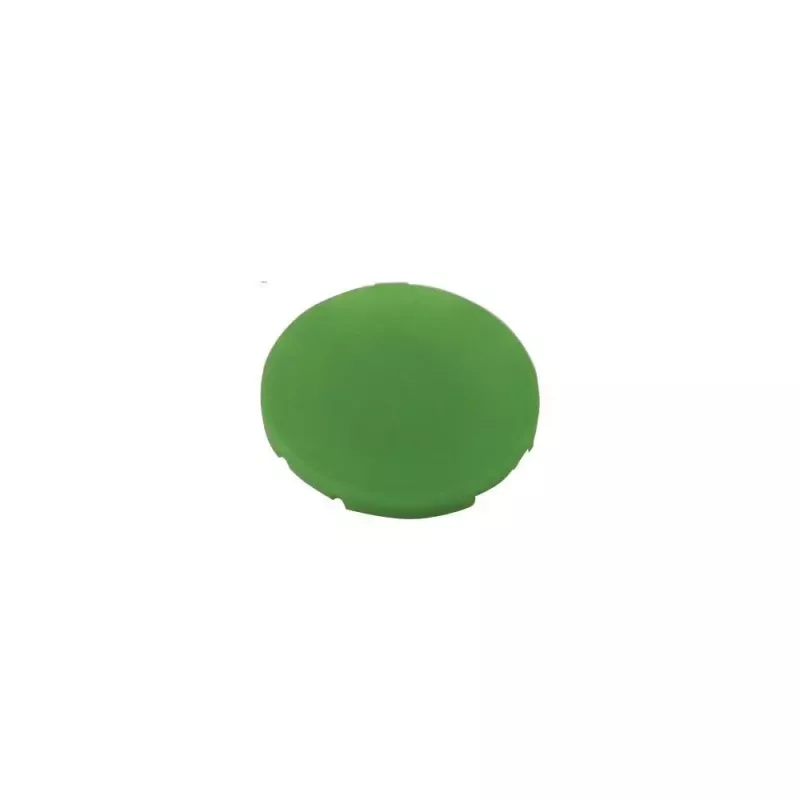

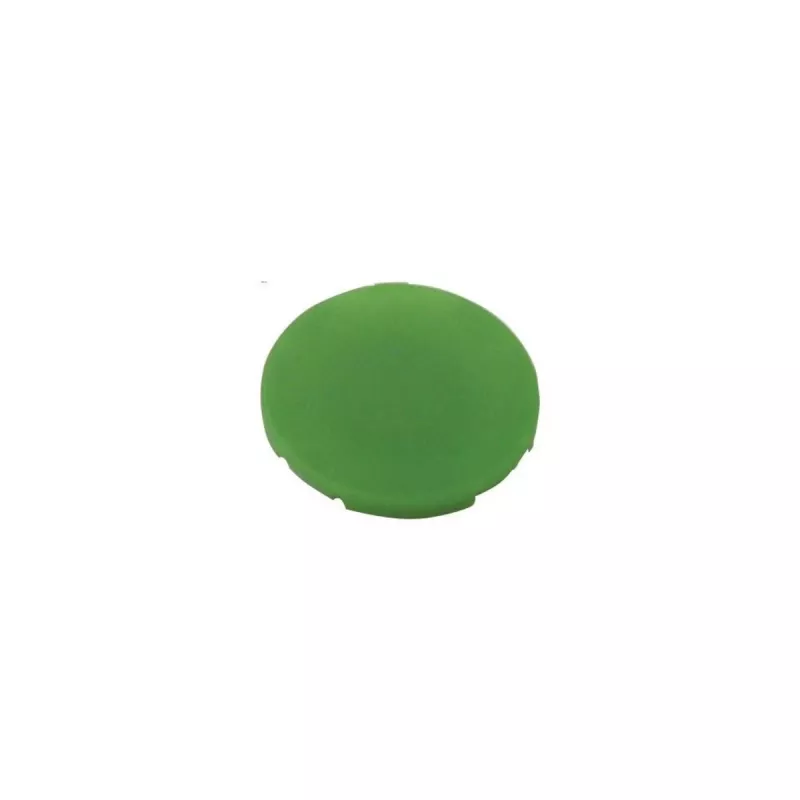

Eaton M22-XD-G litteä vihreä merkitsemätön painonapin käyttöosa 216424

Pushbutton actuator with flat design and green colour, blank labelling, for Eaton M22 series. Momentary contact function with spring return, front protection IP66/IP67/IP69K, plastic front ring, 22.5 mm mounting diameter.

Advantages

Robust front protection for demanding industrial environments. Compatible with all Eaton M22 contact blocks and holders. Wide operating temperature range from -25°C to +70°C.

Suitable for

• Control panels and machine interfaces
• Industrial automation systems
• Harsh environments requiring high ingress protection

Key specifications

• Actuator design: flat
• Actuator colour: green
• Labelling: blank
• Series: M22
• Mounting diameter: 22.5 mm
• Protection degree (front): IP66, IP67, IP69K
• Material (front ring): plastic
• Actuator function: momentary (spring return)
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +80°C
• Illumination capability: non-illuminated
• Number of actuators: 1

Recommendations

Use with Eaton M22 contact blocks for reliable control signal transmission.
