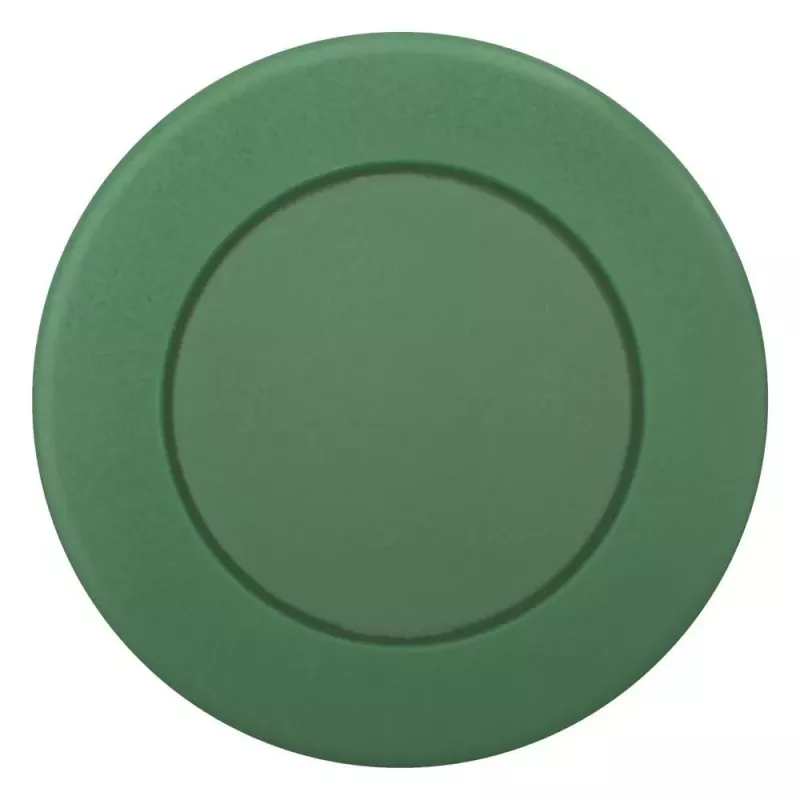

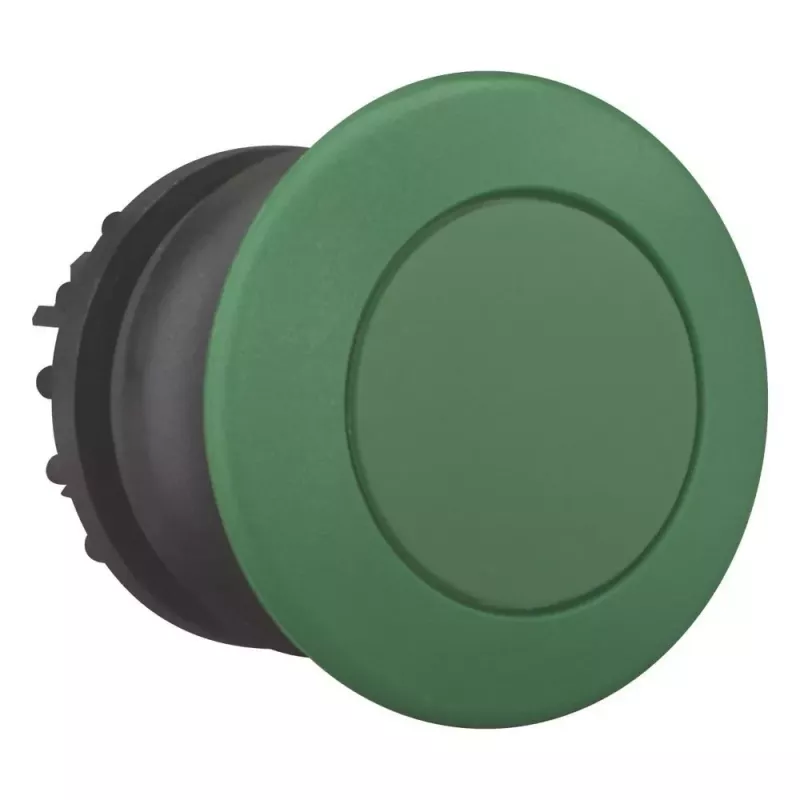

Eaton M22S-DP-G sienipainonappi, lukittuva, vihreä, 38 mm 216717

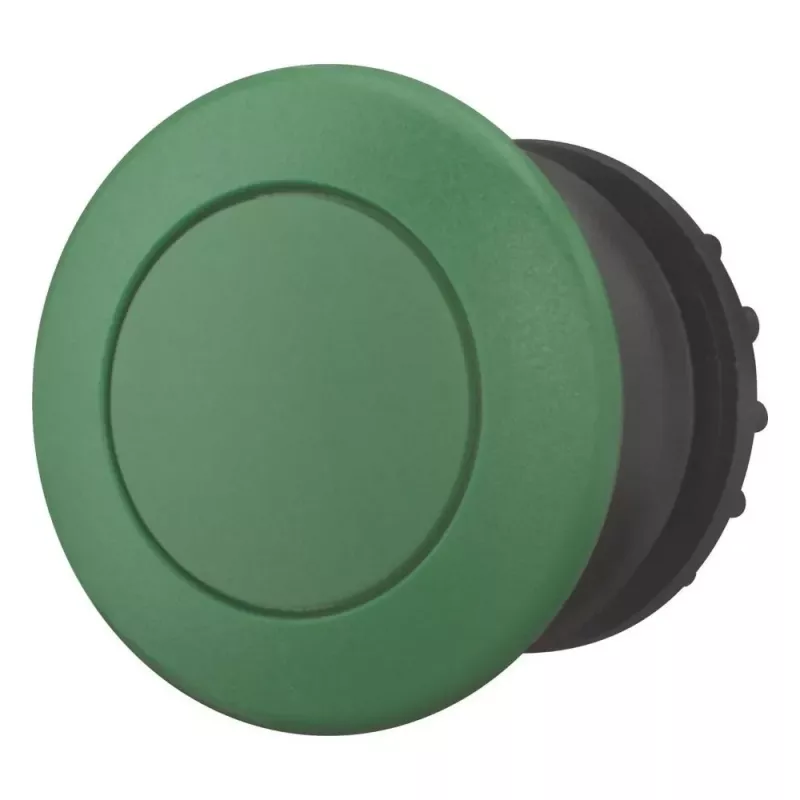

In industrial control panels, emergency stop and stop functions demand a highly visible, reliable actuator that can be operated quickly and reset deliberately. The Eaton M22S-DP-G mushroom pushbutton provides a latching, pull-to-release actuation with a large green head, ensuring clear status indication and preventing accidental resets.

Who is it for

Panel builders, machine OEMs, and maintenance engineers who need a robust, modular pushbutton for control circuits in industrial environments. It fits standard 22.5 mm mounting holes and integrates with Eaton's M22 contact blocks (sold separately).

Main features

• Latching mushroom actuator with pull-to-release reset method
• Green actuator head, 38 mm diameter, for high visibility
• Modular design: compatible with M22 series contact blocks (not included)
• Front protection rating IP66, IP67, IP69K; rear IP20 with standard contact blocks
• Operating temperature range -25 to +70 °C
• Mechanical life over 5 million operations
• Approvals: CE, UL, CSA, CCC, GL, DNV, LR, RINA, BV

Tips

Select the appropriate M22 contact block (e.g., M22-K10 for 1NO) based on your circuit requirements. The actuator is non-illuminated; for illuminated versions, consider the M22 series with LED elements.
