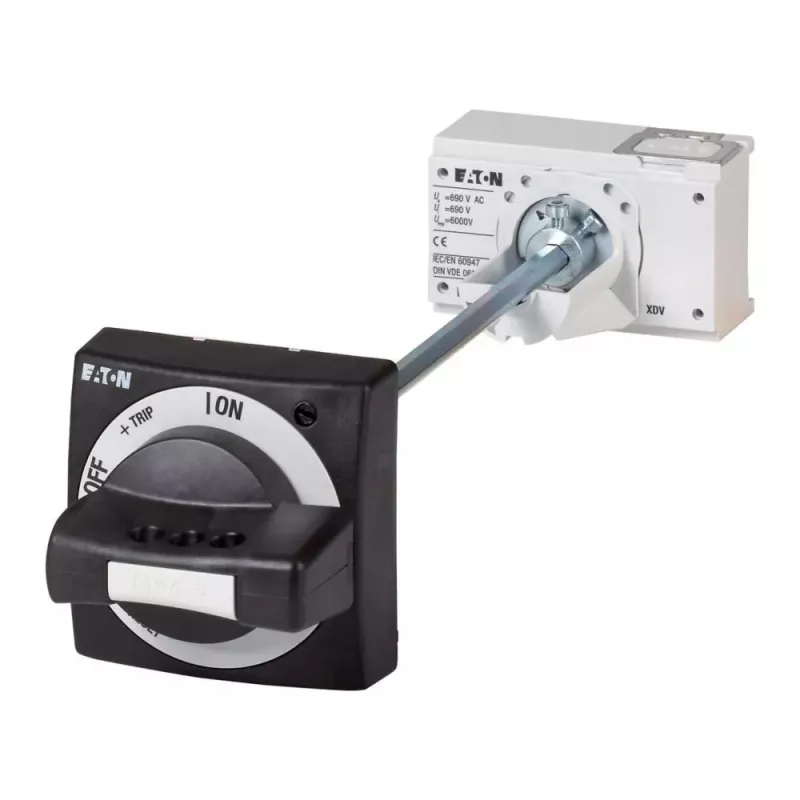

Eaton NZM2-XTVD-0 oven kytkentä kiertokahva, musta 279393

For panel builders and maintenance technicians working with Eaton NZM2 or N(S)2 circuit breakers, the NZM2-XTVD-0 door coupling rotary handle provides a reliable way to operate the breaker from outside an enclosure. The black handle is mounted on the door and connects to the breaker via a compatible shaft (sold separately), allowing safe switching without opening the panel.

Key specifications

• Product type: Door coupling rotary handle
• Compatible with Eaton NZM2 and N(S)2 circuit breakers
• Colour: Black
• Mounting type: Door mounting
• Front protection degree: IP66
• Lockable in OFF position with up to 3 padlocks
• Accepts NZM-XTVD shafts (shaft not included)
• Functions: Main switch, emergency stop switch
• Door interlock prevents opening when switch is ON
• Switching position indication: ON/OFF
• Material: Insulating plastic
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Degree of pollution: 3
• Front plate dimensions: 75 x 75 mm

Why choose it

The handle's IP66 front protection and lockable OFF position enhance safety in industrial environments. Its door interlock ensures the panel cannot be opened while the circuit is live, reducing the risk of accidental contact. The rotary design allows for quick and clear ON/OFF operation.

Ideal use cases

• Industrial control panels with Eaton NZM2 breakers
• Machinery requiring emergency stop functionality
• Enclosures where door interlocking is mandatory
• Applications needing padlock lockout/tagout

Good to know

The handle is designed for use with Eaton NZM-XTVD shafts; the shaft must be ordered separately to match the enclosure depth. It complies with IEC/EN 60947 standards for low-voltage switchgear.
