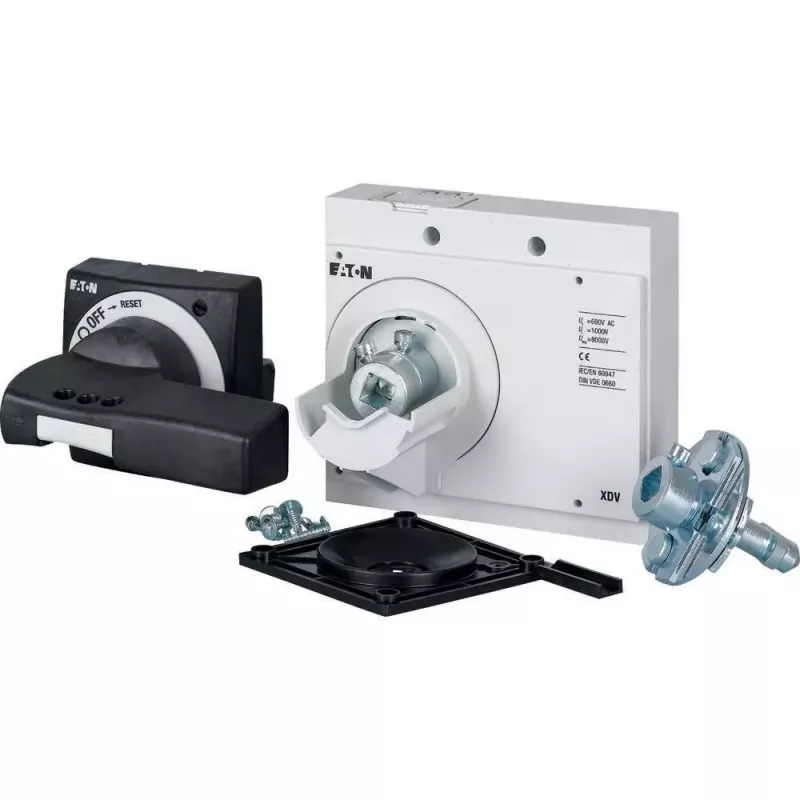

Eaton NZM3-XTVDV ovikytkentä kääntökahva, musta, IP66, lukittava, 1 kpl 260176

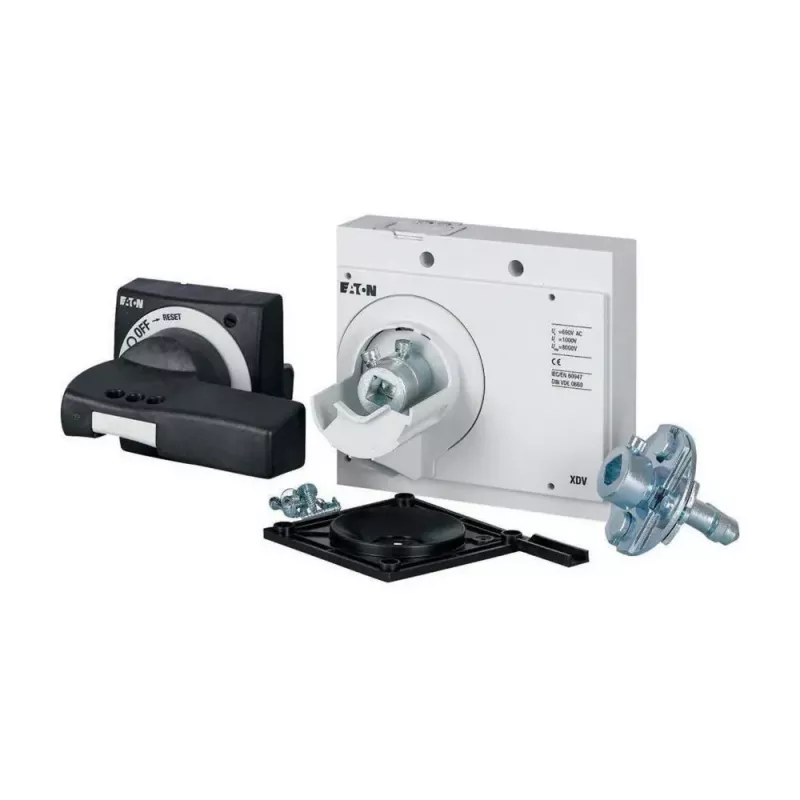

In industrial power distribution and control panels, the Eaton NZM3-XTVDV door coupling rotary handle provides a reliable solution for operating NZM3 circuit breakers from outside the enclosure. This black handle is designed for door mounting and is rated IP66, ensuring protection against dust and powerful water jets, making it suitable for demanding environments.

Key specifications

• Product type: Door coupling rotary handle
• Compatibility: Eaton NZM3 series
• Colour: Black
• Ingress protection: IP66
• Mounting type: Door mounting
• Function: Main switch, emergency stop
• Locking capability: Lockable in OFF position with up to 3 padlocks (shackle diameter 4-8 mm)
• Material: Insulating plastic
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Quantity per pack: 1 piece

Why choose it

The handle allows safe operation of the circuit breaker without opening the panel door, enhancing operator safety. Its lockable feature in the OFF position enables lockout/tagout procedures, preventing accidental re-energization during maintenance. The robust construction and wide temperature range ensure reliable performance in various industrial settings.

Ideal use cases

• Industrial control panels requiring external breaker operation
• Machinery with emergency stop requirements
• Applications needing secure lockout/tagout capability
• Outdoor or washdown environments where IP66 protection is essential

Good to know

The handle complies with IEC/EN 60947 standards and is supplied as a single piece. It is designed for use with Eaton NZM3 circuit breakers and offers flexibility in padlock shackle sizes for locking.
