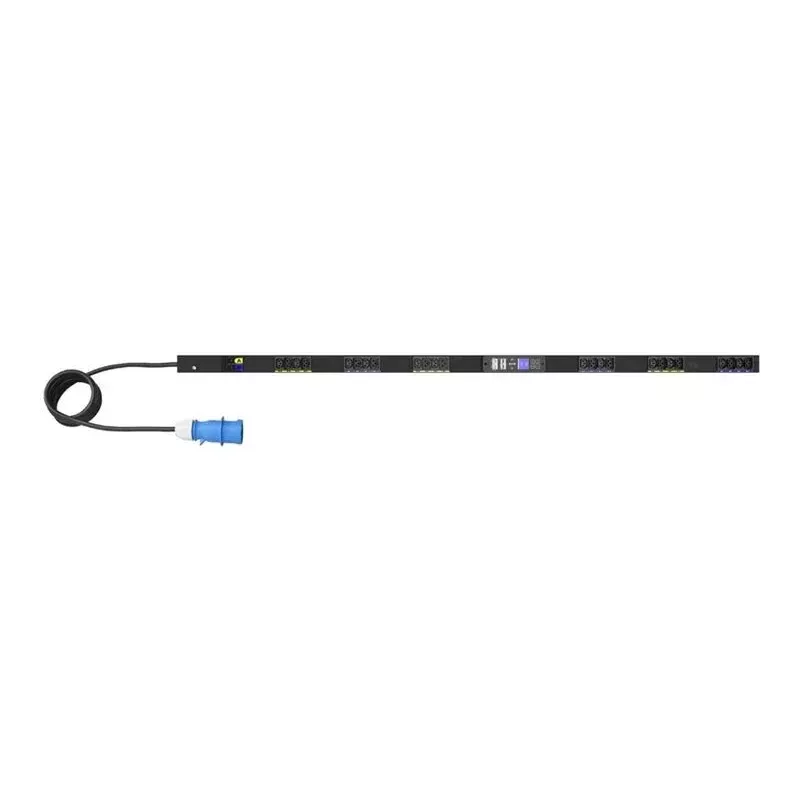

EATON PDU G4 MI 0U 309 32A 1P 12xC13,12xC39

The EATON PDU G4 MI 0U 309 32A 1P 12xC13,12xC39 is a professional-grade metered input power distribution unit designed for data centers and server rooms. It provides precise real-time monitoring of power consumption at the inlet, enabling efficient capacity management and energy optimization. With a 0U vertical form factor, it mounts easily in standard racks without occupying valuable U-space.

Advantages

This PDU offers accurate metering of current, voltage, power, energy, and power factor via its integrated LCD display and network interface. The tool-less mounting design simplifies installation, while the 3-meter input cord provides flexibility in rack placement. It supports remote monitoring and management through HTTP, HTTPS, SNMP, Telnet, SSH, and Modbus TCP protocols, making it ideal for integrated data center infrastructure management (DCIM) systems.

Suitable for

• Data centers requiring per-PDU power monitoring
• Server rooms with high-density equipment
• Facilities needing remote power management and energy reporting
• Applications demanding reliable 32A 1-phase power distribution

Key specifications

• PDU Type: Metered Input
• Form Factor: 0U Vertical Rackmount
• Input Connector: IEC 60309 32A (1P+N+PE)
• Input Voltage: 230V AC
• Input Current: 32A
• Phases: 1-Phase
• Output Receptacles: 12 x IEC C13, 12 x IEC C19
• Max Output Current: 32A
• Power Rating: 7.3 kVA / 7.3 kW
• Metering: Input Current (A), Voltage (V), Power (kW), Energy (kWh), Power Factor (PF)
• Local Display: LCD
• Network Interface: 1 x Ethernet (RJ45)
• Management Protocols: HTTP, HTTPS, SNMP v1/v2c/v3, Telnet, SSH, Modbus TCP
• Mounting: Tool-less vertical rackmount
• Input Cord Length: 3 meters
• Operating Temperature: 0°C to 60°C
• Certifications: CE, EAC, RCM, RoHS, REACH

Recommendations

For optimal performance, ensure the PDU is connected to a dedicated 32A circuit with appropriate overcurrent protection. Use the network interface to integrate with your DCIM software for comprehensive power monitoring and capacity planning.
