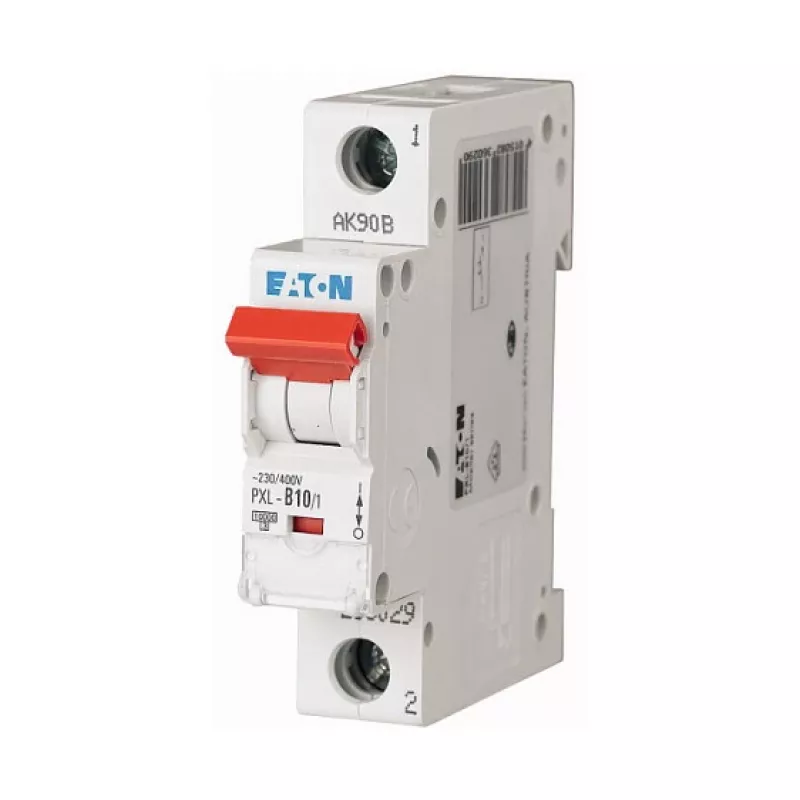

EATON PXL-B10/1 johdonsuojakatkaisija 1P 10A B-käyrä 6kA

Designed for dependable protection in residential and commercial electrical installations, the EATON PXL-B10/1 miniature circuit breaker safely switches and protects circuits against overloads and short circuits. This 1-pole breaker with a 10 A rated current and B tripping characteristic delivers fast response for lighting and socket circuits.

Key specifications

• Device type: Miniature Circuit Breaker (MCB)
• Number of poles: 1-pole
• Rated current (In): 10 A
• Tripping characteristic: B
• Rated switching capacity (Icn): 6 kA
• Rated voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal capacity (solid): 1 - 25 mm²
• Terminal capacity (stranded): 1 - 16 mm²
• Degree of protection – terminals: IP20
• Degree of protection – front: IP40 (with enclosure)
• Energy limitation class: 3
• Standard: IEC/EN 60898-1
• Operating temperature range: -25 °C to +75 °C
• Pollution degree: 2
• Overvoltage category: III
• Module width: 17.5 mm (1 TE)

Why choose it

Eaton’s PXL series is trusted for its robust construction and precise thermal-magnetic protection. The B-curve trips quickly when moderate overloads occur, making it an ideal choice for general-purpose wiring in homes and light commercial environments. With a 6 kA breaking capacity, it handles common short-circuit conditions with confidence. The compact 1-module width saves space on DIN rails, enabling neat, efficient distribution boards.

Ideal use cases

• Lighting circuits
• Socket outlets in residential and light commercial premises
• Control circuits requiring fast overload response
• General protection for appliances and small transformers

Good to know

This breaker supports both solid and stranded conductors up to 25 mm² and 16 mm² respectively, providing flexibility during installation. The IP20 terminal protection keeps fingers safe, while the front offers IP40 when installed in a suitable enclosure. Operating from -25 °C to +75 °C, it performs reliably in demanding environments. Always follow local electrical regulations and ensure correct termination when installing.
