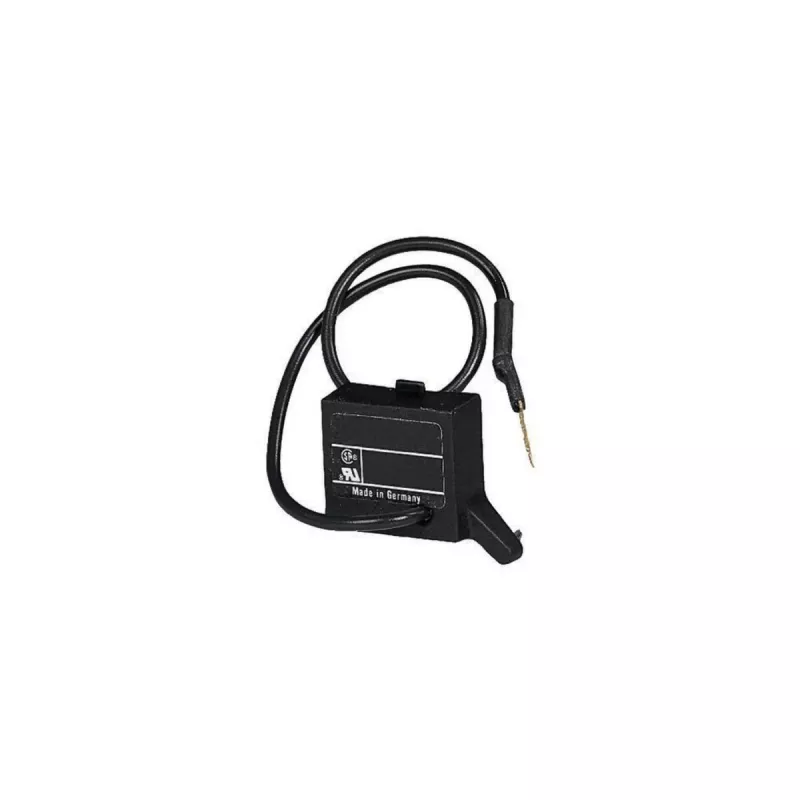

Eaton RC-sammutusvastus 110-250V RCDILE250 DIL-kontaktoreille (046320)

Inductive loads such as contactor coils generate high-voltage transients when switched off, which can damage sensitive control electronics and cause electromagnetic interference. The Eaton RCDILE250 RC suppressor effectively absorbs these voltage spikes, ensuring reliable operation and extended service life of your switching devices.

Who is it for

This suppressor is ideal for electrical engineers, panel builders, and maintenance technicians who work with Eaton DILM, DILK, or DILMP contactors in industrial control systems. It is suitable for applications where overvoltage protection and noise suppression are critical, such as in automation, machinery, and building installations.

Main features

• RC suppression element (resistor-capacitor) for effective attenuation of inductive voltage peaks
• Wide operating voltage range: 110–250 V AC/DC
• Direct plug-in mounting on contactor front – no additional wiring required
• Compatible with Eaton DILM, DILK, and DILMP contactor series
• Compact plastic housing for space-saving installation
• Complies with IEC/EN 60947 standards

Specifications

• Product type: RC suppressor
• Rated operating voltage AC: 110–250 V
• Rated operating voltage DC: 110–250 V
• Suppression type: RC element
• Mounting type: Direct plug-in (front mounting)
• Connection type: Plug-in
• Housing material: Plastic
• Operating temperature range: -25 to +60 °C
• Standards: IEC/EN 60947
• Application: Overvoltage suppression for contactor coils

Tips

To ensure optimal performance, select the suppressor that matches the coil voltage of your contactor. The RCDILE250 is designed for coils rated between 110 V and 250 V AC or DC. Always verify compatibility with your specific contactor model and follow the manufacturer's installation guidelines.
