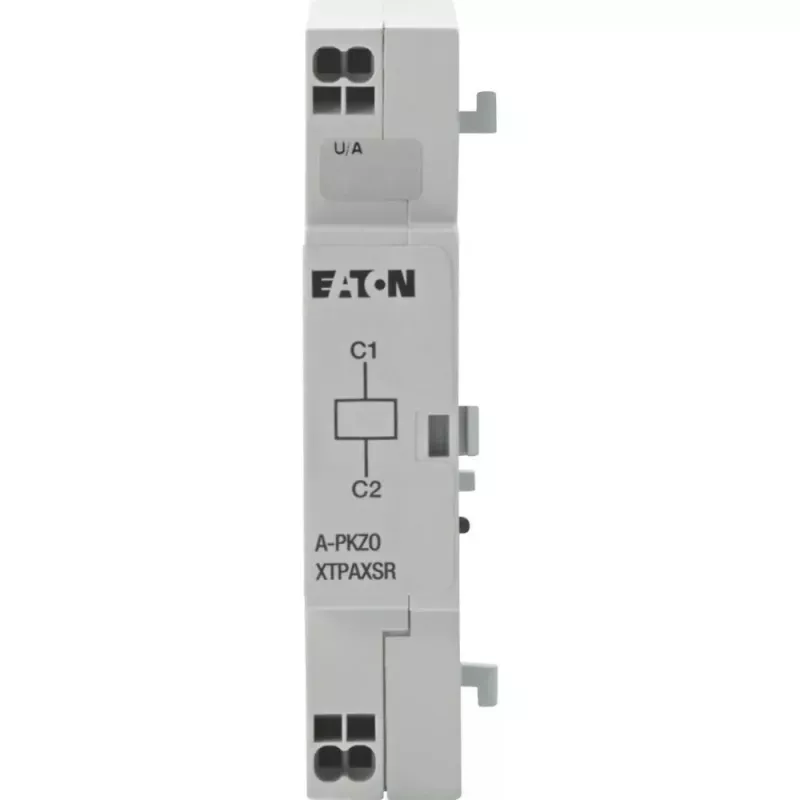

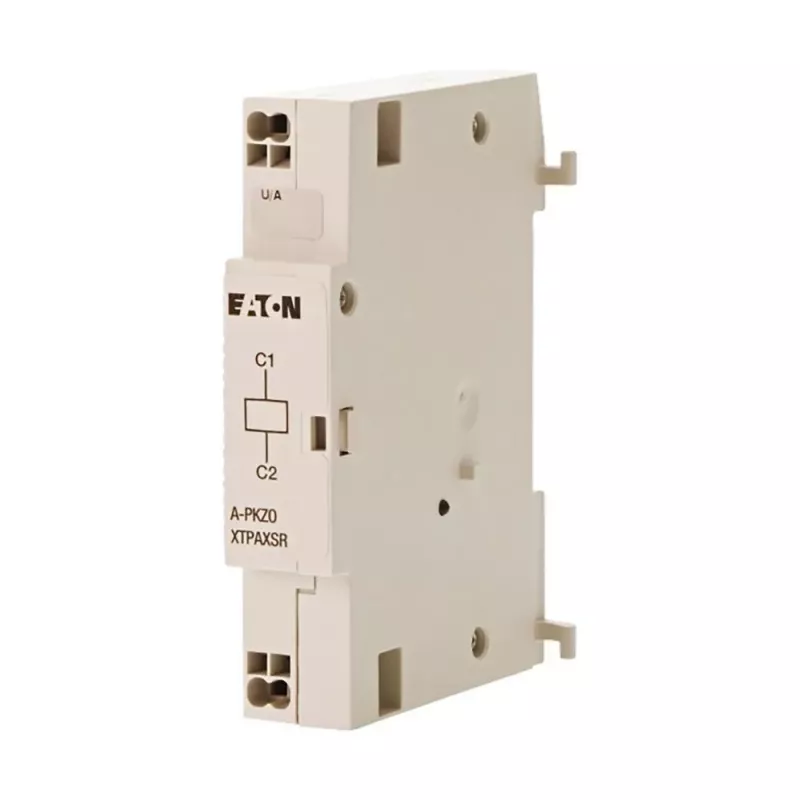

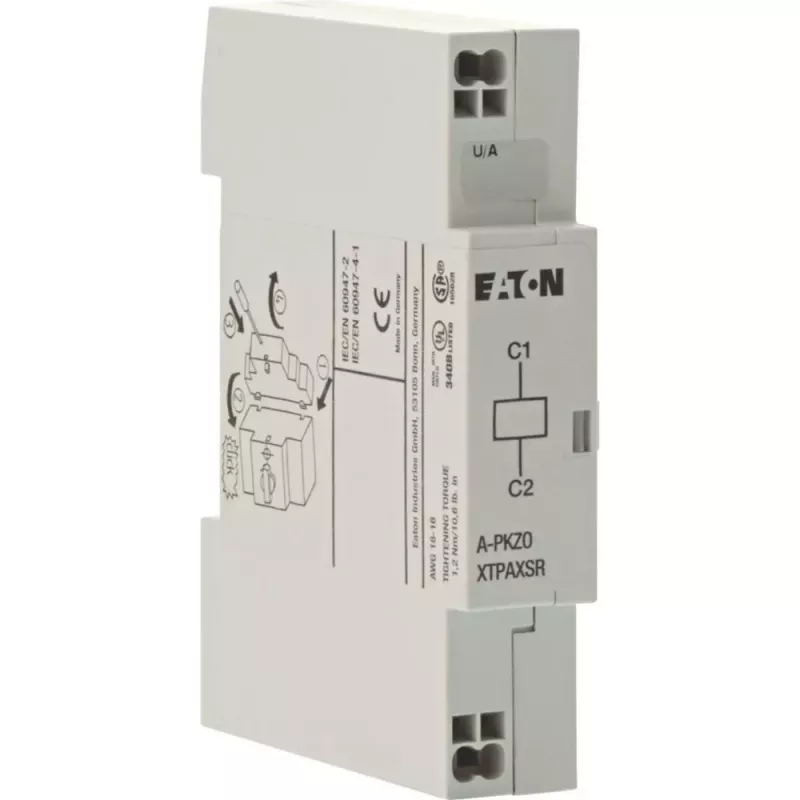

Eaton shunt-laukaisin A-PKZ0 24V DC, malli 199336

Remote tripping of Eaton PKZ0 and PKE0 motor protective circuit breakers is a challenge in automated systems. The Eaton A-PKZ0 shunt trip release solves this by enabling electrical tripping from a distance using a 24 V DC signal.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need to integrate motor protective circuit breakers into control systems with remote shutdown capabilities.

Main features

• Side-mounted design for easy installation on PKZ0 and PKE0 breakers
• Operates on 24 V DC with brief power consumption of approximately 10 W during tripping
• Fast tripping time under 10 ms for quick response
• Screw terminals for secure wiring
• Wide operating temperature range from -25 to +60 °C

Specifications

• Device type: Shunt trip release
• Compatibility: Eaton PKZ0 and PKE0 motor protective circuit breakers
• Operating voltage: 24 V DC
• Current type: DC
• Mounting position: Side-mounted
• Tripping time: < 10 ms
• Connection type: Screw terminals
• Degree of protection (terminals): IP20
• Operating temperature: -25 to +60 °C
• Storage temperature: -40 to +80 °C
• Pollution degree: 3

Tips

Ensure the control circuit can supply the brief inrush current needed for tripping. Verify polarity when connecting DC voltage. Mount the release on the side of the breaker according to the manufacturer's instructions.
