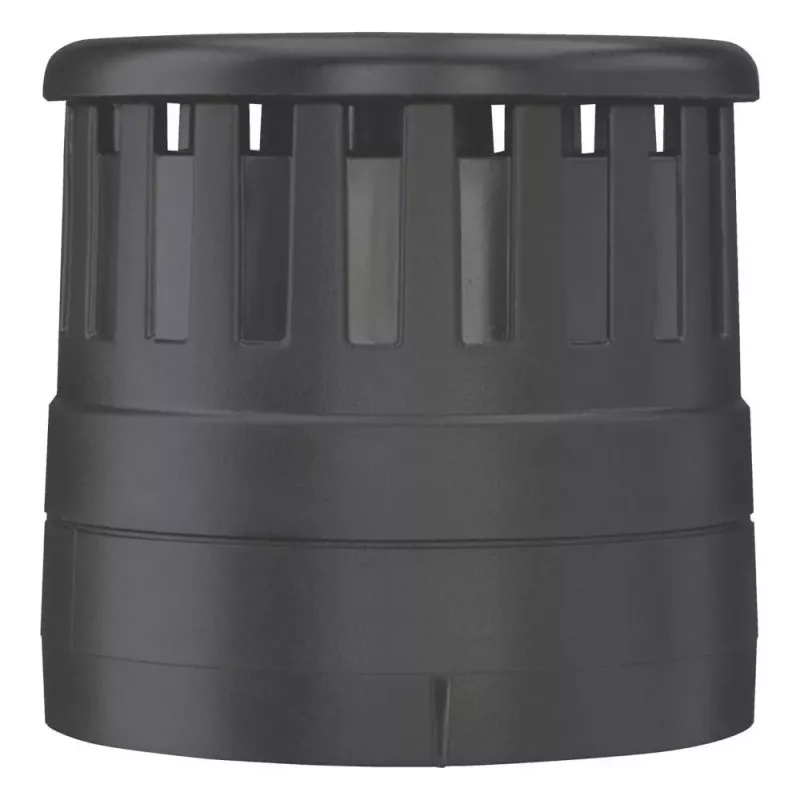

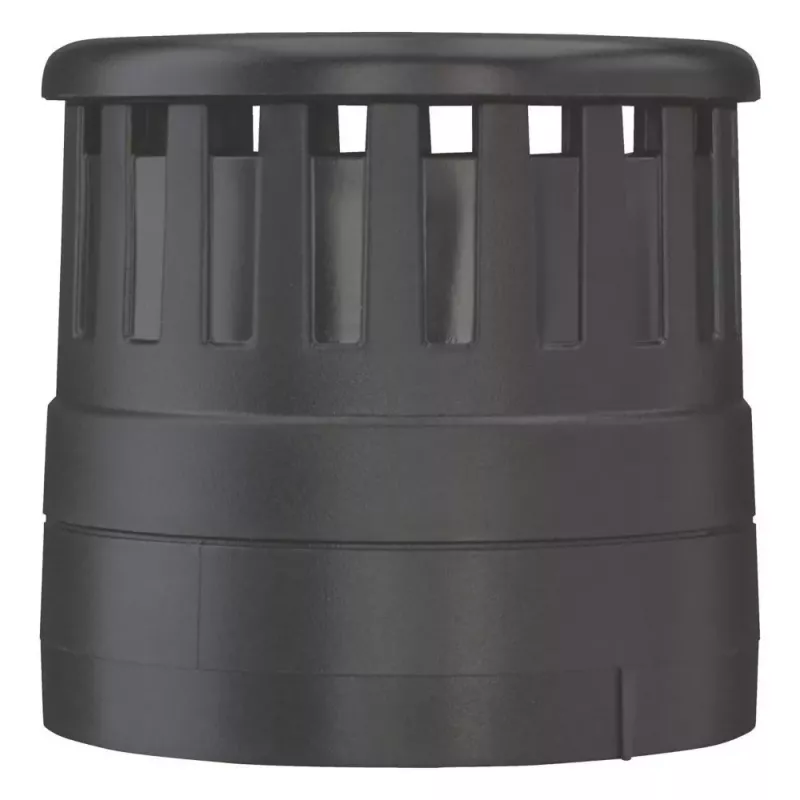

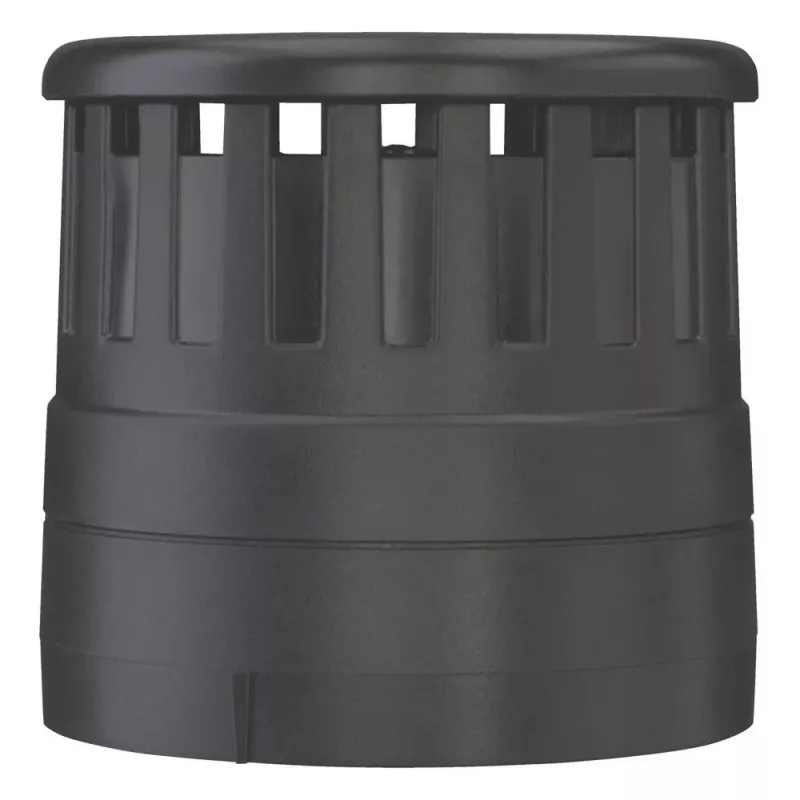

Eaton SL7-AP24 akustinen äänimerkkimoduuli, 24 V DC, 100 dB, IP66, musta/harmaa 171281

Industrial facilities and machine builders use the Eaton SL7-AP24 acoustic sounder module to deliver clear audible alerts in harsh environments. This 24 V DC module produces a continuous tone at 100 dB, ensuring signals are heard over background noise. Its IP66-rated polycarbonate housing withstands dust and water jets, making it suitable for outdoor and washdown areas. Mount it directly onto SL7 series base units for a compact, reliable signaling solution.

Key specifications

• Operating voltage: 24 V DC
• Sound output: 100 dB at 1 m
• Protection class: IP66
• Current consumption: 45 mA
• Tone type: continuous
• Housing material: polycarbonate
• Colour: black/grey
• Mounting: base mounting for SL7 series
• Connection: screw terminals
• Diameter: 70 mm
• Height: 60 mm
• Operating temperature: -25 °C to +55 °C

Why choose it

The SL7-AP24 combines high sound output with robust construction, ensuring reliable operation in demanding industrial settings. Its low current draw of 45 mA reduces power supply load, while the IP66 rating protects against dust and water ingress. The compact design integrates seamlessly with SL7 modular signal towers, saving space on control panels.

Ideal use cases

• Machine status indication on production lines
• Alarm signaling in outdoor or washdown areas
• Integration into SL7 modular signal towers
• Audible alerts in material handling systems

Good to know

The module operates within a wide temperature range from -25 °C to +55 °C, suitable for cold storage and outdoor applications. Screw terminals provide secure wiring, and the polycarbonate housing offers impact resistance. For complete signaling solutions, pair with SL7 visual modules.
