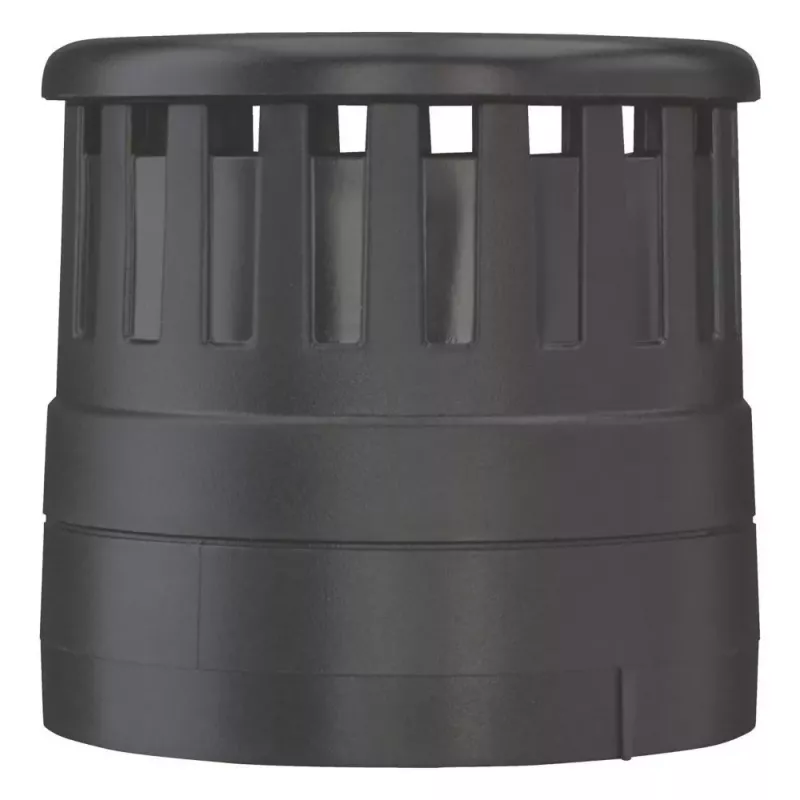

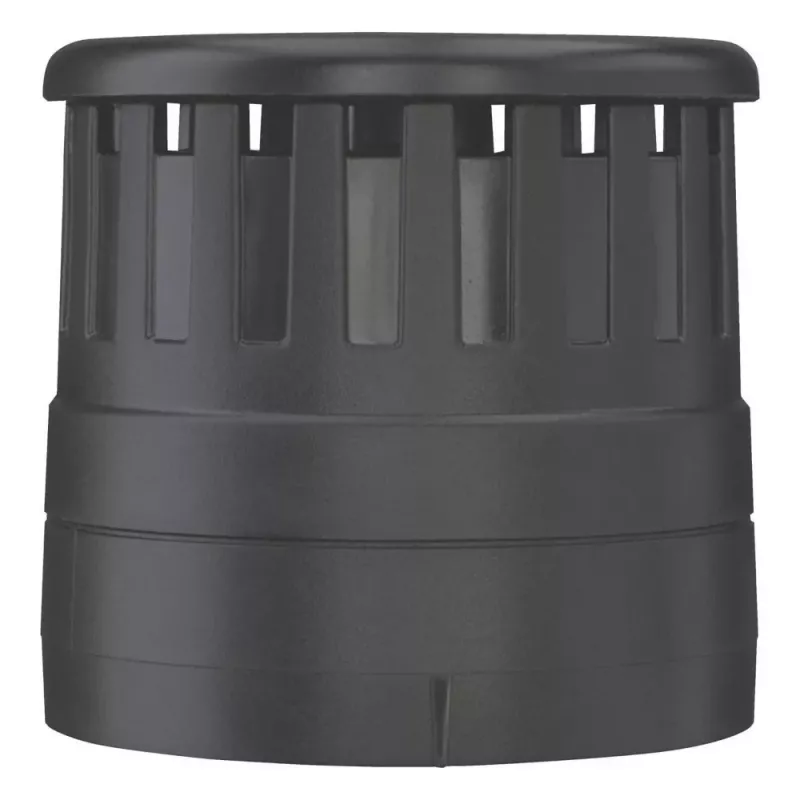

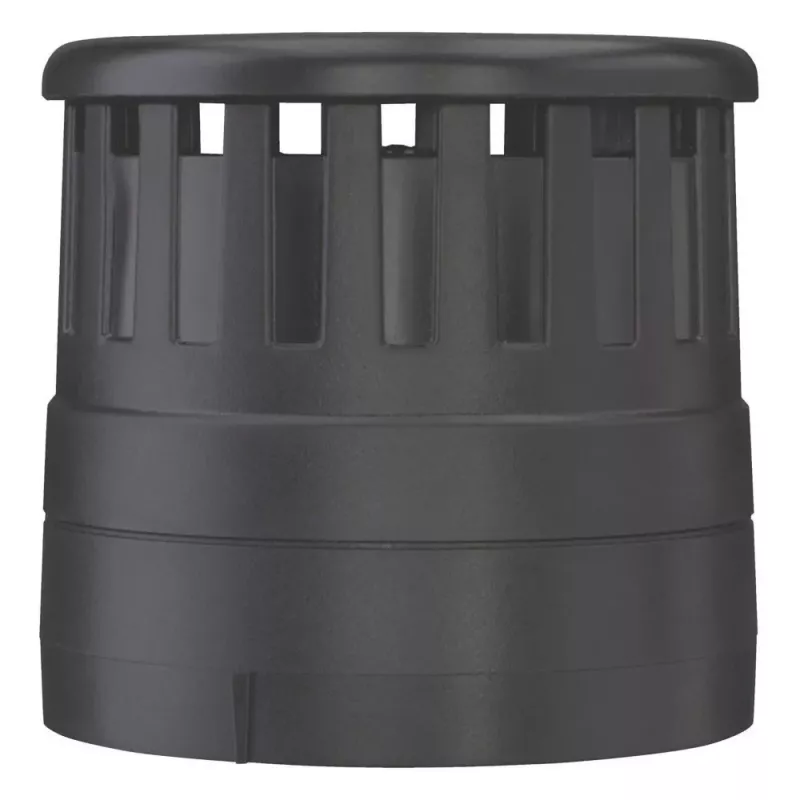

Eaton SL7-AP24-M akustinen äänimoduuli, 24 V AC/DC, 100 dB, IP66, musta 171287

Acoustic sounder module for the Eaton SL7 modular signal tower, delivering a powerful 100 dB audible alert at 1 metre. It operates on 24 V AC/DC and offers 8 selectable tones for flexible signalling.

Advantages

With an IP66 rating, this module withstands dust and powerful water jets, making it suitable for demanding industrial environments. The polycarbonate housing ensures durability, and the wide operating temperature range from -30 to +60 °C allows use in extreme conditions.

Suitable for

• Industrial machinery status indication
• Process control panels
• Safety warning systems
• Outdoor or washdown areas

Key specifications

• Operating voltage: 24 V AC/DC
• Sound output: 100 dB at 1 m
• Ingress protection: IP66
• Current consumption: 60 mA
• Number of tones: 8 selectable
• Housing material: polycarbonate
• Colour: black
• Connection: screw terminals
• Frequency range: 2.5–3.5 kHz
• Operating temperature: -30 to +60 °C

Recommendations

Mount this module on an SL7 base or on top of other SL7 elements to create a complete multi-tier signal tower. Select the tone that best fits your application and ensure the power supply matches the 24 V AC/DC requirement.
