Eaton T0-1-15431/EZ kytkin, 1-napainen, 20 A, musta/hopea 022245

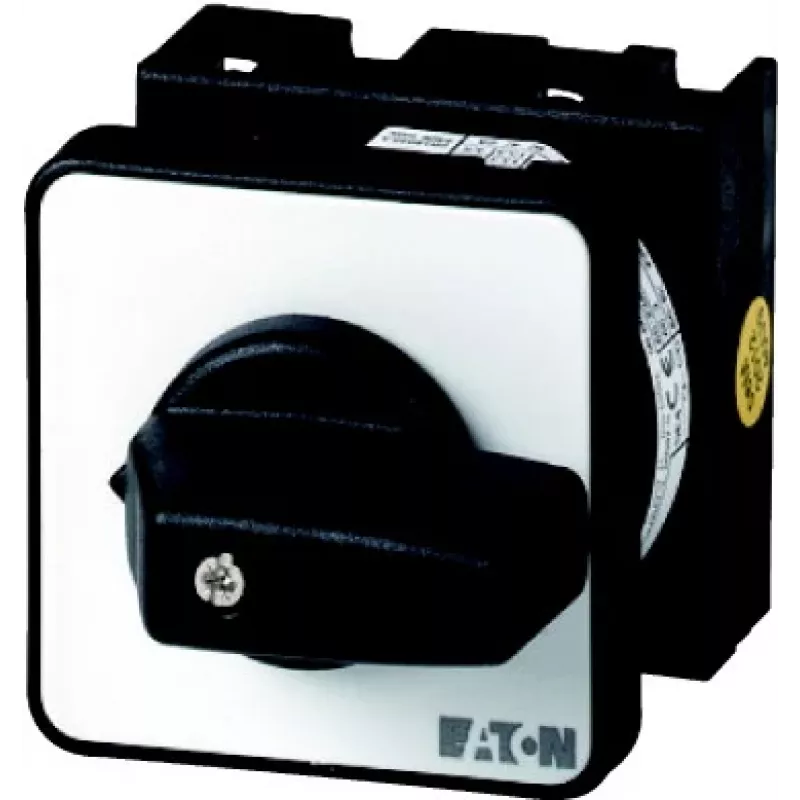

The Eaton T0-1-15431/EZ cam switch delivers reliable ON/OFF control in a compact, front-mount design. Rated for 20 A at 690 V AC, it handles demanding industrial loads with ease. The black handle and metallic front plate ensure clear visual status and robust operation.

Advantages

This switch offers a high degree of protection with IP65 on the front, making it suitable for harsh environments. Its 22.5 mm mounting hole allows quick installation into standard panels. The screw terminals provide secure and maintenance-free connections.

Suitable for

• Motor control circuits up to 5.5 kW (AC-23A, 400 V)
• Main switch applications in industrial machines
• Control panels requiring a compact, robust ON/OFF switch

Key specifications

• Switch type: Cam switch / Main switch
• Number of poles: 1
• Rated operational current: 20 A
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mounting: Front mounting, 22.5 mm hole
• Degree of protection: IP65 (front), IP20 (terminals)
• Switching angle: 90°
• Handle color: Black
• Front plate color: Metallic (silver/grey)
• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE

Recommendations

For reliable manual control in industrial environments, the Eaton T0-1-15431/EZ is an excellent choice. Its robust construction and high ratings ensure long service life. Always verify load compatibility and follow installation guidelines.
