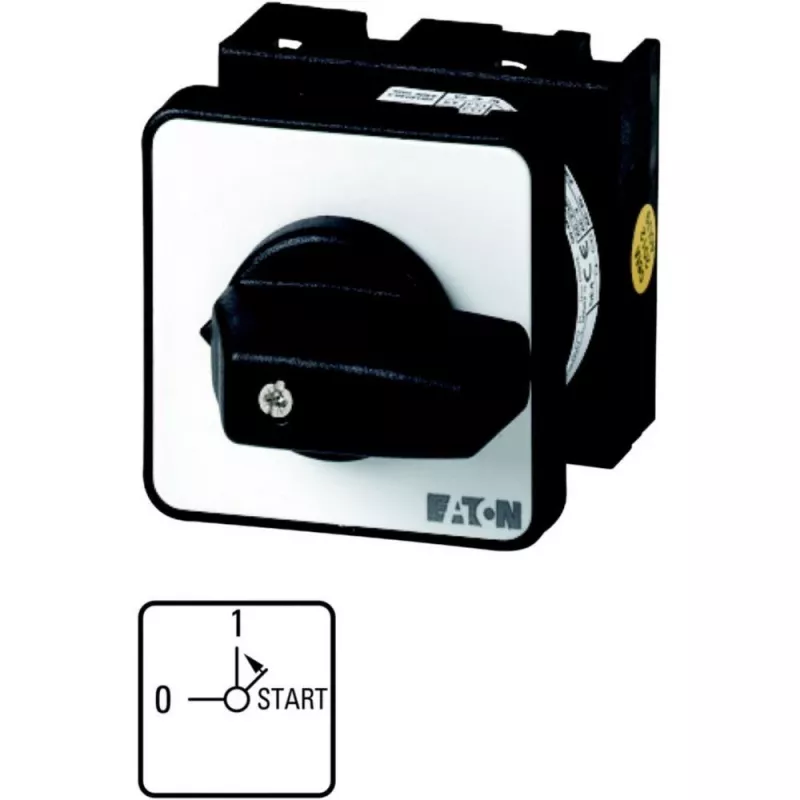

EATON T0-1-15511/E ohjauskytkin, 3-napainen, 20 A, IP65 019875

With a rated impulse withstand voltage of 6 kV and a short-time withstand current of 340 A, the EATON T0-1-15511/E control switch delivers robust performance in demanding industrial environments. This 3-pole rotary cam switch is engineered for reliable manual control of motors and other loads up to 20 A at 400 V AC, with a maximum operational voltage of 690 V AC. The front-mounted design with IP65 protection ensures safe operation even in dusty or wet conditions, while the black handle and 48 x 48 mm front plate offer a clean, professional appearance.

Overview

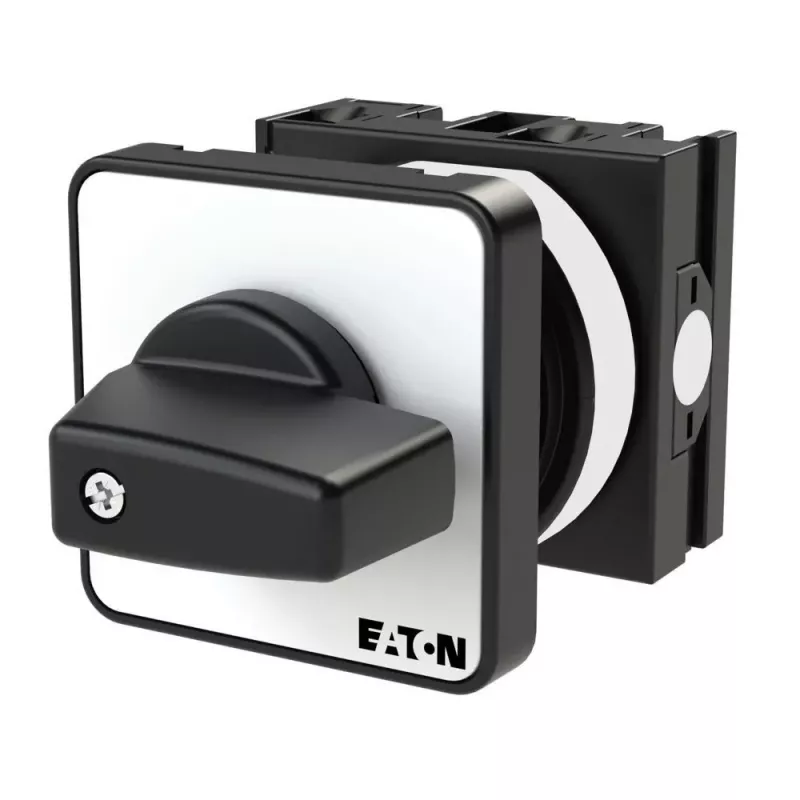

The EATON T0-1-15511/E is a rotary control switch from Eaton's T0 series, designed for front mounting with central fixing. It features two switching positions (0-1) with a 90° switching angle, providing simple on/off control. The switch is built to international standards IEC/EN 60947 and VDE 0660, ensuring compliance and safety. Screw terminals accept conductors from 1 to 2.5 mm², accommodating a wide range of wiring configurations. The operating temperature range of -25 to +50 °C makes it suitable for various industrial settings.

What stands out

• High electrical endurance: rated for 20 A at 400 V AC and 690 V AC maximum.
• Robust construction: front protection degree IP65, terminal protection IP20.
• Easy installation: front mounting with central fixing and screw terminals.
• Clear visual indication: black handle on a 48 x 48 mm front plate.
• Compliance with international standards: IEC/EN 60947, VDE 0660.

Technical details

• Switch type: Cam switch / Main switch
• Number of poles: 3
• Rated operational current (Iu): 20 A (at 400 V)
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-time withstand current (Icw): 340 A (1 s)
• Switching angle: 90°
• Number of switching positions: 2 (0-1)
• Actuation type: Rotary
• Mounting type: Front mounting, central fixing
• Front protection degree: IP65
• Terminal protection degree: IP20
• Connection type: Screw terminals
• Terminal capacity: 1 x (1-2.5) mm² / 2 x (1-2.5) mm²
• Handle color: Black
• Front plate dimensions: 48 x 48 mm
• Standards compliance: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C

Our verdict

A dependable and durable control switch for industrial applications, offering excellent electrical ratings and IP65 front protection. Its compact size and straightforward installation make it a practical choice for panel builders and maintenance professionals.
