Eaton T0-2-8900/I1/SVB 3-napainen pääkytkin 20 A, punainen/keltainen 207151

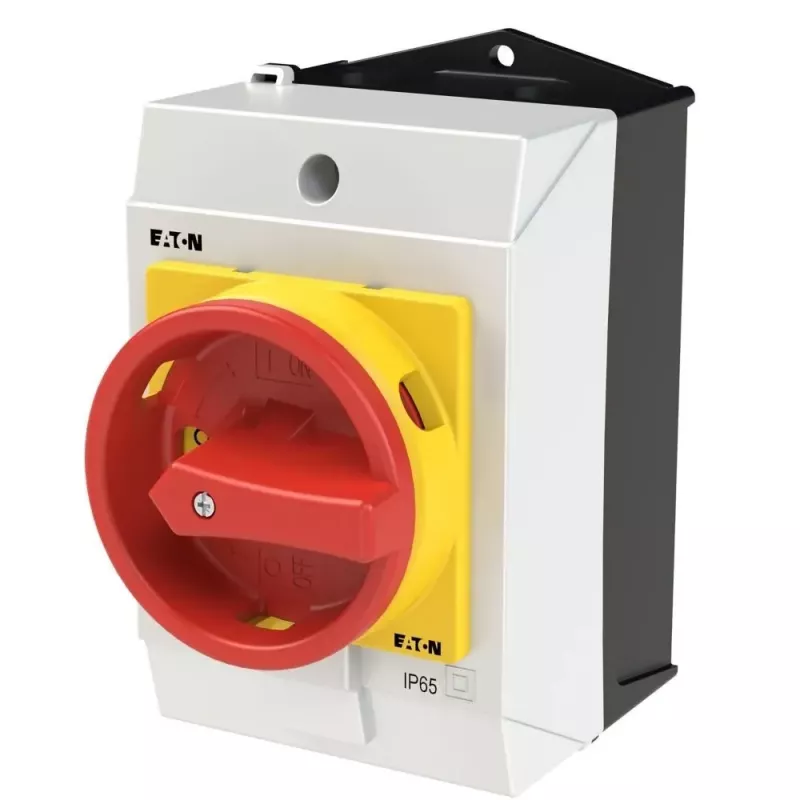

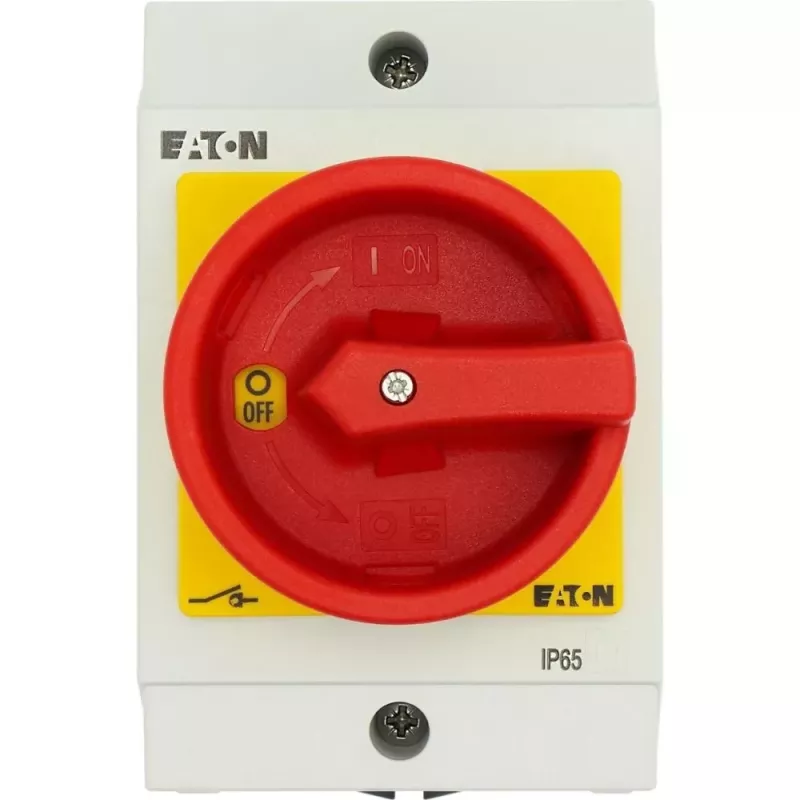

Industrial electricians and panel builders use the Eaton T0-2-8900/I1/SVB as a compact 3-pole main switch in control cabinets and machine disconnects. It mounts directly into an insulated enclosure and provides a clear ON-OFF function with a red handle and yellow front plate for quick visual identification.

Key specifications

• Switch type: Main switch / Cam switch
• Number of poles: 3
• Rated operational current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Switching function: ON-OFF (I-O)
• Number of switching positions: 2
• Mounting type: Surface mounting (in insulated enclosure)
• Enclosure protection rating: IP65
• Handle colour: Red
• Front plate colour: Yellow
• Terminal type: Screw terminals
• Rated power (AC-23A, 400 V): 5.5 kW
• Rated power (AC-3, 400 V): 4 kW
• Rated short-circuit current (Icw): 0.32 kA (1 s)
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Series: T0

Why choose it

The T0 series is a proven Eaton switch line for industrial applications. The IP65 enclosure protection allows use in dusty or wet environments, and the screw terminals ensure secure connections. The red handle and yellow front plate provide high visibility and safety.

Ideal use cases

• Main disconnects for small machines
• Control panel isolation switches
• Motor disconnects up to 5.5 kW
• Heating and lighting circuit control

Good to know

The switch complies with IEC/EN 60947 and VDE 0660. It is designed for surface mounting inside an insulated enclosure (enclosure not included).
