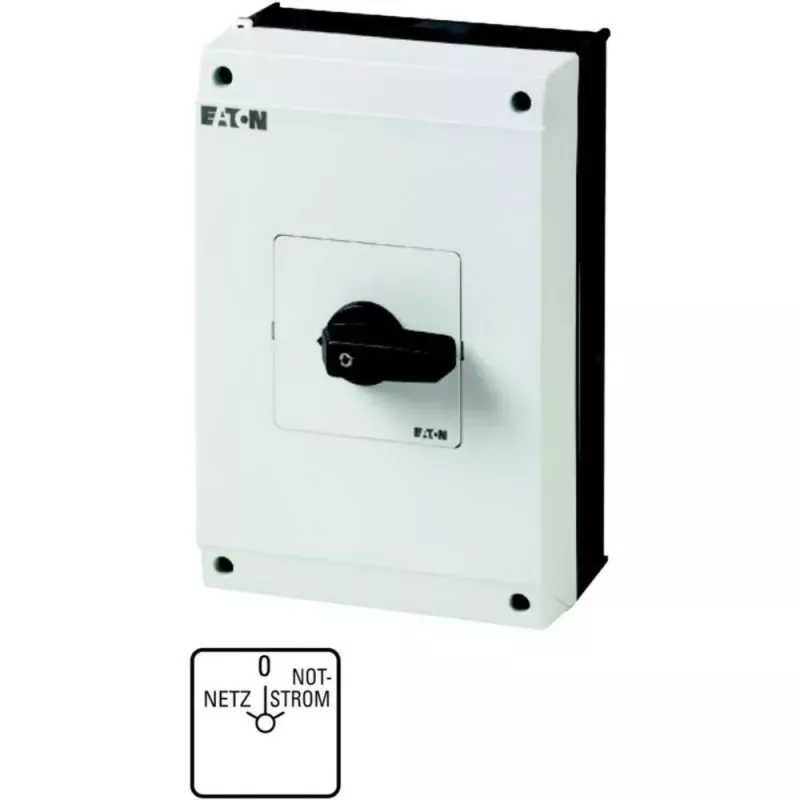

Eaton T5B-4-8902/I4 4-napainen nokkakytkin, 20 A, 690 V AC, musta/valkoinen 207237

4-pole cam switch with rotary knob actuator, rated for 20 A uninterrupted current and 690 V AC operational voltage. Front-mounted design with IP65 front protection and screw terminals.

Advantages

Robust switching for industrial control circuits, with clear 0-1 positions and 90° switching angle. Front plate in white with black actuator provides clear visual status.

Suitable for

• Motor control circuits up to 5.5 kW at 400 V AC-23A
• Maintenance and service switches
• Industrial control panels

Key specifications

• Switch type: Cam switch
• Number of poles: 4
• Switching positions: 2 (0-1)
• Switching angle: 90°
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Rated operational power (AC-23A, 400 V): 5.5 kW
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Mounting type: Front mounting, central mounting
• Actuator type: Rotary knob
• Actuator color: Black
• Front plate color: White
• Protection degree (front): IP65
• Protection degree (terminals): IP20
• Terminal type: Screw terminals
• Operating temperature range: -25 to +50 °C
• Number of switching stages: 1

Recommendations

Verify panel cutout dimensions before installation. Use appropriate cable lugs for 20 A current rating.
