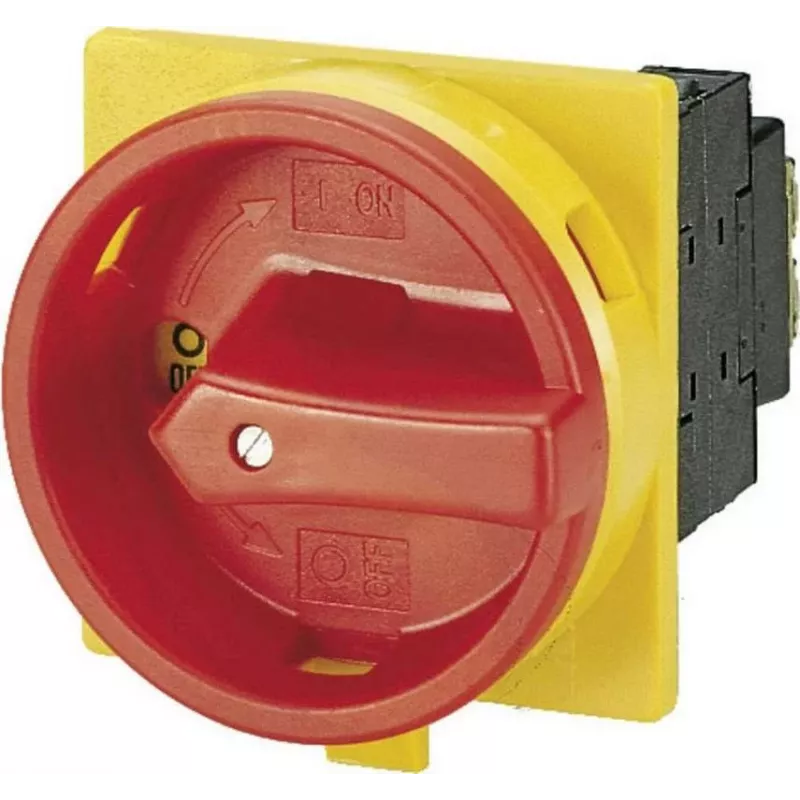

Eaton TM-2-8293/E/SVB lukittava kytkin 10 A 2-napainen 90° punainen/keltainen 45485

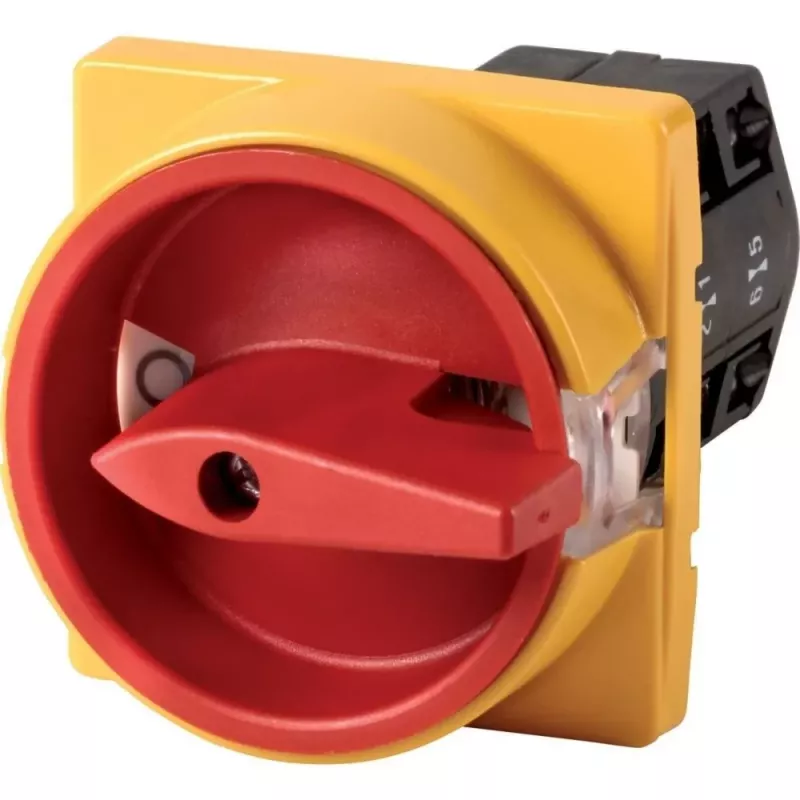

Rated at 10 A and 690 V AC with a 6 kV impulse withstand, this Eaton cam switch delivers uncompromising safety in a compact front-mount design. The red rotary handle and yellow front plate provide clear visual status, while the lockable OFF position prevents unauthorized activation during maintenance.

Overview

The Eaton TM-2-8293/E/SVB is a robust 2-pole cam switch engineered for industrial control and isolation. It offers a 90° switching angle with two positions (0-1), making it ideal as a main switch or ON-OFF control. The switch meets IEC/EN 60947 and VDE 0660 standards, ensuring reliable performance in demanding environments.

What stands out

• Lockable OFF position: Accepts up to 3 padlocks for safe lockout/tagout procedures.
• High electrical ratings: 10 A operational current, 690 V insulation voltage, and 6 kV impulse withstand.
• Durable construction: IP65 front protection against dust and water jets; IP20 terminals.
• Clear indication: Red handle on yellow plate for easy status recognition.
• Wide temperature range: Operates from -25°C to +50°C.

Technical details

• Switch type: Cam switch
• Function: Main switch / ON-OFF switch
• Rated operational current (Iu): 10 A
• Number of poles: 2
• Switching positions: 2 (0-1)
• Switching angle: 90°
• Lockability: Lockable in 0 (Off) position
• Actuator color: Red rotary handle
• Front plate color: Yellow
• Mounting type: Front mounting
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C

Our verdict

A reliable and safe choice for industrial switching applications, the Eaton TM-2-8293/E/SVB combines high electrical performance with a lockable design that prioritizes worker safety. Its clear visual indicators and robust construction make it a dependable component for any control panel.
