Eaton uppoasennettava jakokeskus 5-rivinen, 60 moduuliyksikköä KLV-60HWP-F (302412)

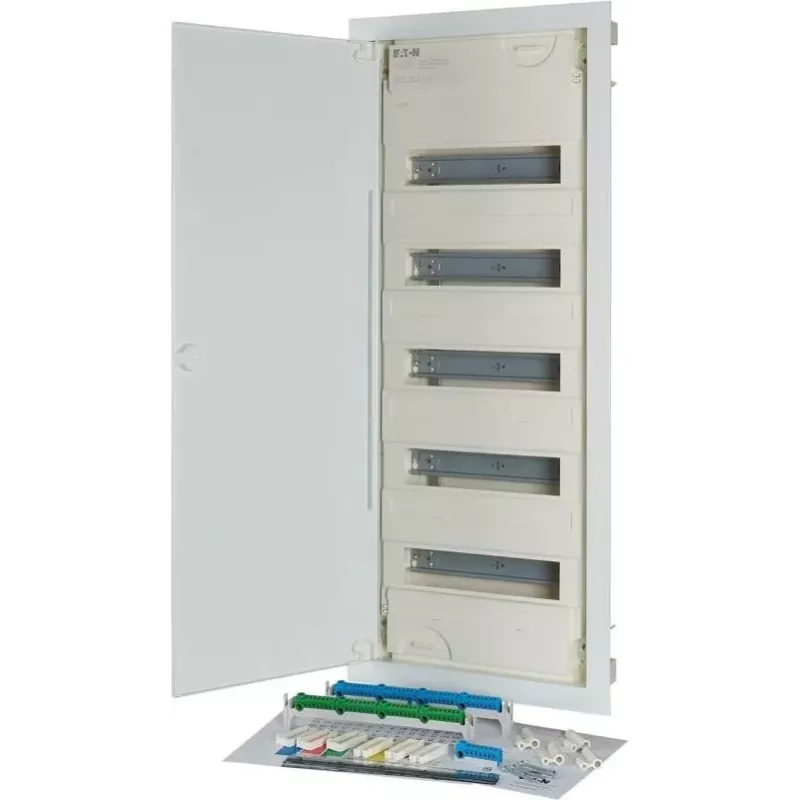

Electricians installing a flush-mounted distribution board in a residential or commercial cavity wall will find the Eaton KLV-60HWP-F a practical choice. This 5-row board provides 60 module units (12 per row) for circuit breakers, residual current devices, and other modular devices. The housing is made of white polystyrene, while the door is steel, offering a clean finish and basic protection against accidental contact when closed (IP30).

Key specifications

• Mounting type: Cavity wall (flush-mounted)
• Number of rows: 5
• Module units: 60 (12 per row)
• Door material: Steel
• Housing material: Plastic (polystyrene)
• Colour: White (RAL 9016)
• Rated voltage: 400 V AC
• Rated current: 63 A
• Installation depth: 96 mm
• External dimensions: 820 mm height, 360 mm width
• PE/N terminals: Included (plug-in terminals)
• Glow wire test: 850 °C
• Standards: DIN VDE 0603-1, DIN 43871

Why choose it

The board offers a high module capacity in a compact flush-mounted design, suitable for modern installations where space is limited. The steel door provides durability, and the white finish blends with interior walls. The inclusion of PE/N terminals simplifies wiring.

Ideal use cases

• Residential electrical distribution
• Commercial small to medium installations
• Renovation projects requiring flush mounting

Good to know

The board is self-extinguishing and has cable knockouts on top, bottom, and sides for flexible entry. It is designed for cavity wall installation with an installation depth of 96 mm.
