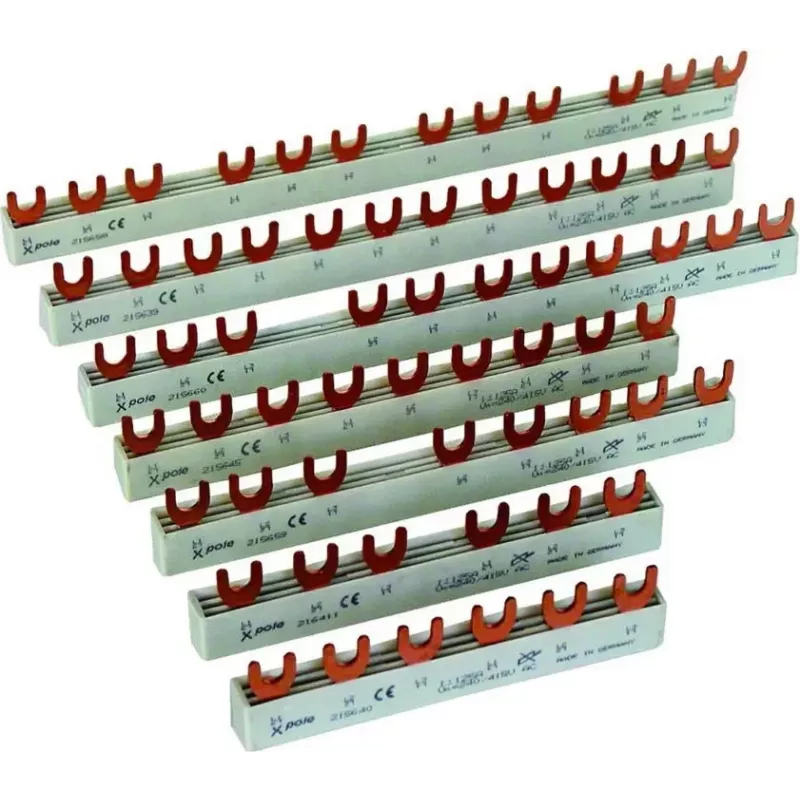

Eaton VG-4PHAS/12MODUL 4-napainen vaihekisko, 12 moduulia, punainen 215643

The Eaton VG-4PHAS/12MODUL is a 4-pole phase busbar designed for power distribution in modular DIN rail installations. Its pin-type connection system enables fast and secure linking of multiple devices, reducing wiring effort and improving installation reliability.

Advantages

The fully insulated copper construction ensures safe handling and long-term performance. With a 63 A rated current and 400 V AC rated voltage, it supports demanding distribution tasks. The red colour provides clear phase identification, and the 12-module length fits standard enclosures.

Suitable for

• Distribution boards and consumer units
• Connecting modular devices such as MCBs, RCDs, and RCBOs
• Three-phase + neutral supply arrangements
• DIN rail mounted installations

Key specifications

• Number of poles: 4-pole
• Number of modules: 12
• Rated current: 63 A
• Rated voltage: 400 V AC
• Conductor cross-section: 10 mm²
• Connection type: Pin type (comb busbar)
• Insulation: Fully insulated
• Conductor material: Copper
• Module pitch: 18 mm
• Mounting: For DIN rail mounted devices
• Degree of protection: IP20 (when installed)
• Operating temperature: -25°C to +50°C

Recommendations

Pair with Eaton xPole series modular devices for optimal compatibility and performance.
