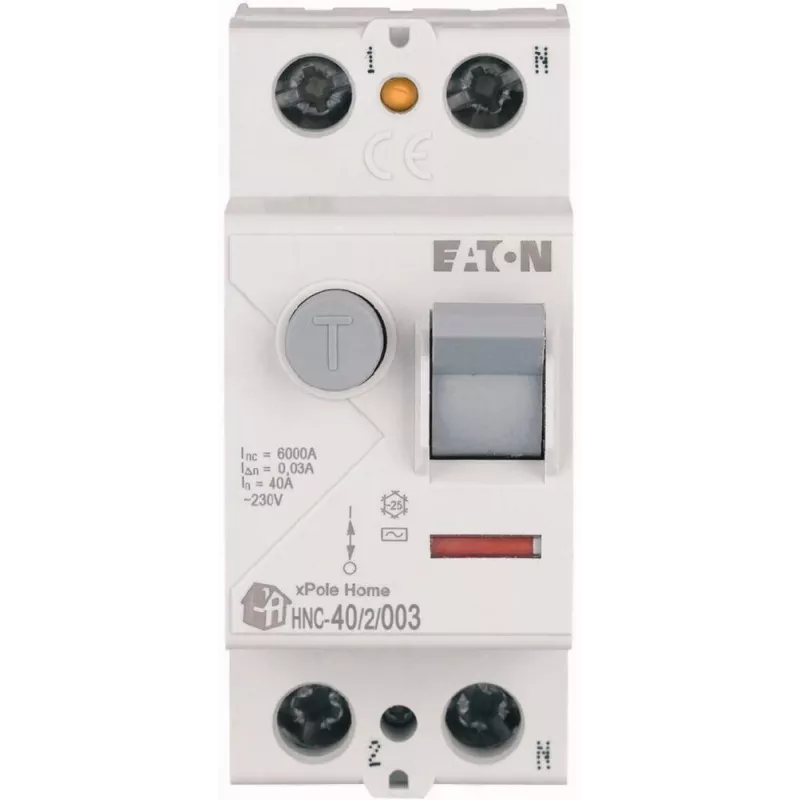

EATON xPole Home RCCB 40A 2P 30mA tyyppi AC 6kA vikavirtasuojakytkin

The EATON xPole Home RCCB is a high-quality residual current circuit breaker designed for reliable protection against earth faults. With a rated current of 40A and a rated residual operating current of 30mA, it ensures safety in residential and commercial installations. This 2-pole device is Type AC, suitable for sinusoidal alternating residual currents, and complies with IEC/EN 61008 standards.

Advantages

Compact 2-module design saves space on DIN rail. High breaking capacity of 6kA ensures robust performance. Easy installation with screw terminals accepting up to 35 mm² conductors. Long electrical and mechanical endurance for extended service life.

Suitable for

• Residential electrical panels
• Commercial buildings
• Industrial control systems
• Protection against indirect contact and fire risk

Key specifications

• Rated current: 40 A
• Rated residual current: 30 mA
• Type: AC
• Poles: 2
• Rated voltage: 230/400 V AC
• Breaking capacity: 6 kA
• Mounting: DIN Rail
• Width: 2 modules (35 mm)
• Standards: IEC/EN 61008

Recommendations

For optimal safety, pair this RCCB with an appropriate MCB from the same series. Ensure correct wiring and periodic testing as per local regulations.
