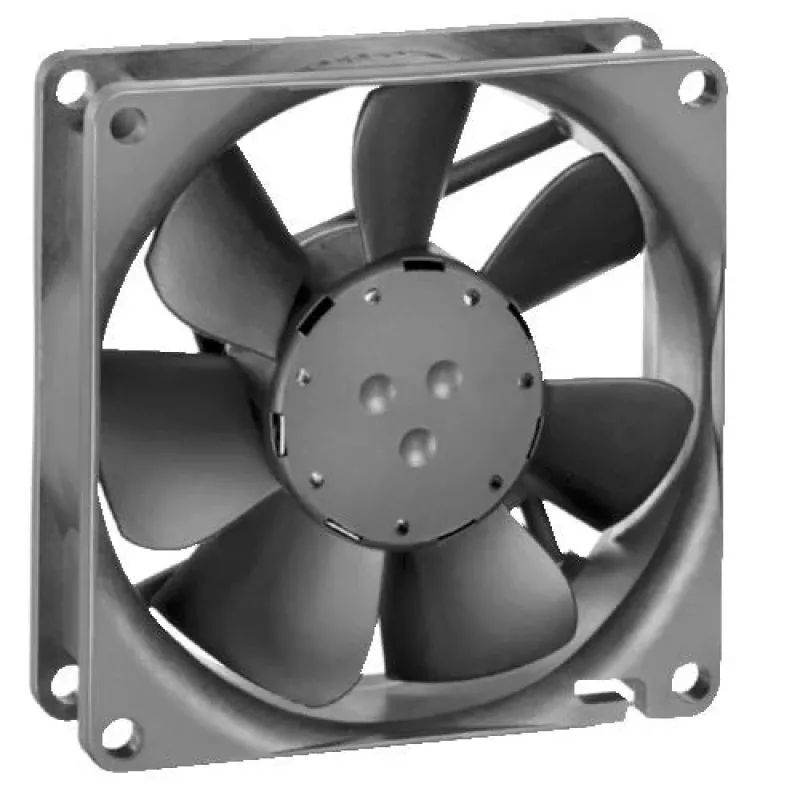

EBM Papst 8412 NLE DC-akselituuletin 80x80x25mm 12V 33m³/h 9292506263

With an airflow of 33 m³/h at a noise level of just 26 dB(A), the EBM Papst 8412 NLE delivers efficient cooling for compact electronics. This 80 x 80 x 25 mm axial fan operates on 12 V/DC and consumes only 0.96 W, making it a low-power solution for continuous operation.

Overview

The 8412 NLE is a DC axial fan built for reliable performance in tight spaces. Its sleeve bearing design ensures quiet operation and a long service life of 40,000 hours at 40°C. The fan is constructed with a PBT plastic housing and PA plastic impeller, offering durability across a wide temperature range from -20 to +70 °C.

What stands out

• Low power consumption of 0.96 W
• Quiet operation at 26 dB(A)
• Compact 80 x 80 mm frame with 25 mm depth
• Long life expectancy of 40,000 hours
• Wide operating temperature range

Technical details

• Fan type: DC axial fan
• Operating voltage: 12 V/DC
• Airflow: 33 m³/h
• Current consumption: 0.08 A
• Rotational speed: 2500 RPM
• Static pressure: 20 Pa
• Bearing type: Sleeve bearing
• Connection: 2-wire leads, 300 mm length
• Housing material: PBT plastic
• Impeller material: PA plastic
• Operating temperature: -20 to +70 °C

Our verdict

A reliable and efficient cooling fan for applications where low noise and low power consumption are key. Its compact size and robust construction make it suitable for a variety of electronics.
