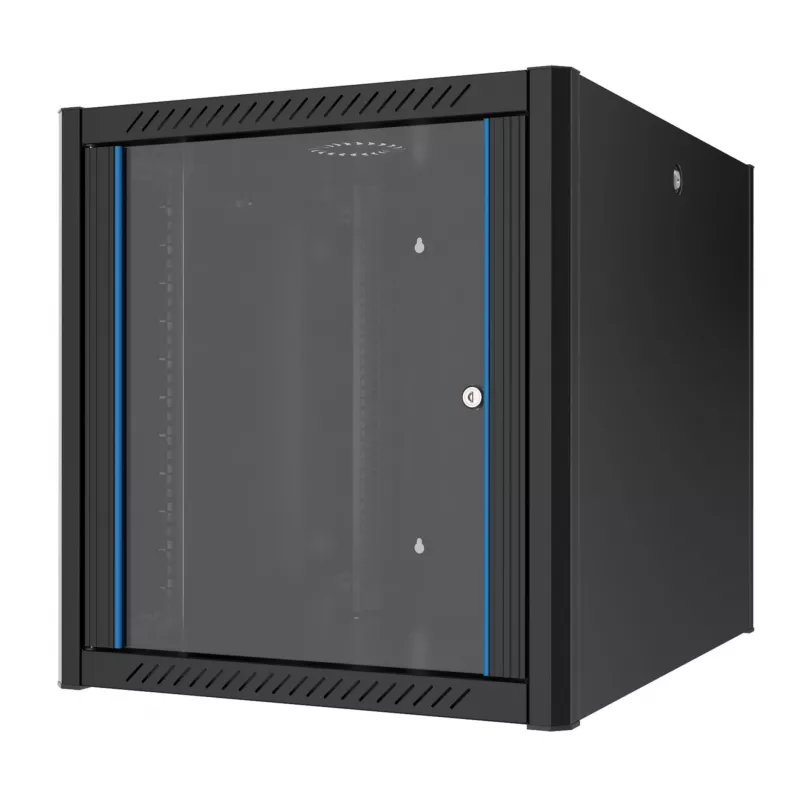

EFB Elektronik 19" seinäkotelo 12U, syvyys 800 mm, esiasennettu, RAL 9005 (691912TS.80)

For installations where floor space is at a premium, this EFB Elektronik 12U wall mount enclosure brings a full-depth 800 mm rack into a compact, pre-assembled package. Unlike many wall cabinets that sacrifice depth for size, the 691912TS.80 offers genuine 19-inch compatibility with adjustable rails that slide to accommodate servers, switches, and AV gear up to 60 kg total load. The lockable safety glass door adds a layer of physical security without hiding status LEDs, while the jet black powder-coated steel body blends into modern server rooms, offices, and industrial settings.

Highlights

• Pre-assembled steel construction – mount it on the wall and start installing equipment immediately
• 12U of 19-inch rack space with adjustable profile rails for flexible equipment depths

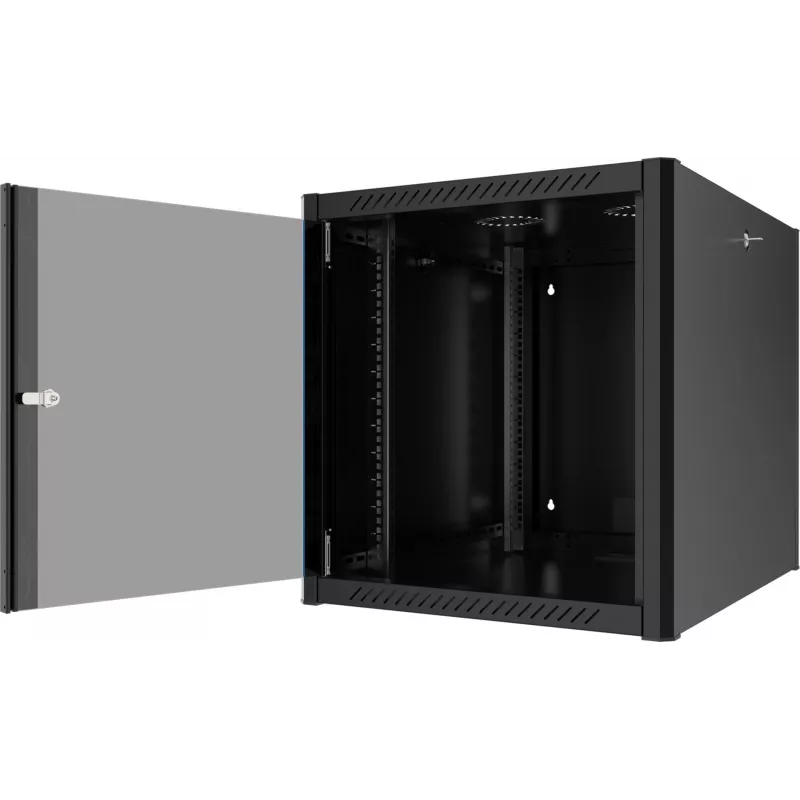

• Lockable safety glass front door with 180° opening for full access and visual monitoring
• Removable side panels and top/bottom cable entry simplify cabling and maintenance
• Passive ventilation with optional fan unit mounting keeps airflow moving without noise
• RAL 9005 jet black powder-coated finish resists scratches and corrosion

In daily use

This enclosure is a practical choice for branch offices, retail back rooms, or AV racks in meeting spaces. The wall mount design keeps cables off the floor and equipment out of reach, while the glass door allows quick visual checks of link lights and device status. Because the side panels are removable, you can pre-terminate cables before hanging the cabinet, then slide the panels back on for a clean look. The adjustable rails mean you are not locked into a fixed depth – set them to match your deepest switch or UPS, and the 60 kg load capacity covers most small-to-medium network stacks.

Full specifications

• Rack standard: 19-inch
• Rack units: 12U
• Mounting type: Wall mount
• External dimensions (W x H x D): 600 x 635 x 800 mm
• Colour: RAL 9005 (Jet Black)
• Material: Steel, powder-coated
• Front door: Safety glass, lockable
• Side panels: Removable
• Cable entry: Top and bottom
• Load capacity: 60 kg
• Protection class: IP20
• Ventilation: Passive (optional fan unit mounting)
• Mounting rails: Adjustable 19-inch profile rails
• Door opening angle: 180°
• Assembly status: Pre-assembled

Final note

With its deep 800 mm chassis and pre-assembled design, the EFB 691912TS.80 is a straightforward way to add secure, professional rack space without taking up valuable floor area.
