EFB Elektronik 691716IP55.2G seinäkotelo 16U 600x600 mm IP55 lasiovi vaaleanharmaa RAL7035

In industrial and outdoor environments, network equipment is constantly exposed to dust, moisture, and unauthorized access. The EFB Elektronik 691716IP55.2G wall-mount cabinet provides a robust, IP55-rated enclosure that protects your 19-inch rack-mount devices while saving valuable floor space. With a 16U capacity, 600 mm depth, and a lockable glass door, it keeps your infrastructure secure, organized, and easily monitored.

Who is it for

This cabinet is ideal for IT administrators, system integrators, and facility managers who need to deploy network switches, patch panels, or servers in space-constrained or semi-exposed locations such as workshops, warehouses, corridors, or covered outdoor areas. It suits anyone requiring a compact, wall-mounted solution with reliable protection against environmental contaminants.

Main features

• IP55 protection rating guards against dust and water jets, suitable for indoor and protected outdoor use.
• 16U of 19-inch rack space with depth-adjustable mounting rails for flexible equipment installation.

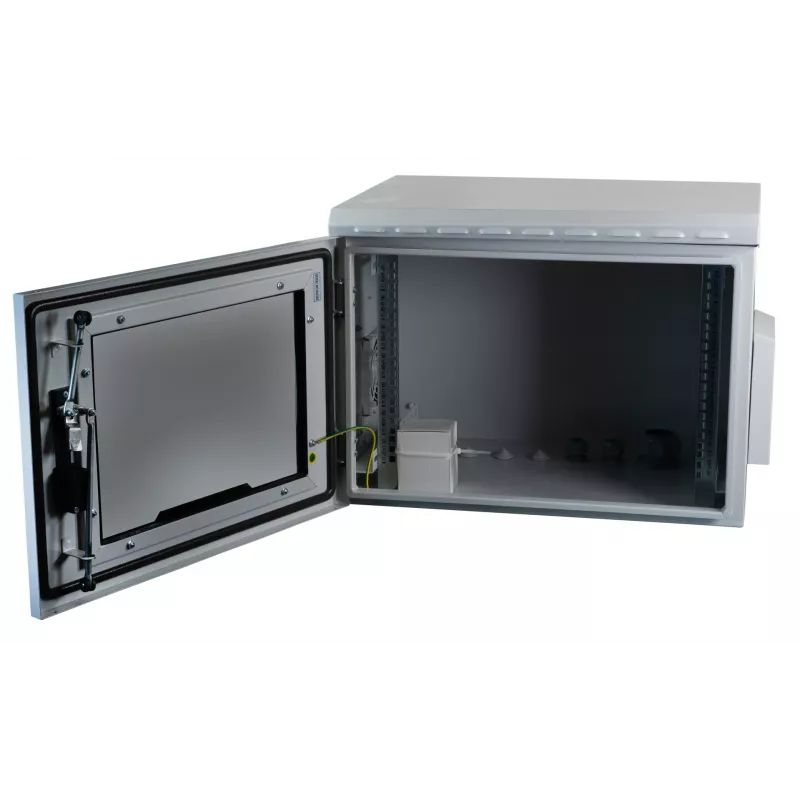

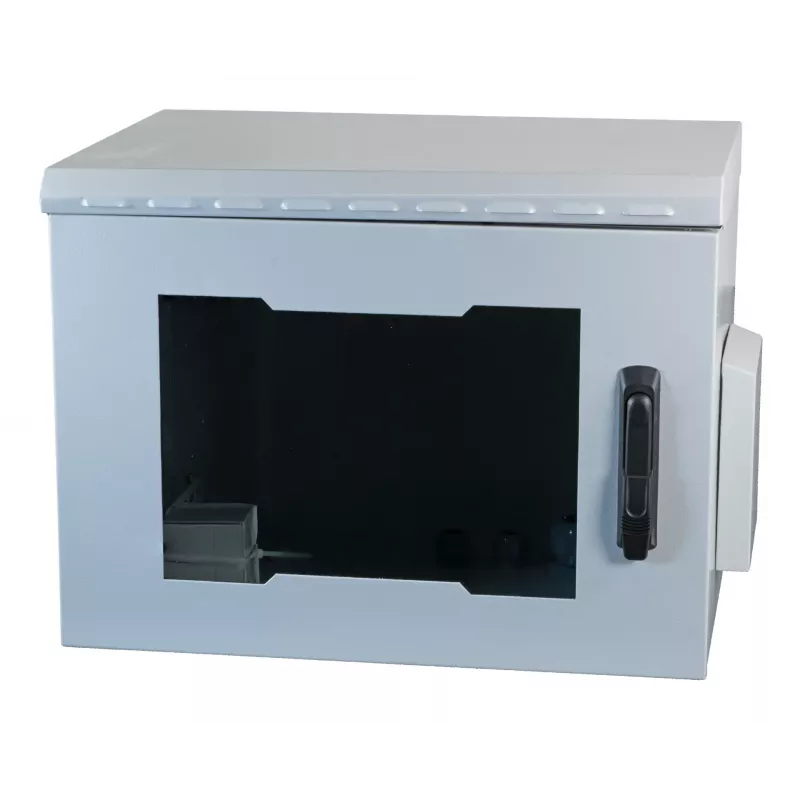

• Single-section safety glass door with single-point locking and profile half-cylinder for secure access.
• Top and bottom cable entries with brush strips prevent dust ingress while allowing clean cable routing.
• Fixed side panels with ventilation slots promote passive airflow; provision for optional fan unit.
• Robust sheet steel construction with light grey RAL7035 powder coating for durability and a professional look.
• Static load capacity of 100 kg supports a wide range of networking hardware.

Specifications

• Rack standard: 19 inch
• Rack units: 16U
• Mounting type: Wall-mounted
• External dimensions (W x D x H): 600 x 600 x 830 mm
• Material: Sheet steel
• Colour: Light grey (RAL 7035)
• Door: Single-section safety glass
• Locking: Single-point locking with profile half-cylinder
• Cable entry: Top and bottom with brush strips
• Side panels: Fixed, with ventilation slots
• Mounting rails: 2x 19" profile rails, depth-adjustable
• Ventilation: Passive, provision for fan unit
• Load capacity (static): 100 kg
• Compliance: IEC 60297-3-100

Tips

When installing, ensure the wall can support the combined weight of the cabinet and equipment. Use appropriate anchors and consider a plywood backboard for added stability. For active equipment, add a fan unit to maintain optimal operating temperatures. The glass door allows visual monitoring of status LEDs without opening the cabinet, reducing the risk of accidental disruption.
