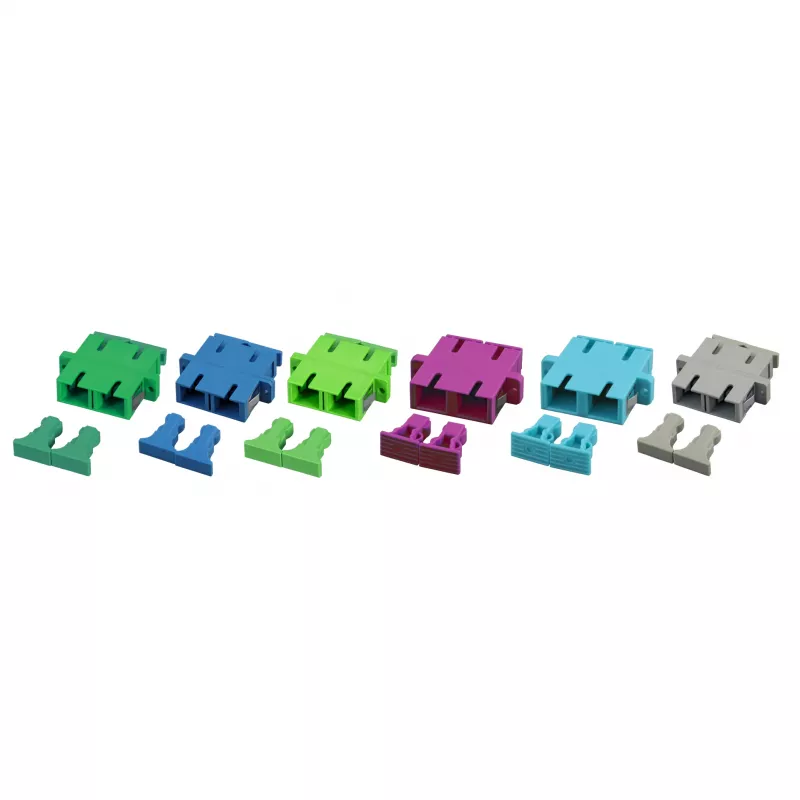

EFB Electronic liitin SC-Duplex OM3 muovi aqua kotelo

The EFB Electronic Coupling SC-Duplex OM3 Plastic Aqua Housing is a high-performance fiber optic adapter designed for reliable interconnections in multimode networks. This coupling ensures low insertion loss and high return loss, making it ideal for demanding data center and enterprise applications.

Advantages

Precision-engineered with zirconia ceramic sleeves for optimal alignment and durability. The plastic housing in aqua color provides easy identification for OM3 fiber grade. Compact flange mount design allows for secure panel installation.

Suitable for

• Interconnecting SC-Duplex fiber optic patch cables in structured cabling systems
• Data centers, telecommunications rooms, and LAN environments
• OM3 multimode fiber networks requiring high bandwidth

Key specifications

• Connector Type: SC-Duplex
• Fiber Mode: Multimode
• Fiber Class: OM3
• Sleeve Material: Zirconia Ceramic
• Housing Material: Plastic
• Housing Color: Aqua
• Mounting Type: Flange Mount
• Insertion Loss: < 0.2 dB (typical)
• Return Loss: > 30 dB (typical)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Mating Cycles: > 500
• Standards: IEC 61754-4, TIA/EIA-604-3
• Dust Caps Included: Yes

Recommendations

For optimal performance, pair with OM3 patch cables and ensure clean connections. Suitable for use in both horizontal and backbone cabling.
