EFB Electronics -kuituverkkokaapeli MT-RJ multimode OM2 1 m oranssi

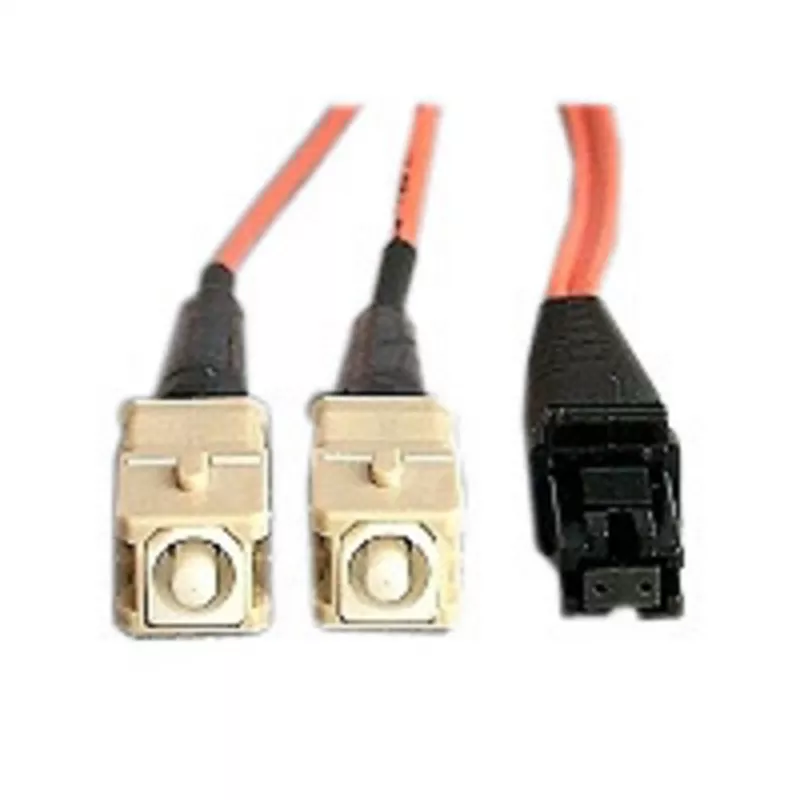

The EFB Electronics Fiber Optic Patch Cable is a high-performance MT-RJ multimode patch cord designed for reliable data transmission in data centers, LANs, and SANs. With OM2 fiber grade and duplex construction, this cable ensures efficient connectivity for 1 Gbps and 10 Gbps networks.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH jacket provides safety in confined spaces, while the orange color aids easy identification. The 1-meter length is ideal for short-distance connections within racks or patch panels.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber optic patch panels

Key specifications

• Cable type: Fiber Optic Patch Cable
• Connector type: MT-RJ (Male) to MT-RJ (Male)
• Fiber type: Multimode OM2
• Core/Cladding: 50/125 µm
• Number of fibers: 2 (Duplex)
• Cable length: 1 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable color: Orange
• Bandwidth: 500 MHz-km at 850nm and 1300nm
• Maximum insertion loss: 0.3 dB
• Minimum return loss: 30 dB
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, REACH, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is polarity A-B (crossed) and suitable for use with MT-RJ interfaces.
