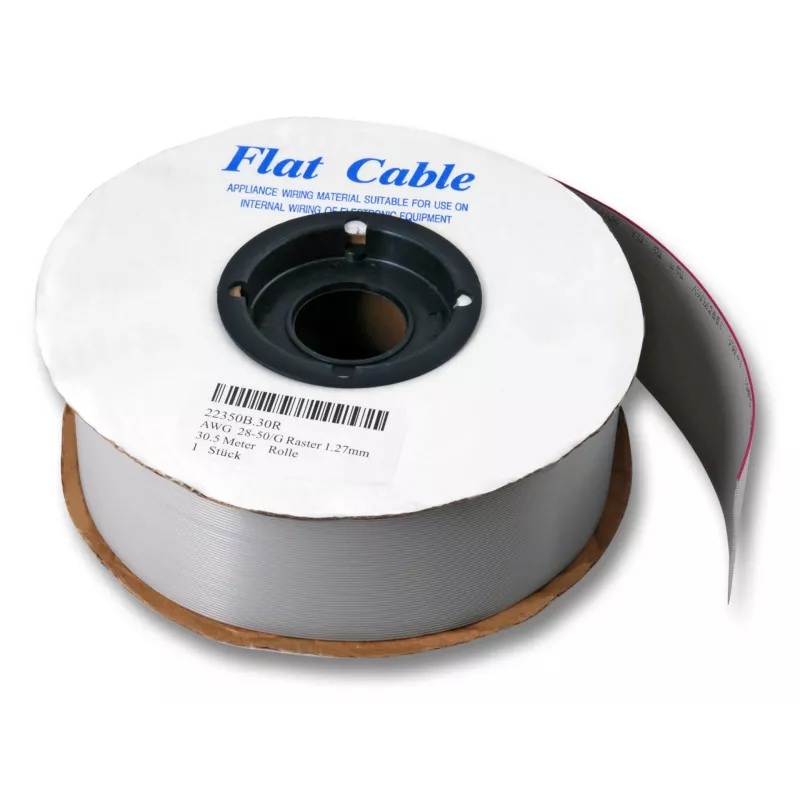

EFB Electronics lattakaapeli AWG 28-10/G 30,5 m rulla RM 1,27 10-napainen

The EFB Electronics ribbon cable AWG 28-10/G is a high-quality flat ribbon cable designed for reliable data and signal transmission. With 10 conductors, 28 AWG wire gauge, and a pitch of 1.27 mm, this cable is ideal for IDC connector applications. Supplied on a 30.5-meter roll, it offers flexibility for various wiring projects.

Advantages

This ribbon cable features tinned copper conductors for excellent conductivity and corrosion resistance. The PVC insulation provides durability and a rated temperature of 105 °C, ensuring long-lasting performance. The grey color and compact width of 13.97 mm make it easy to identify and route in tight spaces.

Suitable for

• Internal wiring of electronic devices
• Computer and peripheral connections
• Prototyping and development boards
• IDC connector terminations

Key specifications

• Cable Type: Flat Ribbon Cable
• Number of Conductors: 10
• Wire Gauge: 28 AWG
• Conductor Pitch: 1.27 mm (0.050 inch)
• Cable Length: 30.5 m
• Packaging: Roll
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Colour: Grey
• Rated Voltage: 300 V
• Rated Temperature: 105 °C
• Current Rating: 1.4 A per conductor
• Overall Cable Width: 13.97 mm
• Compatibility: IDC Connectors

Recommendations

For optimal performance, use with compatible IDC connectors and ensure proper termination. Store in a cool, dry place to maintain cable integrity.
