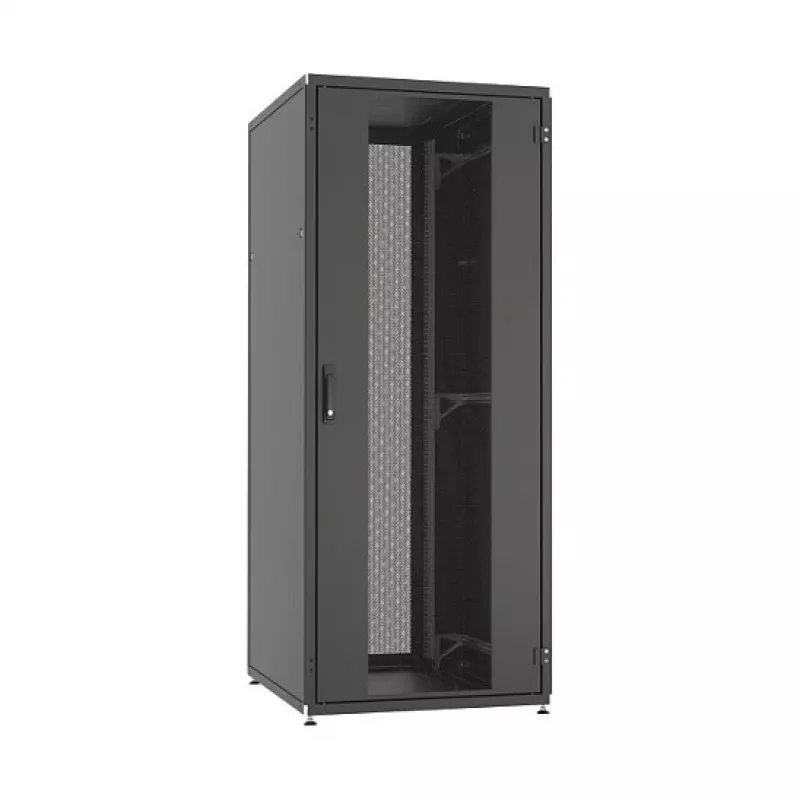

EFB Electronics PRO 42U 19 inch palvelinkaappi 800x800mm, rei'itetyt ovet, RAL 7035 (PRO-4288GR.P1)

This 42U 19-inch server rack cabinet delivers a robust, secure, and well-ventilated housing for critical IT equipment in data centers and network rooms. Its welded steel frame supports up to 800 kg static load, while single-piece perforated front and rear doors enable efficient passive airflow.

Advantages

The cabinet combines durability, security, and efficient airflow management. Perforated steel doors provide passive cooling, reducing the need for active fans. Adjustable mounting rails accommodate equipment of varying depths, and lockable doors and side panels ensure security. The 180-degree door opening angle facilitates easy access for installation and maintenance.

Suitable for

• Data centers and server rooms requiring a 42U 19-inch rack
• Network infrastructure including switches, patch panels, and cable management
• Industrial and commercial IT environments needing robust, secure equipment housing

Key specifications

• Rack capacity: 42U
• Rack standard: 19 inch (48.3 cm)
• External dimensions (WxDxH): 800 x 800 x 2050 mm
• Colour: RAL 7035 (light grey)
• Front door: Single-piece, perforated steel
• Rear door: Single-piece, perforated steel
• Side panels: Removable, lockable
• Material: Steel
• Static load capacity: 800 kg
• Protection class: IP20
• Cable entry: Top and bottom with brush strips
• Mounting rails: Adjustable depth, front and rear
• Ventilation: Passive (via perforated doors)
• Construction: Welded frame
• Locking system: Key lock for doors and side panels
• Included accessories: Levelling feet
• Compliance: RoHS, CE
• Door opening angle: 180 degrees

Recommendations

For optimal airflow and equipment longevity, ensure adequate clearance around the cabinet and use cable management accessories to maintain organized airflow paths.
