EFB-ELEKTRONIK DIN-kiskolaatikko OM4 6x SC-duplex-liitäntä ilman pigtaileja (BHS60203.6OM4)

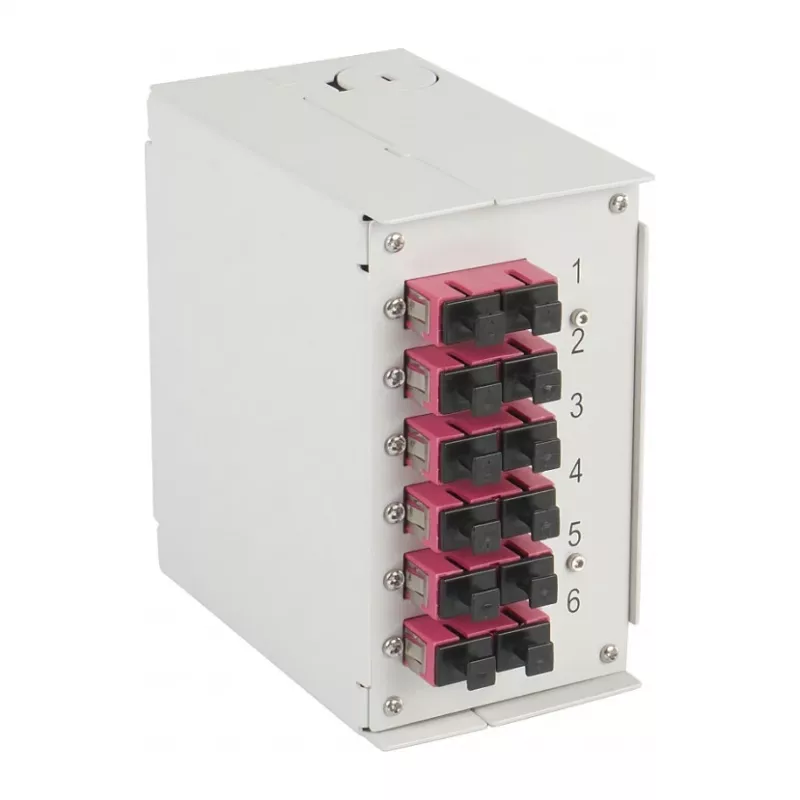

The EFB-ELEKTRONIK DIN Rail Box OM4 6x SC-Duplex Coupling without Pigtails (BHS60203.6OM4) is a high-quality fiber optic enclosure designed for industrial and building automation applications. It provides reliable connectivity for multimode OM4 fibers in a compact DIN rail mountable form factor.

Advantages

This DIN rail box offers easy installation on standard DIN rails (EN 60715) and features pre-punched cable entry points for M20/M25 glands. The powder-coated steel housing ensures durability and protection against dust and light impacts (IP20). With 6 SC-Duplex adapters, it supports up to 12 fibers, making it ideal for structured cabling in data centers and industrial environments.

Suitable for

• Industrial fiber optic networks
• Building automation systems
• Data center patching
• DIN rail mounted enclosures

Key specifications

• Fiber category: Multimode OM4
• Connector type: SC-Duplex
• Number of ports: 6x SC-Duplex
• Maximum fiber capacity: 12 fibers
• Mounting: DIN rail (EN 60715)
• Housing material: Powder-coated steel sheet
• Housing color: Light grey (RAL 7035)
• Pigtails included: No
• Adapter sleeve material: Zirconia ceramic
• Cable entry points: 2x M20/M25 (pre-punched)
• Splice tray capacity: 1x splice cassette for up to 12 splices
• Protection class: IP20
• Operating temperature: -20°C to +70°C
• Dimensions (HxWxD): 130 x 100 x 40 mm
• RoHS compliant: Yes
• REACH compliant: Yes

Recommendations

For optimal performance, use with OM4 patch cables and appropriate splice cassettes. Ensure proper cable management and grounding as per local regulations.
