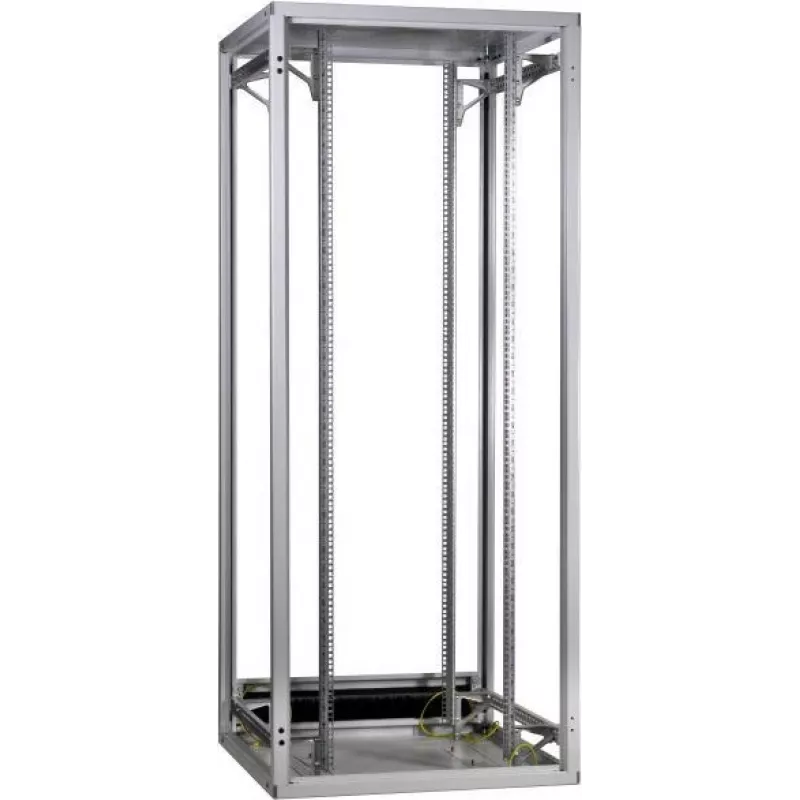

EFB PRO-4282GR.0D 19 inch verkkokaappi 42U 800x1200mm vaaleanharmaa RAL7035

The EFB PRO-4282GR.0D is a high-quality 19-inch network cabinet from the PRO-Modular series, designed for professional server and network environments. With 42 height units (42U) and dimensions of 800x1200 mm, this freestanding rack offers ample space for mounting servers, switches, patch panels, and other 19-inch equipment. The cabinet is finished in light grey (RAL 7035) and features a robust sheet steel construction with a static load capacity of up to 1000 kg.

Advantages

This network cabinet provides excellent security and accessibility. The front single-leaf safety glass door and rear steel door are both lockable, protecting your valuable equipment. Removable and lockable side panels allow easy access for installation and maintenance. The cabinet is pre-assembled for quick setup, and includes levelling feet and castors for flexible positioning. A grounding kit is also included for safe operation.

Suitable for

• Data centers and server rooms
• IT infrastructure for medium to large enterprises
• Network and telecommunications installations
• Mounting 19-inch equipment such as servers, switches, and patch panels

Key specifications

• Rack Units: 42U
• Rack Standard: 19 inch
• External Width: 800 mm
• External Depth: 1200 mm
• External Height: 2000 mm
• Colour: Light Grey (RAL 7035)
• Front Door: Single-leaf safety glass door, lockable
• Rear Door: Single-leaf steel door, lockable
• Side Panels: Removable and lockable
• Load Capacity (Static): 1000 kg
• Material: Sheet steel
• Protection Class: IP20
• Cable Entry: Top and bottom, with brush strips
• Mounting Rails: 2 pairs (front and rear), depth-adjustable
• Ventilation: Passive ventilation, prepared for active fan units
• Feet/Castors: Levelling feet and castors included
• Locking System: Swivel handle with profile half cylinder
• Assembly: Pre-assembled
• Grounding: Grounding kit included

Recommendations

For optimal cable management, consider using EFB patch panels and cable management accessories. This cabinet is ideal for consolidating network equipment in a secure and organized manner.
