EFB RJ45-Hirose-liitin STP, TM31 vaaleanharmaa, 100 kpl, 3-osainen, Cat.6A

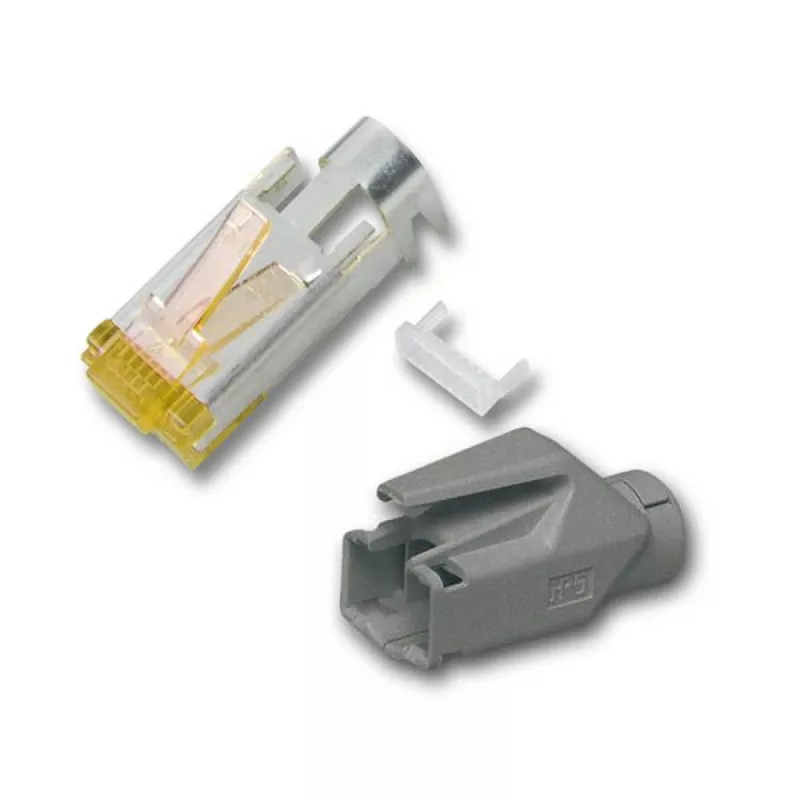

The EFB RJ45-Hirose Connector STP, TM31 Light Grey is a high-performance shielded modular plug designed for reliable data transmission in demanding network environments. Manufactured by HIROSE, this connector features a robust 3-element construction and supports Cat.6A performance, enabling 10 Gigabit Ethernet over twisted pair cables. The STP shielding provides excellent protection against electromagnetic interference, ensuring signal integrity in industrial and commercial applications.

Advantages

This connector offers superior durability with gold-plated contacts for corrosion resistance and reliable connectivity over 750 mating cycles. The 3-element design simplifies termination and enhances cable strain relief. Suitable for both solid and stranded conductors (AWG 23-26), it provides flexibility for various cabling needs. PoE support makes it ideal for powering devices like IP cameras and wireless access points.

Suitable for

• Data networking in enterprise and industrial environments
• Telecommunications infrastructure
• Power over Ethernet (PoE) applications
• High-speed data transmission up to 10 Gbps

Key specifications

• Connector Type: RJ45 Plug
• Performance Category: Cat.6A
• Shielding: STP (Shielded Twisted Pair)
• Manufacturer: HIROSE
• Series: TM31
• Color: Light Grey
• Quantity per Pack: 100 pieces
• Design: 3-Element Construction
• Contacts: 8P8C (8 Positions, 8 Conductors)
• Contact Plating: Gold (50µ-inch gold over nickel)
• Housing Material: Polycarbonate (PC)
• Termination Method: Crimp
• Cable Compatibility: Solid and Stranded Conductors (AWG 23-26)
• Cable Diameter: 6.0 - 8.0 mm
• Operating Temperature: -10°C to +60°C
• Mating Cycles: 750 minimum
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801 Class EA

Recommendations

For optimal performance, use with Cat.6A or higher rated cable and ensure proper crimping with a compatible tool. This connector is ideal for structured cabling systems requiring high reliability and shielding.
