EFB RJ45 Keystone Slimline Cat.6A suojattu painevalettu sinkki 10GE

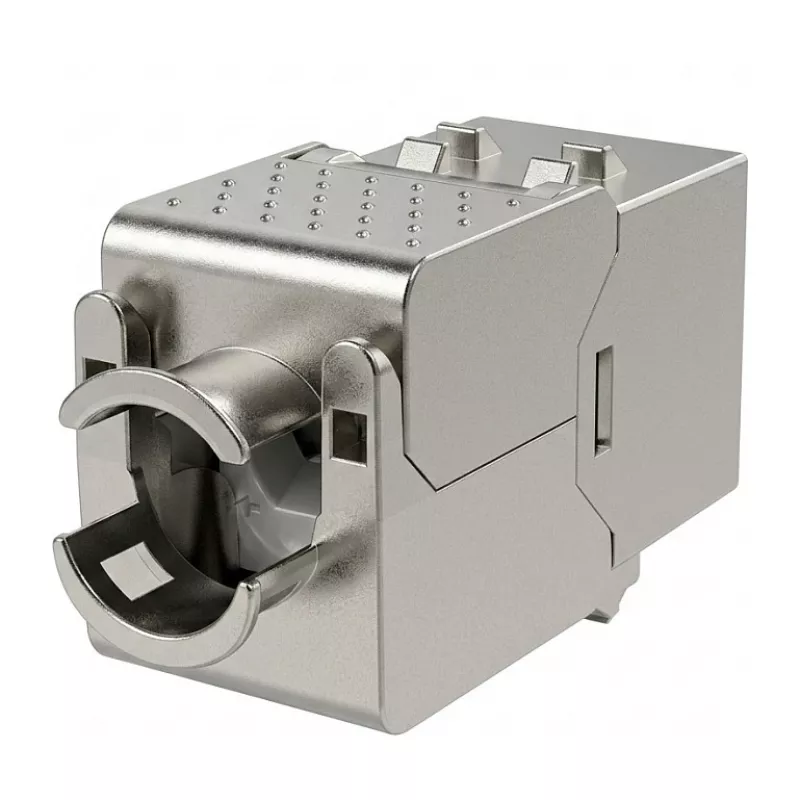

The EFB RJ45 Keystone Slimline module is a high-performance Cat.6A shielded keystone jack designed for 10 Gigabit Ethernet networks. Its die-cast zinc housing provides exceptional durability and EMI protection, making it ideal for demanding data center and enterprise environments.

Advantages

This keystone module offers tool-free LSA termination for quick and reliable installation. The slimline design saves space in high-density patch panels and faceplates. Gold-plated contacts ensure optimal signal integrity and corrosion resistance. It supports Power over Ethernet (PoE/PoE+/PoE++) for powering devices like IP cameras and wireless access points.

Suitable for

• Data centers requiring high-speed 10GBASE-T connectivity
• Enterprise LAN cabling infrastructure
• Structured cabling systems for Cat.6A networks
• Applications needing shielded connections to reduce electromagnetic interference

Key specifications

• Connector Type: RJ45
• Module Type: Keystone Jack
• Performance Category: Cat.6A (Category 6A)
• Shielding: Shielded (FTP/STP)
• Housing Material: Die-cast zinc
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: 500 MHz
• Wiring Standard: TIA/EIA 568A/B (color-coded)
• Termination Type: LSA (IDC) tool-free
• Contact Plating: Gold-plated contacts (50µ" gold over nickel)
• Compatibility: Standard Keystone ports (19.2 x 14.9 mm)
• Design: Slimline
• PoE Support: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Conductor Gauge: AWG 22-24 (solid and stranded)
• Insertion Cycles (RJ45): >750
• Re-termination Cycles (IDC): >20
• Operating Temperature: -10°C to +60°C
• Certifications: RoHS, REACH, ISO/IEC 11801, EN 50173
• Application: Patch panels, wall plates, surface mount boxes
• Mounting Type: Snap-in

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding of the cabling system. This module is suitable for both solid and stranded conductors (AWG 22-24).
