EFB Elektronik ferriittirengassydän 10,0 mm musta neliö

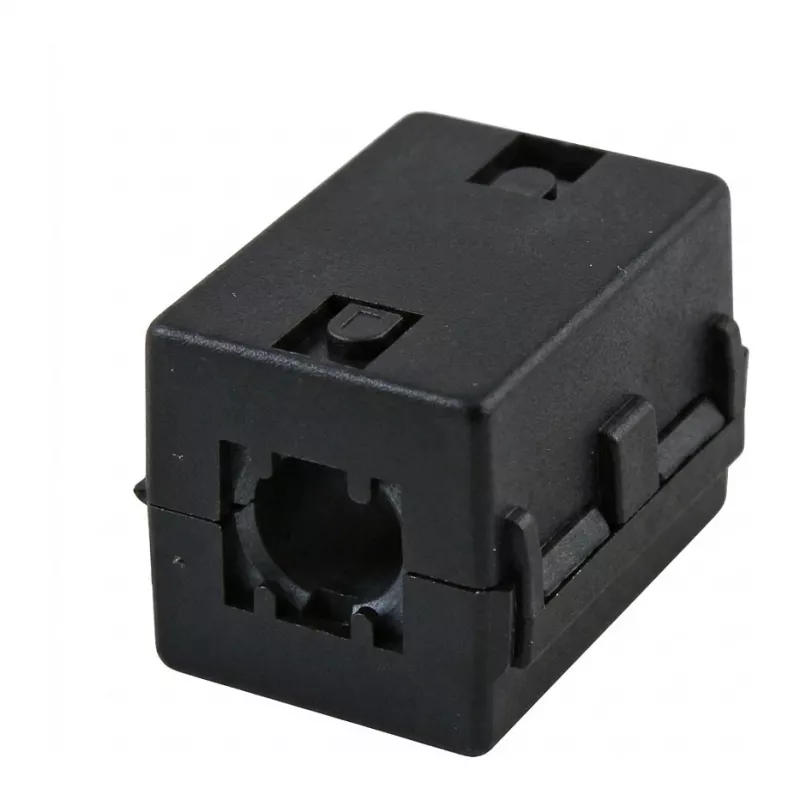

The EFB Elektronik Ferrite Ring Core 10.0 mm Black Square is a high-quality split ferrite core designed for effective EMI/RFI suppression on cables up to 10.0 mm in diameter. Its clip-on design allows for tool-free installation, making it ideal for reducing high-frequency noise in electronic systems.

Advantages

This ferrite core offers excellent impedance characteristics: 100 Ω at 25 MHz and 150 Ω at 100 MHz, ensuring reliable noise suppression. The square-edged outer profile provides a secure fit, and the black plastic housing is durable and RoHS compliant. Operating temperature range from -25°C to +85°C ensures suitability for various environments.

Suitable for

• Reducing electromagnetic interference on data, signal, and power cables
• Use in consumer electronics, industrial equipment, and telecommunications
• Tool-free installation on cables with a maximum diameter of 10.0 mm

Key specifications

• Component Type: Ferrite Core
• Core Design: Split (Clip-on)
• Cable Compatibility (Max Diameter): 10.0 mm
• Core Material: Ferrite
• Color: Black
• Outer Profile: Angular / Square-edged
• Primary Function: EMI/RFI Suppression
• Impedance @ 25 MHz: 100 Ω
• Impedance @ 100 MHz: 150 Ω
• Mounting Method: Clip-on
• Operating Temperature Range: -25°C to +85°C
• RoHS Compliance: Yes
• Housing Material: Plastic
• Recommended Application: Reducing high-frequency noise on cables
• Installation Type: Tool-free
• Internal Diameter: 10.0 mm

Recommendations

For optimal performance, place the ferrite core as close as possible to the noise source or at the cable end. Suitable for use with USB, HDMI, Ethernet, and other signal cables.
