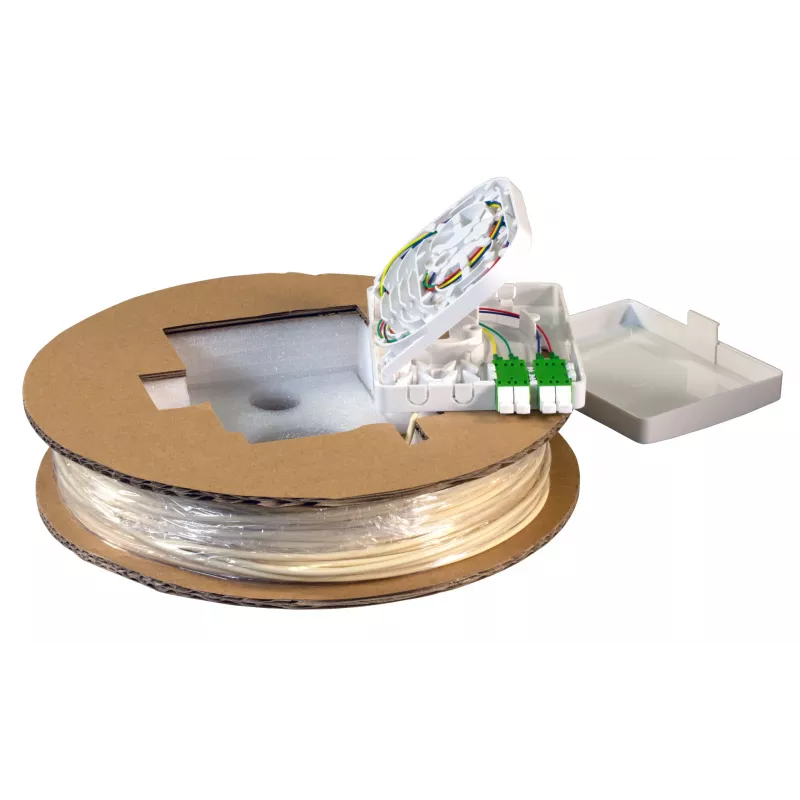

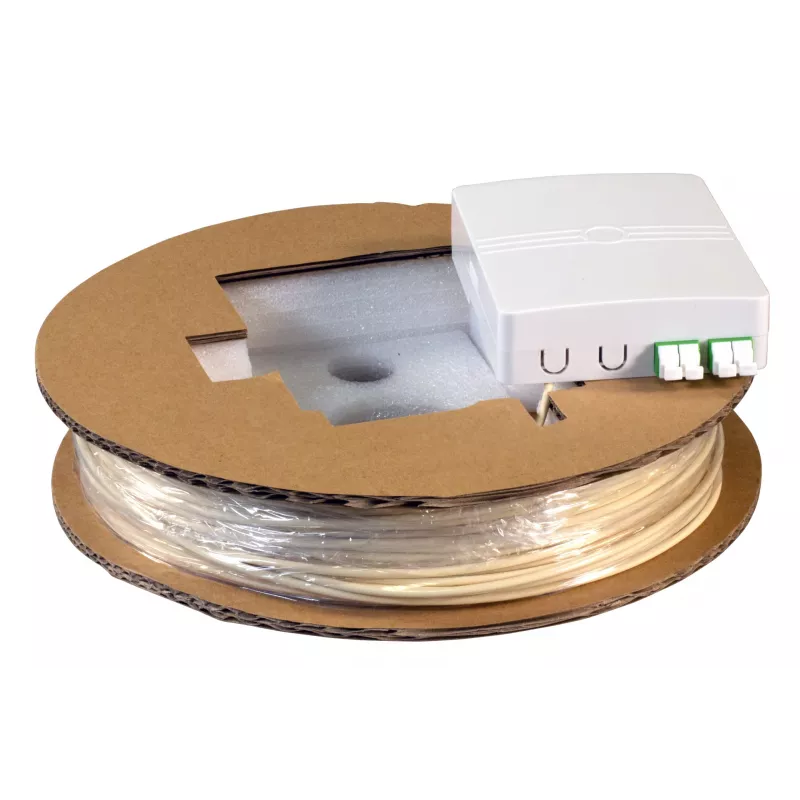

EFB Elektronik FTTX Compact Box esivalmistettu, 2xLC/APC duplex, G.657.A2, 20m

The EFB Elektronik FTTX Compact Box is a pre-terminated fiber optic wall outlet designed for FTTH, FTTB, and FTTO applications. It features 2xLC/APC duplex connectors and a 20-meter bend-insensitive singlemode cable (G.657.A2), ensuring reliable high-speed data transmission.

Advantages

This compact box simplifies fiber optic installation with its pre-assembled design, reducing on-site termination time and minimizing signal loss. The bend-insensitive fiber allows for flexible routing in tight spaces, while the LSZH jacket ensures safety in indoor environments.

Suitable for

• Fiber to the Home (FTTH) installations
• Fiber to the Building (FTTB) networks
• Fiber to the Office (FTTO) connectivity
• Wall-mounted fiber termination points

Key specifications

• Product Type: FTTX Compact Box / Fiber Optic Wall Outlet
• Fiber Type: Singlemode, G.657.A2 (Bend-insensitive)
• Connector: 2xLC/APC Duplex
• Total Fibers: 4
• Cable Length: 20 meters
• Insertion Loss: < 0.3 dB
• Return Loss: > 60 dB
• Operating Temperature: -20°C to +70°C
• Housing Material: ABS Plastic, White
• Protection Class: IP20

Recommendations

For optimal performance, ensure proper cable management and avoid sharp bends. This product is ideal for last-mile fiber connections in residential and commercial buildings.
