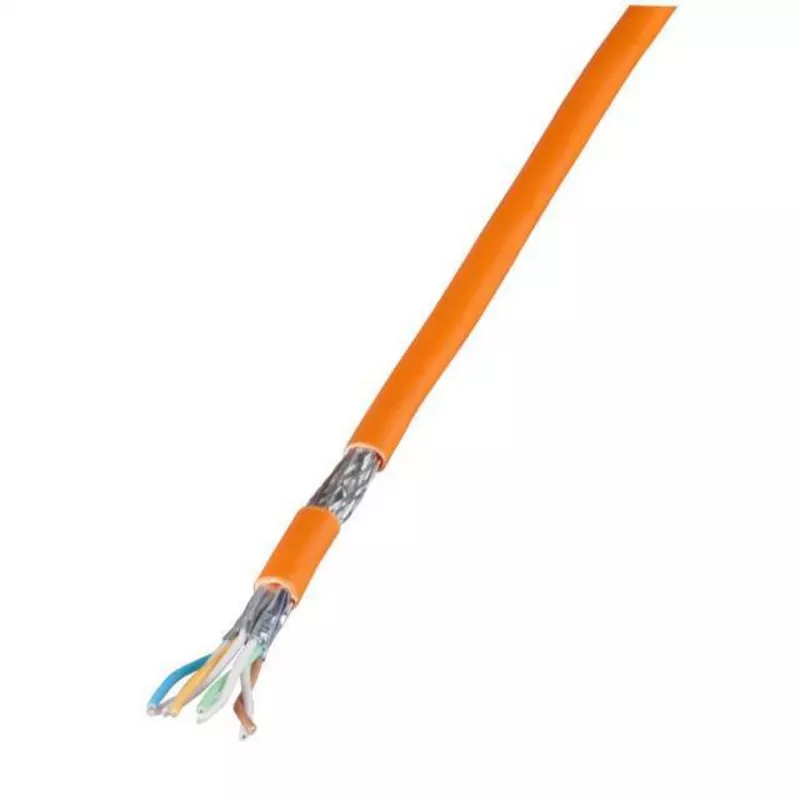

EFB Elektronik INFRALAN Cat.7 1000 AWG23 S/FTP 4P CPR Eca oranssi 500m

The EFB Elektronik INFRALAN Cat.7 1000 AWG23 S/FTP 4P CPR Eca Orange 500m is a high-performance network cable designed for demanding data center and enterprise applications. With Category 7 performance and S/FTP shielding, it ensures reliable 10 Gigabit Ethernet transmission over long distances.

Advantages

This cable offers superior protection against electromagnetic interference (EMI) thanks to its S/FTP construction (pairs in metal foil plus overall braid screen). The AWG23 bare copper conductors provide excellent signal integrity and low attenuation. The LSZH jacket ensures safety in plenum spaces by emitting low smoke and zero halogen in case of fire.

Suitable for

• 10GBASE-T networks requiring high bandwidth and low latency
• Data centers, server rooms, and industrial environments
• Structured cabling systems where CPR Euroclass Eca compliance is required
• Long-distance horizontal and backbone cabling

Key specifications

• Cable Category: Cat.7
• Shielding: S/FTP (PiMF)
• Frequency Bandwidth: 1000 MHz
• Conductor Gauge: AWG23
• Number of Pairs: 4
• Conductor Material: Bare Copper
• Jacket Material: LSZH
• CPR Euroclass: Eca
• Cable Color: Orange
• Cable Length: 500 m
• Outer Diameter: 7.2 mm
• Characteristic Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -20°C to +60°C
• Installation Temperature: 0°C to +50°C
• Packaging: Cable Drum
• NVP: 79%
• Min. Bending Radius (Installation): 8 x Outer Diameter

Recommendations

For optimal performance, use with Category 7 compatible connectors and ensure proper grounding of the shield. Suitable for indoor installations where CPR Eca classification is required.
